Summary of Contents for Microsensor MPM4706

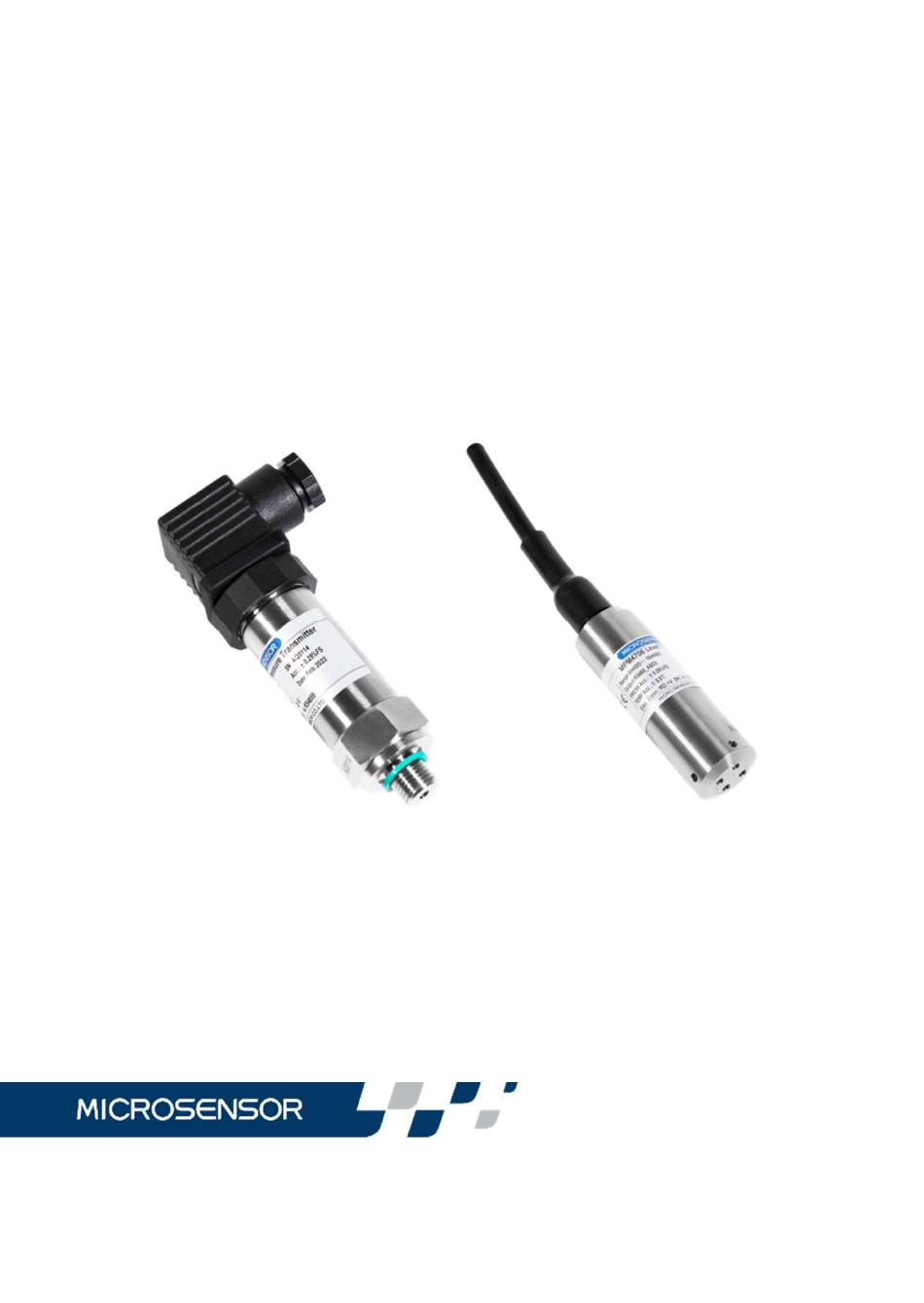

- Page 1 MPM4706/4736 Operation Manual...
- Page 2 Our company reserves the modification right for this operation manual due to renovation of production technology and craftwork. If some information is changed, no more notice will be edited. Please pay attention to the latest version. Our company also reserves the right of final explanation for this manual. Version: V1.0...
-
Page 3: Specification
10uA. Specification Measured range: -1bar...0bar~0.1bar...1000bar (MPM4736) 0 mH O ~1 mH O...200mH O(MPM4706) Over pressure: ≤2 times FS or 1100bar(Min. value is valid) Pressure Type: guage, absolute, sealed gauge(MPM4736) - Page 4 Power supply: 3.6V~28V DC Output signal: RS485 interface, MODBUS RTU/ ASC II Operation temperature: -30℃~80℃(MPM4736 4-pin Plug and MPM4736 7-pin Plug) -20℃~70℃(MPM4736 and MPM4706 cable material: PE, PVC) -20℃~80℃(MPM4736 and MPM4706 cable material: PUR) Storage temperature: -40℃~85℃(MPM4736 4-pin Plug and MPM4736 7-pin Plug) -20℃~85℃(MPM4736 cable and MPM4706)
-
Page 5: Electrical Connection
See dimension below 4× 3EQS MPM4706 SW27 SW27 SW27 M20×1.5 M20×1.5 M20×1.5 B1 4-pin Angular B2 Cable outlet B3 7-pin Aviation Connector Model model plug model MPM4736 Electrical Connection 4.1 Transmitter electrical connection diagram see below... -
Page 6: Installation Notes
Table 1. Table 1 Electrical Connection MPM4736 Angular Connection Cable 7-PIN Connector outlet/MPM470 Aviation Plug Pin Code Black RS485B White RS485A Yellow (Green) 4.2 Installation Notes The gauge pressure type submersible level transmitter includes a plastic vent tube which connects the back-pressure cavity of the gauge sensor to the atmosphere. - Page 7 The MS Setonline communication software can be used to read the basic information (including level range and temperature compensation range, version, etc.) of the transmitter with RS485 interface, display the actual level value, set the new zero point, configure the analog output, and set the instrument address with the assistance of a RS485 conversion module.
- Page 8 a) Connect power to the transmitter correctly in accordance with the Table 1 connection diagram in Section 4.1. b) Then connect the RS485 communication line with the RS485 communication module as per the diagram of Table 1 in Section 4.1. c) Following the above 2 steps, connect the RS485 module to the computer, then run the "47XX"...
- Page 9 output, for example: a Gauge pressure sensor should display "0" pressure in the atmospheric environment, but the actual reading may be greater than or less than "0". The user can click " Zero" button to zero the transmitter, the reading will be changed to "0" after the Zero adjustment.
- Page 10 c) Before operation, it is recommended to use the "47XX" host computer on the computer to read the parameters of the transmitter to ensure that the product does not have any communication problem, and make sure the address and other parameters of the product are proper as well.
- Page 11 5.3 Storage The transmitters storage temperature range should be within -40℃~85℃ (MPM4736 4-pin Plug and MPM4736 7-pin Plug) -20℃~85℃ (MPM4736 cable and MPM4706) with the relative humudity level less than 85%, and there is no presence of corrosive gases. Responsibility Micro Sensor products are warranted for a period of one year commencing from the date of shipment to the original purchaser.
