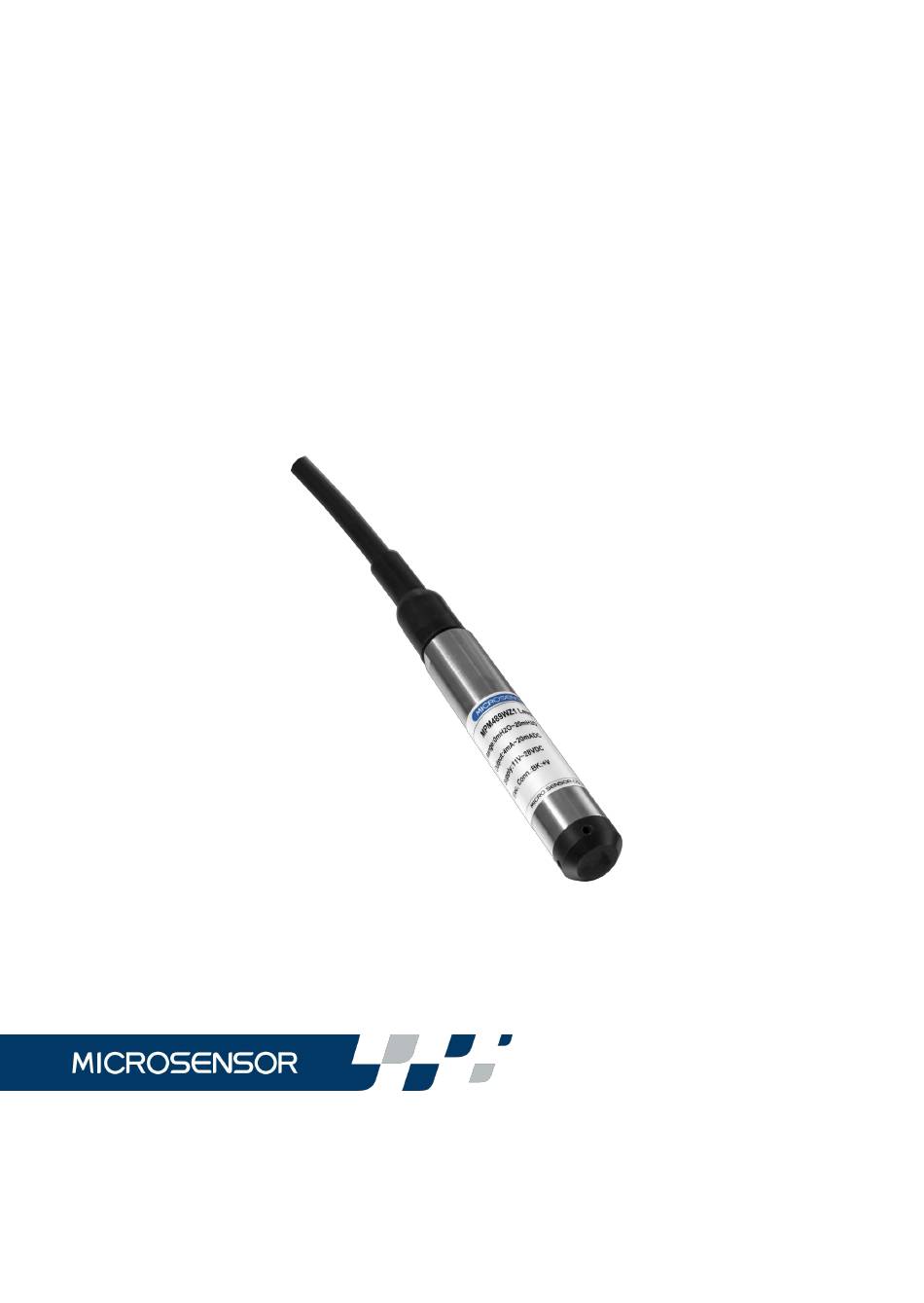

- Page 1 MPM489WZ1 Operation Manual V1.0...
- Page 3 Thank you very much for selecting Micro Sensor’s product, please carefully read this operation manual before using the product. 1 Introduction MPM489WZ1 is a Φ19mm diameter fully sealed submersible level transmitter based on diffused-silicone principle. It consists of a high stable and reliable piezoresistive pressure sensing element and the special PCB component as well as the stainless steel housing.
-
Page 4: Specification
can be widely used for liquid level measurement and control in fields of petroleum, chemi-industry, medicine, metallurgy, power station, mining, urban water supply, drainage and hydrology survey, etc. 3 Specification Pressure Range: 10m, 20m, 50m, 100m,200mH Overpressure: 1.5 times FS Accuracy: ±0.5%FS Stability: Range＞20mH O，... - Page 5 Cable length: the maximum length is 300m. Figure 1 5.2 Connection Box Dimension(see Figure 2). Connection box ： Please note it in the order if the connection box is required. Indicator: Connection box Ye is available with the indicator upon the customer request.
-
Page 6: Electrical Connection
Connection box Yc Figure2 6 Electrical Connection 6.1 Wiring Wire Color Definition Black 0V/+OUT 6.2 Electrical connection for 4mA~20mA DC output transmitter 6.3 Electrical connection for transmitter with connection box:... - Page 7 There is a terminal connection board inside the transmitter connection box, and their definition is indicated below. OV/+OUT red black 6.4 Notes a) There is a plastic tube in the transmitter special cable; the back pressure cavity of gauge sensor is connected to atmosphere by this tube.
-
Page 8: Installation
Please be sure the cable casing and rubber sheath are well protected. 7.2 Enclosed Shipment When delivery, the transmitter includes: MPM489WZ1 Level Transmitter PE Cable(connected with transmitter) the ordered length Connection Box（connected with cable） comply with the order Indicator（in connection box Ye）... - Page 9 a) Whether the static pressure produced by the liquid at installation place exceeds the transmitter FS or not. b) Whether the measuring liquid is compatible with the transmitter construction material or not. Whether the measuring liquid can jam the holes on the protection cap or not.
- Page 10 Figure 3 Figure 4 8.2.2 Installation in Flowing Water (e.g. river channel, reservoir area, etc.) The water-calming equipment are required. Method one: Insert a steel tube in the water channel (see Figure 5). The steel tube wall should be thicker, and several holes should be made at different heights on the tube to damp waves and clear the water pressure influence.
- Page 11 Method three: see Figure 7. This method can not only clear water flowing pressure and wave influence, but also filter the sand and mud. Figure 7 9 Operation、Maintenance and Fault Diagnosis 9.1 Operation a) The customer could operate the transmitter without adjustment. b) Please be sure that the installation and electrical connection are correct.
- Page 12 9.2 Maintenance MPM489WZ1 Level Transmitter does not need to be maintained regularly, but please pay attention to items in the below for better operating effect and reliability. a) Check wire connection is reliable or not, and the cable is broken and old or not.
- Page 13 10 Ordering Note a) The pressure range of transmitter should not be less than the max. static pressure of the measured level. The length of cable should be reserved enough. b) The supply power and digital display indicator can be provided if required, please note in the order.
