Sunjoy D-SC002PAL Assembly Intruction
  1. Manuals
  2. Brands
  3. Sunjoy Manuals
  4. Outdoor Furnishing
  5. D-SC002PAL
  6. Assembly intruction
Sunjoy D-SC002PAL Assembly Intruction

Sunjoy D-SC002PAL Assembly Intruction

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Warning

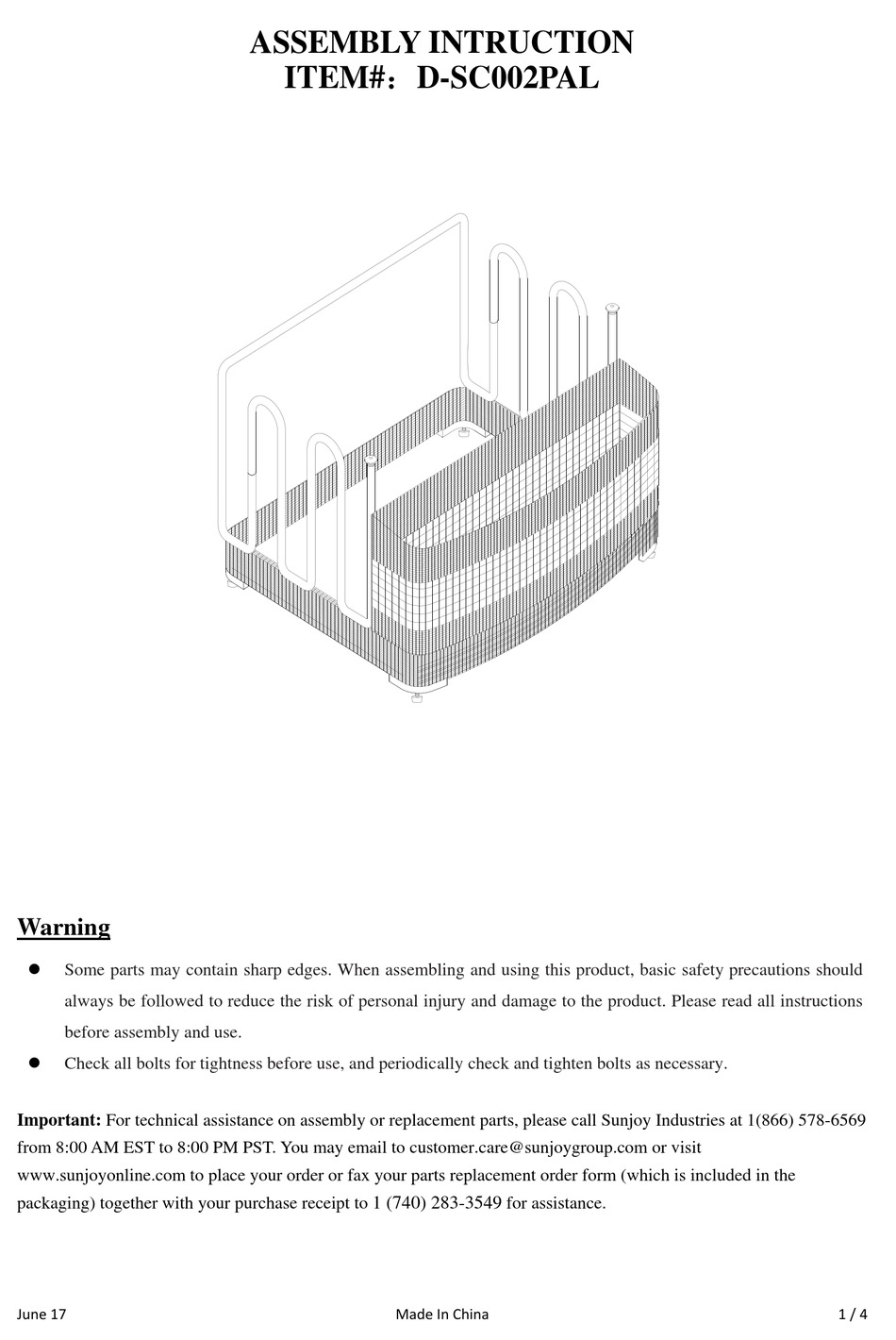

Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should
always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions
before assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569
from 8:00 AM EST to 8:00 PM PST. You may email to customer.care@sunjoygroup.com or visit
www.sunjoyonline.com to place your order or fax your parts replacement order form (which is included in the
packaging) together with your purchase receipt to 1 (740) 283-3549 for assistance.
June 17
ASSEMBLY INTRUCTION
ITEM#：D-SC002PAL
Made In China
  1 / 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-SC002PAL and is the answer not in the manual?

Questions and answers

Related Manuals for Sunjoy D-SC002PAL

Summary of Contents for Sunjoy D-SC002PAL

  • Page 1 Check all bolts for tightness before use, and periodically check and tighten bolts as necessary. Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569 from 8:00 AM EST to 8:00 PM PST. You may email to customer.care@sunjoygroup.com or visit www.sunjoyonline.com to place your order or fax your parts replacement order form (which is included in the...
  • Page 2 PARTS LIST Label Part Number Description Image of Part SC0002XXX01 Rear tube SC0002XXX02 Curved tube SC0002XXX03 Basket SC0002XXX04 Base HARDWARE PACK Label Part Number Description Image of Part SM06015C M6x15mm bolt SM06050C M6x50mm bolt VD06C M6 washer SM06035C M6 x35mm bolt June 17 ...
  • Page 3 ASSEMBLY STEPS Fig.1: Insert the lower end of Rear tube (A) into the tube of base (D), fasten them with Bolt (AA) and washer (CC). Fig.2: Insert the curved tube (B) into the upper end of rear tube (A) , then insert the lower ends of curved tube (B) into the base (D), fasten it by using M6x15 bolts (AA) and washers (CC).
  • Page 4 Care & Maintenance:  Before using, clean the product completely with a soft dry towel.  When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse thoroughly and dry completely. Do not use strong detergent or abrasive cleaners. ...
