FortiSwitch Rugged 424F POE
FSR-424F-POE
QuickStart Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FortiSwitch Rugged 424F POE and is the answer not in the manual?

Questions and answers

Related Manuals for Fortinet FortiSwitch Rugged 424F POE

Summary of Contents for Fortinet FortiSwitch Rugged 424F POE

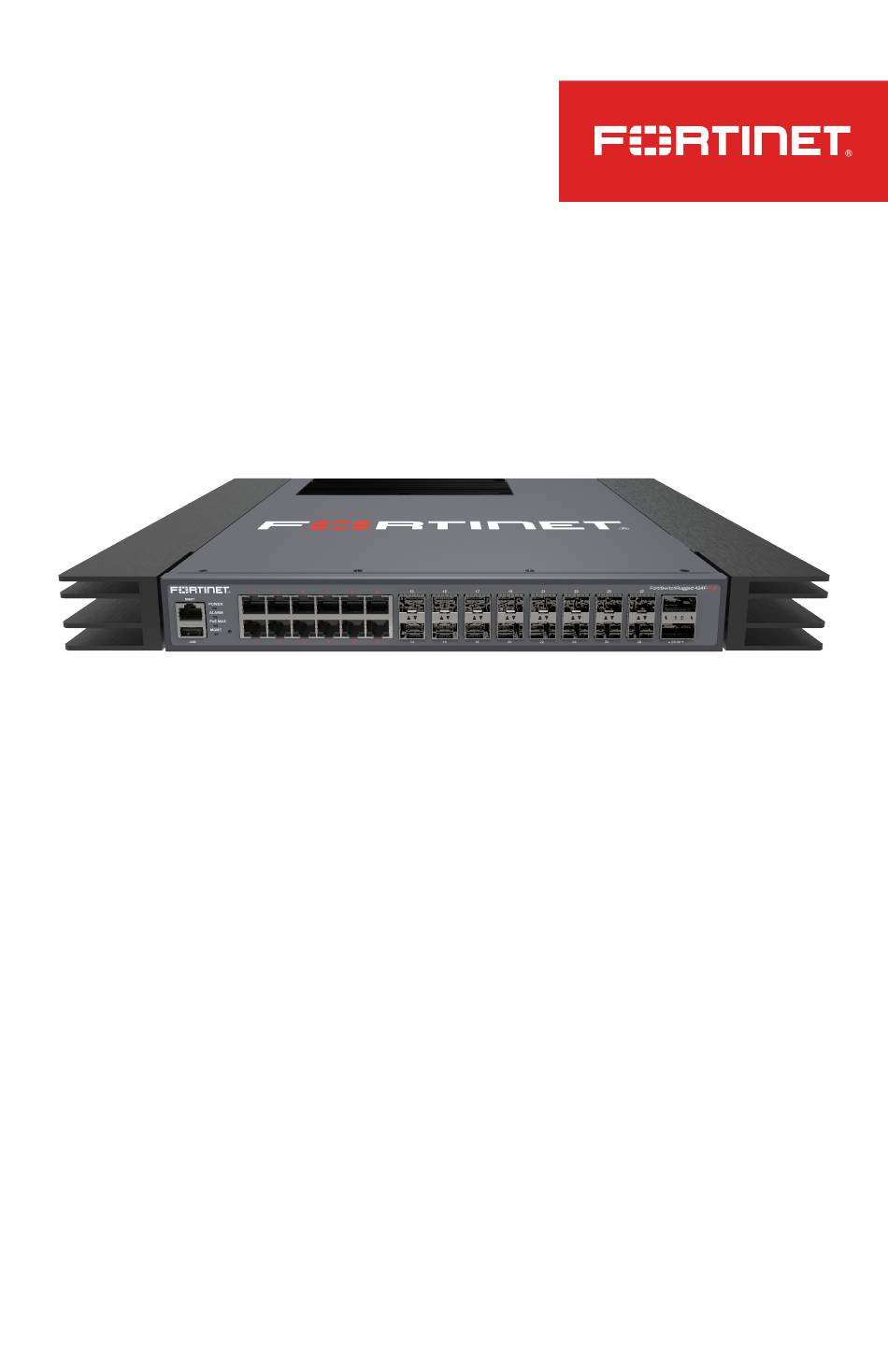

  • Page 1 FortiSwitch Rugged 424F POE FSR-424F-POE QuickStart Guide...

  • Page 2: Before You Begin

    Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests.

  • Page 3: Package Contents

    The Essentials Package Contents Default Logins FortiSwitch Rugged 424F POE FSR-424F-POE https://192.168.1.99 Username: admin Password: leave blank Admin Guide For detailed and up-to-date Getting Started guide, setup and configuration FortiSwitch Device QuickStart Guide information, refer to the Admin Guide on https://docs.fortinet.com/...

  • Page 4: Power Connection

    Power Connection The FSR-424F-POE supports a redundant power option. Connect to separate independent power sources for system redundancy. Warning: • This product is intended to be UL Listed supplied by a Power Adapter or DC power source which output complies with provides double/reinforced insulation from the AC mains: ambient temperature 75°C maximum, output rating 18VDC to 40VDC, 6.5A Max and 41VDC to 125VDC, 15A Max •...

  • Page 5: Setup Options

    Setup Options Set up your Fortinet device locally or use cloud management mode. FortiLink FortiGate Port FortiSwitch Port MGMT Ethernet Cable Management Computer Ethernet Cable Login to the FortiGate and go to WiFi & Switch Controller -> FortiLink Interface Note: For static IP configuration, use 192.168.1.1 with subnet mask 255.255.255.0...

  • Page 6: Installation

    SFP Modules Dimensions Installation Top View Cage Socket Width 17.3in (440mm) Height 1.7in (44mm) Length 16.1in (410mm) Removal Cage Socket Bottom View Lock...

  • Page 7: Desktop Mount

    Desktop Mount Rack Mount 1.5in 1.5in 1.5in 1.5in Note: Place the device on a flat, clean and stable surface. Rack mount brackets may vary as shown above Note: The recommended clearance is 1.5 inches above and below the device. Caution: To avoid personal injury or damage to the device, it is recommended that two or more people mount the device on a rack.
  • Page 8 Front FSR-424F-POE Ports 13 to 24 (2.5G SFP+) MGMT (RJ45) default IP 192.168.1.99 Green: Link established at 2.5Gbps USB (USB A) USB 2.0 server port Flashing Green: Data activity Amber: Link established at 1Gbps Power POE Max (up to 421W) Flashing Amber: Data activity Green: Power on...
  • Page 9 Rear FSR-424F-POE CONSOLE (RJ45) CLI management computer interface Power Connector (Terminal Block) Redundant power inputs, 18VDC to 40VDC, 6.5A Max 41VDC to 125VDC, 15A Max Antenna Connector (SMA) Passive directional antenna connection...
  • Page 10 The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: Avertissement: Le matériel est conçu pour être installé dans un endroit où l’accès est restreint. 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： https://www.fortinet.com/bsmi CAUTION: Shock Hazard. Disconnect all power sources. ATTENTION: Risque d’électrocution. Débranchez toutes les sources d’alimentation.
  • Page 11 Fortinet.com...
