- Page 1 QuickStart Guide FortiGate 40F & 60F Series...
- Page 2 Copyright© 2019 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Table of Contents Product Series FortiGate 40F Series ..................6 3G4G Series ............10 FortiGate60F Series ................... 14 Installation Basic Connections ..................17 Wall Mount Option ..................18 Desktop Option ..................19 Rack/Rail Mount Option ................20 Setup Setup Options ..................... 21 GUI ...................... -
Page 4: Fortigate 40F Series

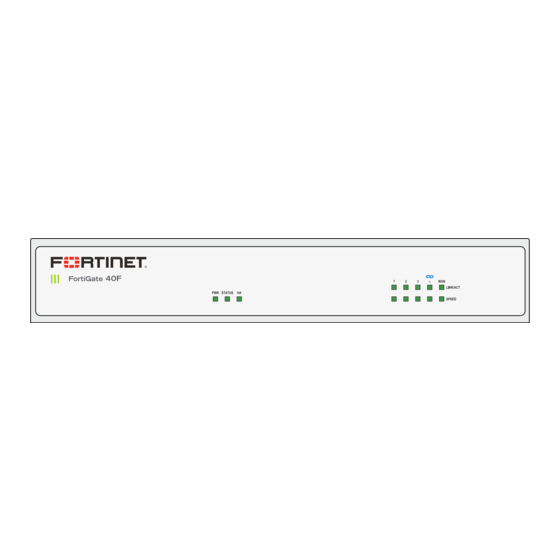

Package Contents - FG 40F Back Panel - FG 40F FortiGate 40F/ 41F Series Power 12V DC, 100-240V AC 50/60Hz adapter USB (USB A) USB 3.0 server port Console (RJ-45) CLI management computer interface QuickStart Guide WAN (RJ-45) 1 Gbps Ethernet interface FortiLink Port A (RJ-45) 1 Gbps Ethernet interface (FortiLink interface) Ethernet Ports 1 to 3 (RJ-45) 1 Gbps Ethernet connections Adapter Plugs... - Page 5 Front Panel - FG 40F FortiGate Green: The device is on LOGO Off: The device is off Green: Power is on Off: Power is off Green: Normal STATUS Flashing Green: Booting up Green: Operating in an HA cluster Amber: HA failover Off: Not in an HA cluster Green: Connected PORT...
- Page 6 Package Contents - FG 40F-3G4G Back Panel- FG 40F-3G4G 40F-3G4G 3G/4G 3G/4G 3G/4G FortiGate 40F/41F 3G4G Series Power 12V DC, 100-240V AC 50/60Hz adapter USB (USB A) USB 3.0 server port Console (RJ-45) CLI management computer interface QuickStart Guide WAN (RJ-45) 1 Gbps Ethernet interface FortiLink Port A (RJ-45) 1 Gbps Ethernet interface (FortiLink interface) Adapter Plugs DC Power Adapter...
- Page 7 Off: SVC is off Green: 3G4G is on NOTE: For more information on Wireless WAN Configuration, please refer to the FortiOS 3G/4G Flashing Green: 3G4G activity Handbook at docs.fortinet.com Off: 3G4G is off Green: Connected PORT Flashing Green: Transmitting data...
- Page 8 Package Contents - FG 60F Back Panel - FG 60F FortiGate 60F/61F Series Power 12V DC, 100-240V AC 50/60Hz adapter USB (USB A) USB 3.0 server port Console (RJ-45) CLI management computer interface QuickStart Guide WAN1 & WAN2 (RJ-45) 1 Gbps Ethernet interfaces DMZ (RJ-45) 1 Gbps Ethernet interface Power Cable 12V DC Power Adapter...
-
Page 9: Installation
Front Panel - FG 60F Installation Your FortiGate includes a wall mount kit and connection cables. Desktop installation, rack mount and slide-rail kits are also available. Basic Connections FortiGate Green: The device is on LOGO Off: The device is off Power Connection Power Outlet or UPS... -
Page 10: Wall Mount Option
Wall Mount Option Desktop Option Place the unit on a flat, clean and stable surface Mark the location of the holes using the mounting bracket Ensure there is at least 1.5in of clearance for adequate airflow 1.5in 1.5in Drill holes for the anchors Insert anchors... -
Page 11: Rack/Rail Mount Option
Setup Options Rack/Rail Mount Option Fortinet carries a variety of standard and custom rack and rail mount Set up your device locally or on the cloud. Choose one of the following accessories, including a 40F/60F rack mount tray kit, SP-RACKTRAY-02. -
Page 12: Gui
1. Connect port 1 to the Management Computer using the suplied Ethernet cable 5. When prompted to register, enter your Fortinet credentials 2. Enable DHCP or set the Management Computer’s subnet Static IP Address: 192.168.1.1 255.255.255.0 Subnet Mask: 3. Visit 192.168.1.99... -
Page 13: Fortigate Cloud
FortiGate Cloud FortiExplorer Cloud Key Setup 1. Log in to forticloud.com using your Fortinet credentials Download and launch the FortiExplorer iOS App 2. Tap Devices, then tap 3. Select FortiGate Cloud and log in using your Fortinet credentials Scan QR code... -
Page 14: Resources
Data bits: Up-to-date hardware and software guides Stop bits: https://docs.fortinet.com/fortigate Parity: None Flow Control: None Fortinet Customer Service & Support Console Port Access knowledge bases, resource libraries and contact support Management Computer https://support.fortinet.com/ Console Cable (available for purchase) Fortinet Video Tutorials 1. - Page 15 Enable two-factor authentication for remote access using mobile devices. Available for Make remote access simple. iOS and Android devices. Get extra tokens yourcompany.fortiddns.com instead of a hard-to- from your Fortinet reseller. remember IP address. Fortinet DDNS Service 2 FortiToken Mobile Licenses...
-
Page 16: Forticare Subscriptions
Services with FortiCare Subscriptions Global 24/7 support for your Fortinet hardware & software Get the latest product security updates and features. Stay with us and see the product evolve. Firmware Updates Use cellphone technology as backup Internet connection. We are always adding support for new third party 3G/4G+ devices. -
Page 17: Bundled Services With Forticare
Fortinet Bundled Services with FortiCare Enterprise Threat Fortinet Bundled Services Protection Protection Protection 24x7 24x7 24x7 FortiCare ✓ ✓ ✓ ✓ FortiGuard App Control Service ✓ ✓ ✓ ✓ FortiGuard IPS Service ✓ ✓ ✓ ✓ FortiGuard Advanced Malware Protection (AMP) ✓... -
Page 18: Fortinet Security Fabric
The Fortinet Security Fabric Network Operations Broad Visibility of the entire digital attack Fabric Fabric surface APIs Connectors Integrated AI-driven breach prevention across all Endpoint/Device Multi-Cloud devices, networks, and applications Protection Security Network Security Automated Operations, orchestration and Secure Application... -
Page 19: Fortigate Security Fabric Integration
FortiGate Security Fabric Integration Other Fabric Solutions Fabric Multi-Cloud Application Security APIs Security Security Operations Fabric Endpoint Secure Network Connectors Security Access Operations A large, growing, and open ecosystem ¡ FortiGate of partner integrations FortiAnalyzer FortiClient FortiWeb FortiAP FortiManager Virtual Firewall Fabric-Ready partners span a broad ¡... -
Page 20: Solution Spotlight: Secure Sd-Wan
Solution Spotlight: Secure SD-WAN Solution Spotlight: Secure SD-WAN NGFW with built-in, best-of-breed SD-WAN capability enables digital transformation at the enterprise branch. FORTINET FortiGate 61E v6.0.1 GA Build 5068 SOFTWARE DEFINED WIDE AREA NETWORK RECOMMENDED 2018 IaaS SD-WAN FortiGate 61E Branch Products FortiGate NGFW (at FortiOS 5.6 &... -
Page 21: Fortinet Security Processors
Most Certified in the Industry Fortinet Security Processors Fortinet is the only network security vendor to earn independent certifications across all core security technologies Specialized chip design delivers more Fortinet demonstrates our ability to consolidate multiple processing power security technologies while still meeting the highest standards of performance and accuracy. -
Page 22: Corporate Overview
We are a leading provider of network security appliances and the leader in Unified Threat Management, or UTM solutions. Fortinet is a worldwide leading provider of UTM appliances, with a 17% year over year growth in the UTM security appliance market... - Page 23 – Canada Herstellers entsorgen. IMPORTANT: The device must be professionally installed and must use the supplied Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet antenna. makes no assurances for such products. This Class B digital apparatus complies with Canadian ICES-003.
