Assembly Instructions
2-person assembly
79 ½"
48 ½"
PH #2
84 ¼"
Model #
Finish
MC1605
Brushed Walnut
Thank you for choosing Grain Wood Furniture, it is an honor to be in your home!
If you have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or
support@grainwoodfurniture.com

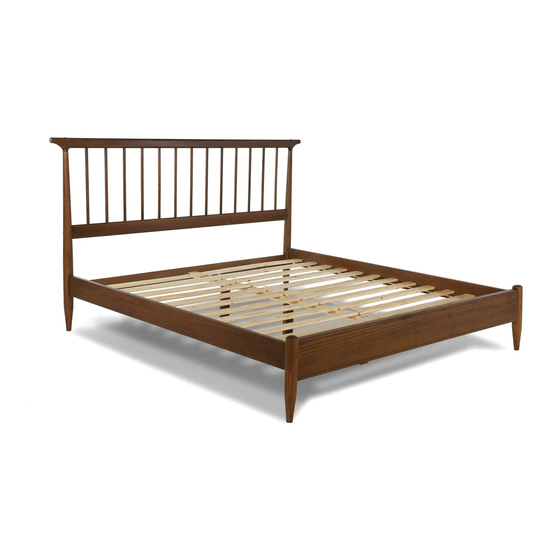

Mid Century
King Spindle Bed
Made in Brazil
REV - 02/2023
page 1/12
Advertisement
Related Manuals for GrainWood Brushed Walnut MC1605
Summary of Contents for GrainWood Brushed Walnut MC1605
- Page 1 Assembly Instructions 2-person assembly 79 ½" 48 ½" PH #2 84 ¼" Model # Finish MC1605 Brushed Walnut Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or support@grainwoodfurniture.com Mid Century...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member, as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ...
- Page 3 HARDWARE LIST 16 + 1 3,5x16 16 + 1 3,5x35 8 + 1 1/4" 1/4"x100/Ø13 1/4"x60/Ø13 7,0x70/Ø17 12 + 1 10x40 Ø20 10 + 4 ATTENTION WARNING: Before starting assembly For missing hardware please CHOKING HAZARD please verify the hardware contact us at Small parts, not for children.
- Page 4 Box A - 1 of 2 Box B - 2 of 2 Qty. Qty. Description Description Part # Part # Right headboard post Headboard crosspiece Left headboard post Headboard lower crosspiece Right footboard post Side rail Left footboard post Center rail Footboard cross piece Upper crosspiece Center support...
- Page 5 Tip: Use a hammer in case dowels are hard to install by hand. 10x40 1/4"x60 page 5/12...
- Page 6 upper side 3,5x16 Ø20 û ü 1/4"x60 page 6/12...
- Page 7 1/4"x60 1/4"x100 page 7/12...
- Page 8 page 8/12...
- Page 9 ü û 3,5x16 Flip the headboard to install support D43. 3,5x16 Ø20 page 9/12...
- Page 10 G8+B12 G8+B12 G8+B12 B12+G8 G8+B12 B12+G8 B12+G8 B12+G8 1/4" 1/4"x100 G8+B19 G8+B19 G8+B19 G8+B19 G8+B19 G8+B19 7,0x70 Ø20 page 10/12...
- Page 11 Attention: There are no predrilled holes for the A9 screws on part 09. 3,5x16 Attention: There are no predrilled holes for the A14 screws on parts 08 and 09. 3,5x35 page 11/12...
- Page 12 Tip: Do not install wood caps in the back of the headboard posts. Instead, save these 4 caps for eventual future use. Tip: Use a rubber mallet or a piece of wood to protect the finish when hammering the wood cap. page 12/12...
