Thank you for choosing Grain Wood Furniture, it is an honor to be in your home!
If you have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or

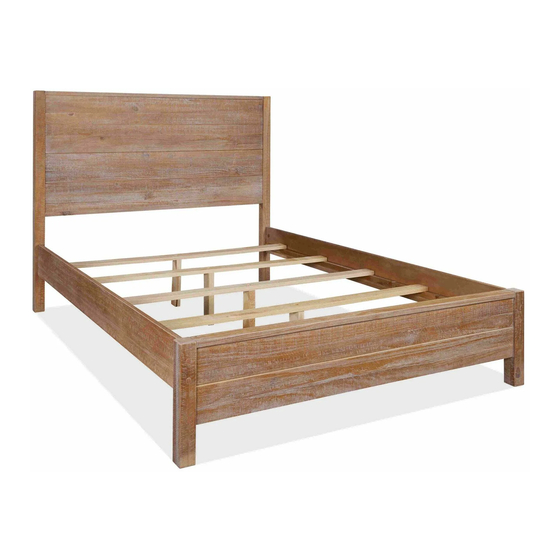

Montauk Collection
Queen Size Panel Bed
REV - 09/2021
Assembly Instructions
support@grainwoodfurniture.com
Made in Brazil
2-person assembly
51''
Model #
Finish
MT0311
Rustic Walnut
MT0312
Rustic Off-White
MT0320
Rustic Grey
MT0324
Driftwood
PH #2
page 1/8
Advertisement
Table of Contents
Related Manuals for GrainWood Montauk MT0311
Summary of Contents for GrainWood Montauk MT0311
- Page 1 Assembly Instructions 2-person assembly 51’’ PH #2 Model # Finish MT0311 Rustic Walnut MT0312 Rustic Off-White MT0320 Rustic Grey MT0324 Driftwood Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or support@grainwoodfurniture.com Montauk Collection...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ assembled. It is easier to move parts than to relocate the furniture after it is fully assembled.
- Page 3 HARDWARE LIST 3,5x16 3,5x35 1/4" 1/4"x90 1/4"x60 7,0x60 10x40 Ø 20x7 ATTENTION Before starting assembly please verify the hardware set is complete. For missing hardware please contact us at grainwoodfurniture.com/help WARNING: CHOKING HAZARD Small parts, not for children. To be assembled by an adult. page 3/8...
- Page 4 BOX 1 BOX 2 Qty. Qty. Description Description Part # Part # Headboard Panel Side Rails Left HeadBoard Post Slats Center Legs Right Headboard Post Footboard Panel Hardware Cover Strip page 4/8...
- Page 5 Tip: Use a hammer in case dowels are hard to install by hand. 10x40 1/4"x60 page 5/8...
- Page 6 Attention: There are no predrilled holes for the A9 screws on part 01. 3,5x16 1/4"x90 1/4" page 6/8...
- Page 7 G13+B4 G13+B4 G13+B4 G13+B4 1/4"x90 1/4" 7,0x60 page 7/8...
- Page 8 Attention: There are no predrilled holes for the A14 screws on part 03. 3,5x35mm The wood caps should be flush with the post surface TIP: Use a Rubber Mallet or a piece of wood to protect the finish when hammering the wood cap Ø...
