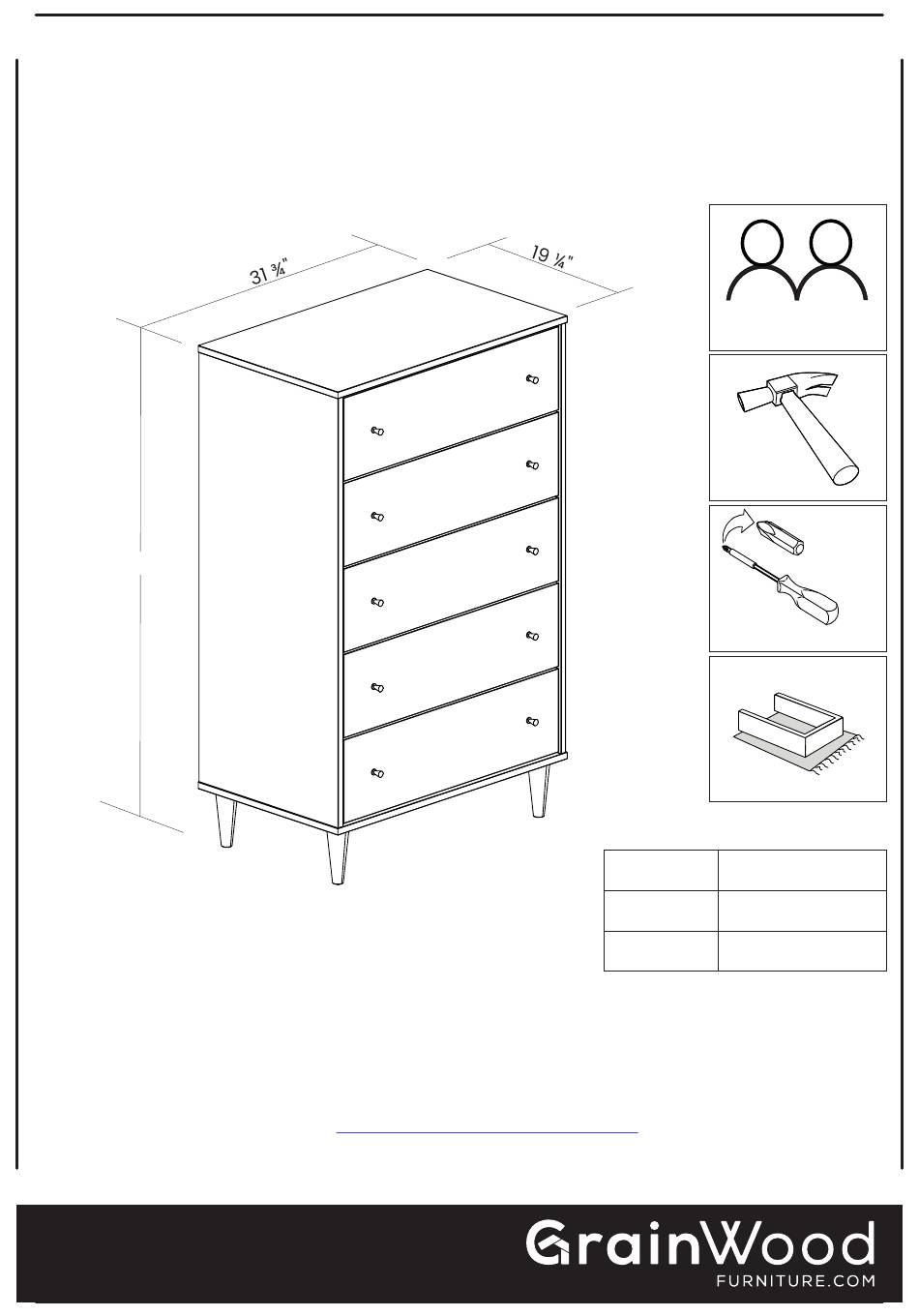

Assembly Instructions
2-person assembly
51 ¾"
PH #2
Model #
Finish
MC0703
Brushed White
MC0705
Brushed Walnut
Thank you for choosing Grain Wood Furniture, it is an honor to be in your home!
If you have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or
support@grainwoodfurniture.com
Mid Century
5-Drawer Chest
Made in Brazil
REV - 05/2022
page 1/16
Advertisement
Related Manuals for GrainWood MC0703
Summary of Contents for GrainWood MC0703
- Page 1 2-person assembly 51 ¾" PH #2 Model # Finish MC0703 Brushed White MC0705 Brushed Walnut Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ assembled. It is easier to move parts than to relocate the furniture after it is fully assembled.
-
Page 3: Hardware List
HARDWARE LIST ANTI-TIPPING RESTRAINT KIT 4,0x30 2 + 1 16 + 1 3,0x20 3,5x14 10 + 1 M4x25 8 + 1 4,0x45 1/4’’x40 40 + 2 6,0x10 56 + 3 8,0x30 4 + 1 5/16"x24x2 ATTENTION Before starting assembly please verify the hardware 10x10 set is complete. - Page 4 BOX A - 1 of 2 BOX B - 2 of 2 Qty. Qty. Description Description Part # Part # Right side Base Left side Drawer right side Foot Stabilizing panel Drawer Left side Rear panel Drawer back Back panel Drawer front Profile “H”...
- Page 5 Tip : Use a hammer in case dowels are hard to install by hand. C1 C1 C1 C1 8,0x30 page 5/16...
- Page 6 Glide wheels should be positioned towards the front and bottom of the side panel. 6,0x10 RIGHT Side page 6/16...
- Page 7 Glide wheels should be positioned towards the front and bottom of the side panel. 6,0x10 LEFT Side page 7/16...
- Page 8 G8+B25 G8+B25 G8+B25 G8+B25 1/4"x40 5/16"x24 Attention: There are no predrilled holes for the A1 screws on parts 02 and 03. 4,0x30 page 8/16...
- Page 9 Attention: There are no predrilled holes for the A1 screws on part 01. 4,0x30 Attention: There are no predrilled holes for the A40 screws on parts 02 and 03. 4,0x45 page 9/16...
- Page 10 Make sure back panels are perfectly aligned with side panels and top and there are NO gaps. û ü ü 10x10 G1 G1 û ü 10x10 page 10/16...
- Page 11 10x10 page 11/16...
- Page 12 ¼" Attention: There are no predrilled holes for the A4 and A40 screws on part 07. 3,5x14 4,0x45 10x10 3,5x14 page 12/16...
- Page 13 Attention: There are no predrilled holes for the A1 screws on part 08. 1" 4,0x30 page 13/16...
- Page 14 Flip the assembled drawer upside down to install glides. Drawer RIGHT Drawer LEFT 20 E17 6,0x10 page 14/16...
- Page 15 M4x25 Place the labeled drawer on the top position page 15/16...
- Page 16 ANTI-TIPPING RESTRAINT KIT Install against the furniture on the wall Anchors and screws are not included, choose best type based on your wall Install both parts F8 3,0x20 Tighten them together using the safety strap page 16/16...
