34"
Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you
have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or

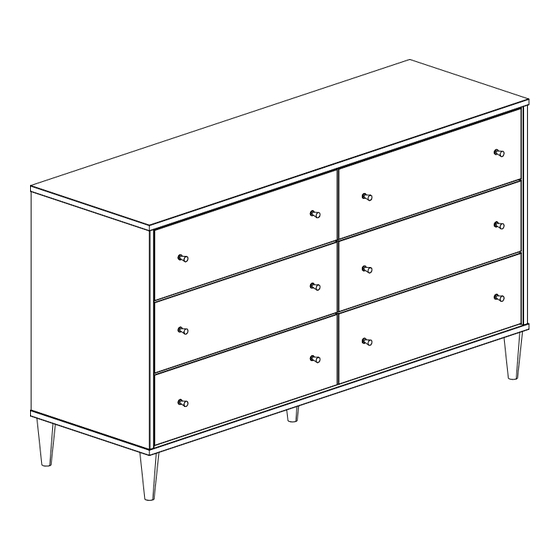

Mid Century
6-Drawer Dresser
REV - 12/2023
Assembly Instructions
support@grainwoodfurniture.com
Made in Brazil
2-person assembly
Model #
Finish
MCS0503
Brushed White
MCS0505 Brushed Walnut
PH #2
page 1/21
Advertisement
Related Manuals for GrainWood Mid Century MCS0503
Summary of Contents for GrainWood Mid Century MCS0503
- Page 1 Assembly Instructions 2-person assembly PH #2 34" Model # Finish MCS0503 Brushed White MCS0505 Brushed Walnut Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or support@grainwoodfurniture.com Mid Century...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ assembled. It is easier to move parts than to relocate the furniture after it is fully assembled.
- Page 3 HARDWARE LIST Ø25mm 4,0x30 20 + 2 3,5x14 18 + 1 532mm - 21" 3,5x16 12 + 1 M4x25 9 + 1 4,0x45 1/4’’x40 ANTI-TIPPING RESTRAINT KIT 48 + 3 2 + 1 6,0x10 3,0x20 3,0x20 66 + 4 8,0x30 5 + 1 5/16"x24x2 250 - 9 ³⁄...
- Page 4 BOX A - 1 of 2 BOX B - 2 of 2 Qty. Qty. Description Description Part # Part # Foot Right side Division Left side Drawer front Drawer right side Base Back panel Drawer Left side Drawer bottom Drawer back Drawer bottom support Hardware page 4/21...
- Page 5 Tip: Use a hammer in case dowels are hard to install by hand. C1 C1 8,0x30 page 5/21...
- Page 6 3,5x14 page 6/21...
- Page 7 Glide wheels should be positioned towards the front and bottom of the side panel. 6,0x10 RIGHT Side page 7/21...
- Page 8 Glide wheels should be positioned towards the front and bottom of the side panel. 6,0x10 LEFT Side page 8/21...
- Page 9 3,5x14 page 9/21...
- Page 10 Glide wheels should be positioned towards the front and bottom of the side panel. 6,0x10 RIGHT Side page 10/21...
- Page 11 180º Glide wheels should be positioned towards the front and bottom of the side panel. 6,0x10 LEFT Side page 11/21...
- Page 12 Attention: There are no predrilled holes for the A4 screws on parts 02 and 03. 3,5x14 180º Attention: There are no predrilled holes for the A4 screws on part 06. 3,5x14 page 12/21...
- Page 13 G8+B25 G8+B25 G8+B25 G8+B25 G8+B25 5/16"x24 1/4"x40 Attention: There are no predrilled holes for the A1 screws on part 01. 4,0x30 page 13/21...
- Page 14 Attention: There are no predrilled holes for the A40 screws on parts 02, 03 and 06. 4,0x45 Make sure back panels are perfectly aligned with side panels and top and there are no gaps. Gap present û No gap ü ü...
- Page 15 present û No gap ü 1" 4,0x30 Attention: There are no predrilled holes for the A1 screw on part 07. 10x10 page 15/21...
- Page 16 Attention: There are no predrilled holes for the A1 screw on part 07. 1" 4,0x30 10x10 page 16/21...
- Page 17 Attention: There are no predrilled holes for the A1 screws on part 08. 4,0x30 page 17/21...
- Page 18 Flip the assembled drawer upside down to install glides. Drawer RIGHT Drawer LEFT 24 E21 6,0x10 page 18/21...
- Page 19 Observe the correct orientation as shown below. ü û 12 E24 3,5x16 3,5x16 M4 x 25 page 19/21...
- Page 20 21) Place the labeled drawer in the top position page 20/21...
- Page 21 ANTI-TIPPING RESTRAINT KIT Install against the furniture on the wall Anchors and screws are not included, choose best type based on your wall Install both parts F8 3,0x20 Tighten them together using the safety strap page 21/21...
