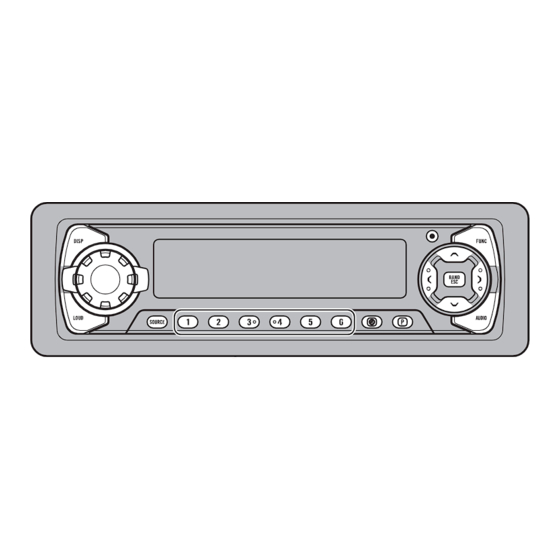

DEH-P6200
This product conforms to CEMA cord colors.
Le code de couleur des câbles utilisé pour ce produit est
conforme à CEMA.
Printed in Thailand
Imprimé en Thaïlande
<CRD3153-A/N> UC
<99K00F0P01>
Connecting the Units
<ENGLISH>
Note:
• This unit is for vehicles with a 12-volt battery and
• When an external power amp is being used with
negative grounding. Before installing it in a recre-
this system, be sure not to connect the blue/white
ational vehicle, truck, or bus, check the battery
lead to the amp's power terminal. Likewise, do not
voltage.
connect the blue/white lead to the power terminal
• To avoid shorts in the electrical system, be sure to
of the auto-antenna. Such connection could cause
disconnect the ≠ battery cable before beginning
excessive current drain and malfunction.
installation.
• To avoid short-circuiting, cover the disconnected
• Refer to the owner's manual for details on
lead with insulating tape. Especially, insulate the
unused speaker leads without fail. There is a possi-
connecting the power amp and other units, then
bility of short-circuiting if the leads are not insulat-
make connections correctly.
ed.
• Secure the wiring with cable clamps or adhesive
• To prevent incorrect connection, the input side of
tape. To protect the wiring, wrap adhesive tape
the IP-BUS connector is blue, and the output side
around them where they lie against metal parts.
is black. Connect the connectors of the same
• Route and secure all wiring so it cannot touch any
colors correctly.
moving parts, such as the gear shift, handbrake and
• If this unit is installed in a vehicle that does not
seat rails. Do not route wiring in places that get
have an ACC (accessory) position on the ignition
hot, such as near the heater outlet. If the insulation
of the wiring melts or gets torn, there is a danger of
switch, the red lead of the unit should be connected
the wiring short-circuiting to the vehicle body.
to a terminal coupled with ignition switch ON/OFF
operations. If this is not done, the vehicle battery
• Don't pass the yellow lead through a hole into the
may be drained when you are away from the vehi-
engine compartment to connect to the battery. This
cle for several hours. (Fig.1)
will damage the lead insulation and cause a very
dangerous short.
• Do not shorten any leads. If you do, the protection
circuit may fail to work when it should.
• Never feed power to other equipment by cutting
the insulation of the power supply lead of the unit
and tapping into the lead. The current capacity of
the lead will be exceeded, causing overheating.
• When replacing fuse, be sure to use only fuse of
ACC position
No ACC position
the rating prescribed on the fuse holder.
• Since a unique BPTL circuit is employed, never
wire so the speaker leads are directly grounded or
the left and right ≠ speaker leads are common.
• Speakers connected to this unit must be high-
• The black lead is ground. Please ground this lead
power types with minimum rating of 45 W and
separately from the ground of high-current prod-
impedance of 4 to 8 ohms. Connecting speakers
ucts such as power amps.
with output and/or impedance values other than
If you ground the products together and the ground
those noted here may result in the speakers
becomes detached, there is a risk of damage to the
catching fire, emitting smoke or becoming dam-
products or fire.
aged.
• If the RCA pin jack on the unit will not be used, do
• Cords for this product and those for other products
not remove the caps attached to the end of the con-
may be different colors even if they have the same
nector.
function. When connecting this product to another
• When this product's source is switched ON, a con-
product, refer to the supplied Installation manuals
trol signal is output through the blue/white lead.
of both products and connect cords that have the
Connect to an external power amp's system remote
same function.
control or the car's Auto-antenna relay control ter-
minal (max. 300 mA 12 V DC). If the car features
a glass antenna, connect to the antenna booster
power supply terminal.
Fig. 1

Advertisement

   Also See for Pioneer DEH-P6200

   Related Manuals for Pioneer DEH-P6200

   Summary of Contents for Pioneer DEH-P6200

  • Page 1

    • Refer to the owner’s manual for details on connecting the power amp and other units, then make connections correctly. DEH-P6200 • Secure the wiring with cable clamps or adhesive tape. To protect the wiring, wrap adhesive tape around them where they lie against metal parts.

  • Page 2

    Connecting the Units 7 When not connecting a rear speaker lead to a Subwoofer Front output IP-BUS input (Blue) Rear output Antenna jack This Product Multi-CD player IP-BUS cable (sold separately) Subwoofer output or Non Fading output Blue/white To system control terminal of the power amp or Auto-antenna relay control terminal Yellow/black (max.

  • Page 3

    • Because of the complexity of today’s technically advanced vehicle wiring sys- tems, we recommend that your DFS Alarm be installed ONLY by a professional Grounding Type Switch: Pioneer installer. Affix the included deterrent stickers to the inside of the front door windows. Description 7 White/yellow (DOOR SWITCH) ...

  • Page 4

    Installation Note: Removing the Unit (Fig. 9) (Fig. 10) • Before finally installing the unit, connect the • If installation angle exceeds 60° from horizontal, wiring temporarily, making sure it is all connected the unit might not give its optimum performance. up properly, and the unit and the system work (Fig.

  • Page 5

    Raccordements des appareils <FRANÇAIS> Remarque: • Cet appareil est destiné aux véhicules avec une • Quand la source de ce produit est positionnée sur batterie de 12 V, avec pôle négatif à la masse. ON, un signal de commande est sorti par le fil Avant de l’installer dans un véhicule de loisir, un bleu/blanc.

  • Page 6

    Raccordements des appareils 7 Lorsque l’on ne connecte pas de câble de liaison au haut-parleur d’extrêmes graves Sortie avant Entrée IP-BUS (Bleu) Sortie arrière Jack d’antenne Ce produit Lecteur de CD à chargeur (vendu Câble IP-BUS séparément) Sortie pour haut-parleur d’extrêmes graves, ou sortie sans atténuation Bleu/blanc...

  • Page 7

    • Etant donné la complexité du câblage des véhicules actuels, nous vous conseil- lons de faire installer l’alarme DFS UNIQUEMENT par un technicien agréé par Contacteur avec mise à la masse: Pioneer. Apposez les autocollants fournis sur la face intérieure des glaces avant. Description 7 Blanc/jaune (Contacteur de portière, DOOR SWITCH) ...

  • Page 8

    Installation Remarque: Dépose de l’unite (Fig. 9) (Fig. 10) • Avant de finaliser l’installation de l’appareil, con- • L’angle de l’installation, ne doit pas dépasser 60° necter temporairement le câblage en s’assurant que par rapport à l’horizontale, faute de quoi l’unité ne tout est correctement connecté...
