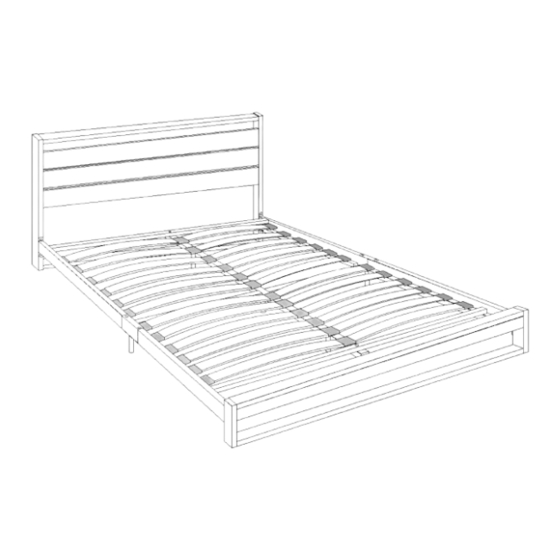

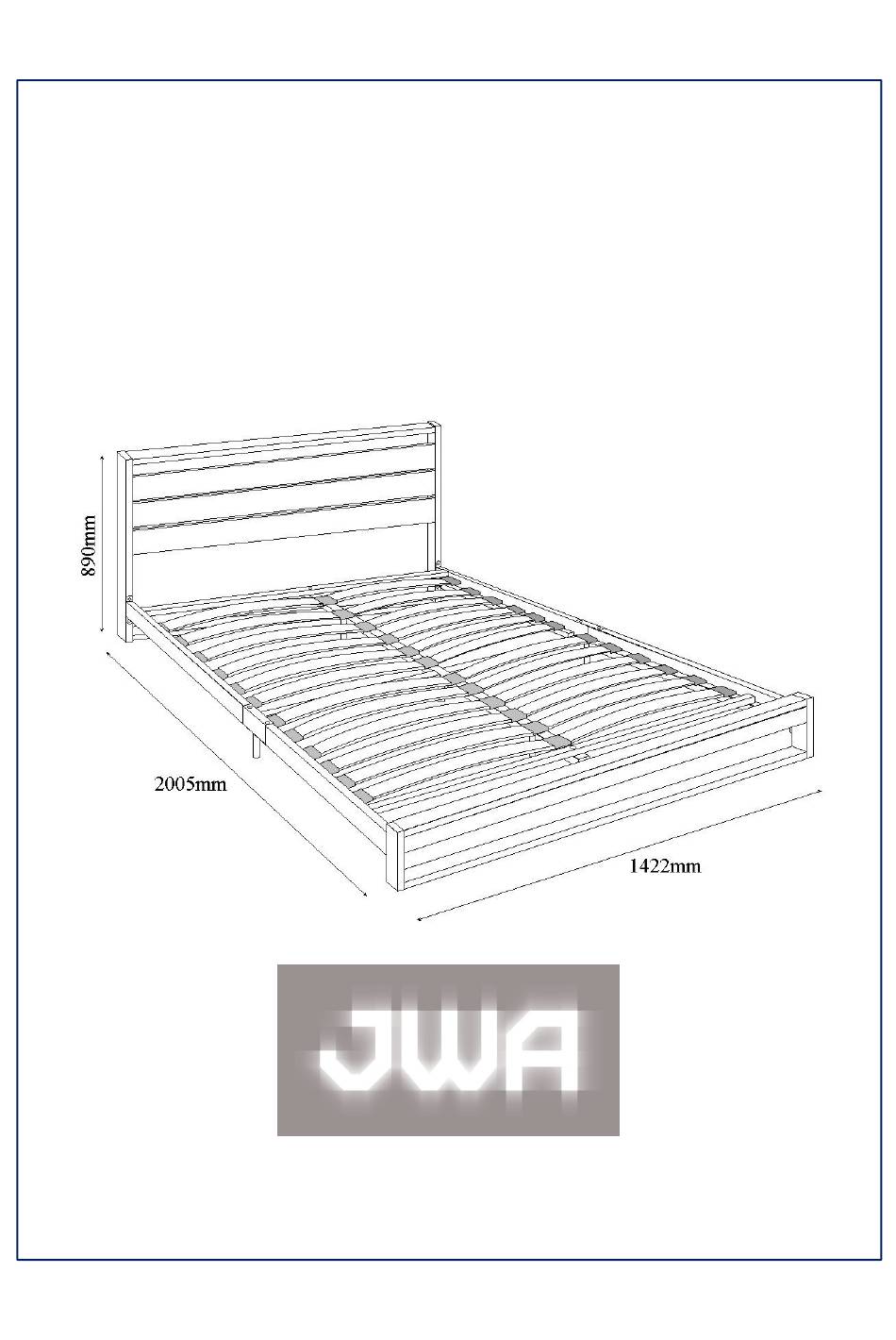

- Page 1 ASSEMBLY INSTRUCTION MARCEL DOUBLE BED 70576 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST Head Panel x 3pcs Centre Rail x 2pcs Foot Panel x 1pc Cross Bar x 2pcs Head Post x 2pcs Siderail Support Leg x 2pcs Head Rail x 2pcs Centre Rail Support Leg (U Bracket) x 2pcs Head Bar x 3pcs Centre Rail Support Leg x 1pc Footboard x 1pc Slat (678mm) x 24pcs... - Page 4 STEP 1: Prepare a protected surface with a blanket or cardboard. • Attach 2x head post(3) to the 2x head rail(4) and 3x head bar(5), • as shown below. Use 7x bolt(D) per post. Fasten with allen key(H). Attach 3x head panel(1) to the 3x head bar(5), follow the white •...
- Page 5 STEP 2: Attach the 2x supports(12) to the left siderail(7) and right • siderail(8), as shown below. Use 2x bolt(E) per leg, threaded from the top, and lock with nut(G). Fasten with allen key(H) and hold the nut with a pair of pliers. Connect a side rail to the head post and footboard.
- Page 6 STEP 3: Attach the supports(14) to the 2x centre rail(10), as shown below. • Use 2x bolt(A). Fasten with allen key(H). Attach the 2x supports(13) to the centre rail(10), as shown below. • Use bolt(C) per leg, threaded from the top. Fasten with allen key(H).
- Page 7 STEP 4: Attach 2x the cross bar(11) one side to the centre rail(10), as • shown below. Use 2x bolt(C) and lock with nut(G). Fasten with allen key(H) and hold the nut with a pair of pliers. Attach the cross bar(11) the other side to the side rail, as shown •...
- Page 8 STEP 5: Attach an end cap(16) onto every slat, 1 per slat(15). • Take 2x slats and cup the non capped end into either side of • the middle cap(17). Form 12x slat pairs. Attach the slat pairs to the bed as shown below. Push the caps •...
- Page 9 Assembly Is Complete...
-
Page 10: Product Care
PRODUCT CARE: FURNITURE / BED 1. When assembling your furniture / bed please ensure that you have checked the contents for all relevant parts. 2. When tightening bolts make sure that they are fully tightened but not forced. 3. When moving your fully assembled bed you must first remove the mattress and lift the frame into position, take care when lifting and always have two people handling the bed.
