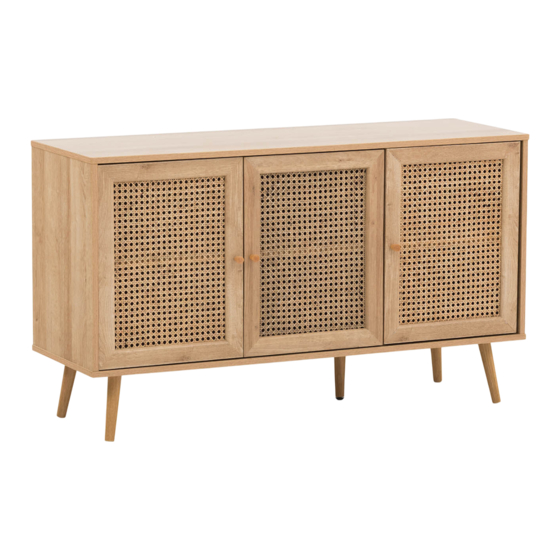

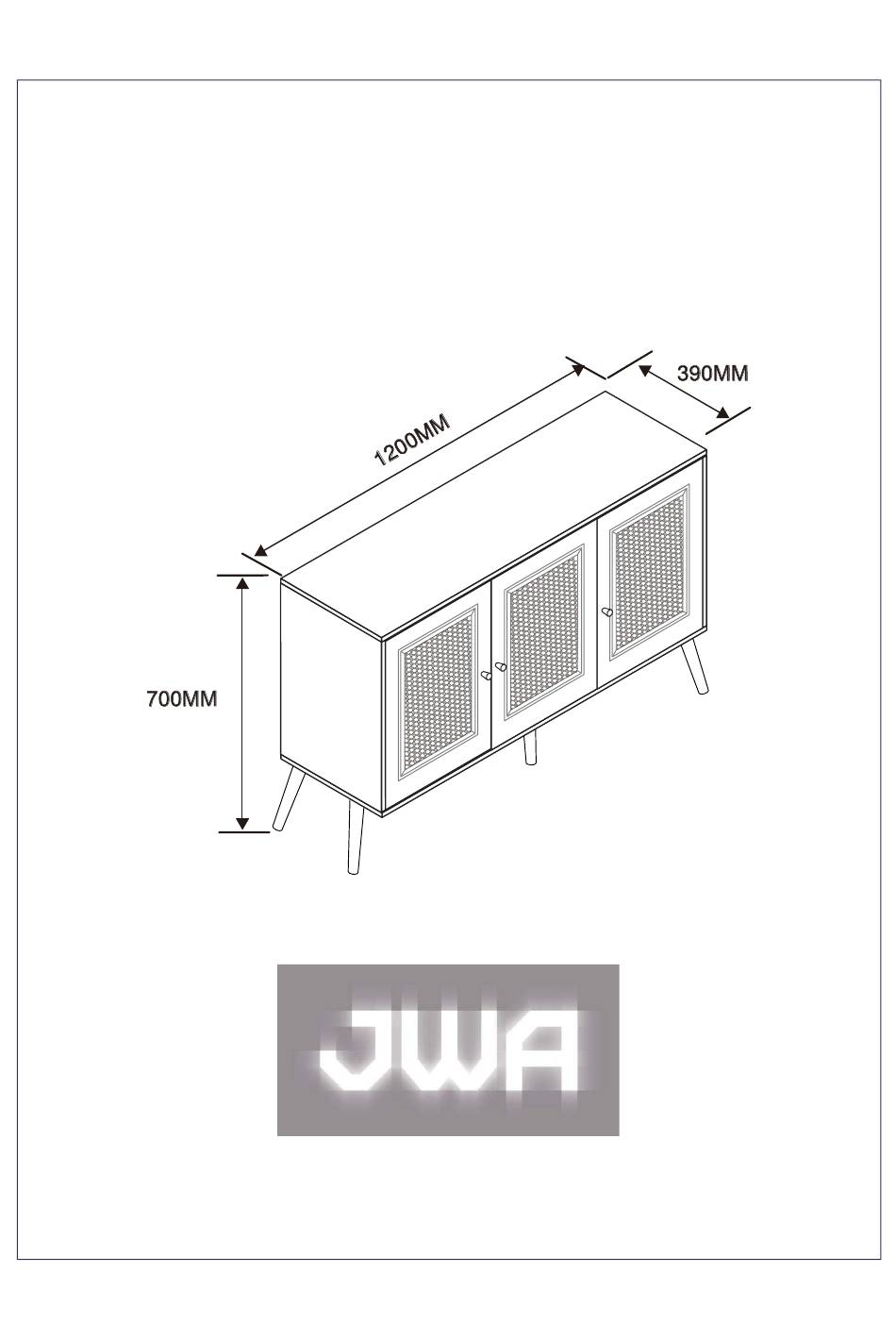

- Page 1 ASSEMBLY INSTRUCTION CLEMENTINE BUFFET ITEM CODE 70189 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when li ing. Product should be assembled as near as possible to the point of use 3. -
Page 3: Parts List
PARTS LIST M7X39mm M14.8X12mm M8X30mm M5X40mm 12pcs 12pcs 16pcs 8pcs M4X14mm 4pcs 20pcs 4pcs 4pcs M3.5X14mm M3X16mm 24pcs 3pcs 18pcs 1pcs M8X50mm M4x30mm M3.5x14mm 2pcs 1pcs 2pcs 1pcs TOP PANEL SIDE PANEL BACK PANEL SIDE PANEL DOOR MIDDLE PANEL SHELF DOOR SHELF DOOR... - Page 4 STEP 1: STEP 2:...
- Page 5 STEP 3: STEP 4:...
- Page 6 STEP 5: STEP 6:...
- Page 7 STEP 7: STEP 8:...
- Page 8 STEP 9: STEP 10:...
- Page 9 STEP 11: STEP 12:...
- Page 10 ASSEMBLY COMPLETE...
- Page 11 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 12 To protect your furniture, we suggest the following: Avoid placing your furniture in direct sunlight. Do not place furniture directly under windows. Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the nish.
