Summary of Contents for PTZOptics Move 4K

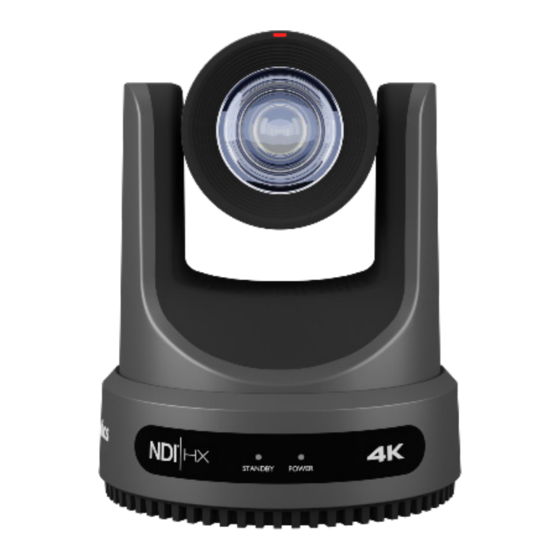

- Page 1 PTZOptics Move 4K Quick Start Guide Please check www.ptzoptics.com for the most up to date version of this document. ver 1_0 Rev 4-23...
-
Page 2: Table Of Contents
Table of Contents Preface ..............3 Precautions . -
Page 3: Preface
Congratulations on receiving your new PTZOptics Move 4K Camera. This manual is intended to to help you use your new PTZOptics camera how you want, as quickly as possible. If you have any questions or issues with this process, please Get in touch with our support team using one of the methods below: https://community.ptzoptics.com... -
Page 4: Connecting Your Camera For The First Time
We have created videos to help you set up and use your camera. Scan the QR code below or type in the URL to get started! Click the links to view: Move 4K Unboxing Move 4K Upgrading your Firmware t.ly/vBSV t.ly/4LC-... -
Page 5: Power Your Camera
Power Your Camera Your camera can be powered through DC power (with the included adapter) or Power over Ethernet Plus (with a switch or router rated for 802.3at). ver 1_0 Rev 3-23... -
Page 6: Connections
Connections Your Connection Options Move 4K 12X, 20X RS485 RS232 In 3.5 mm line In / out RS232 Out DC 12V HDMI Ethernet / LAN USB 2.0 3G-SDI ver 1_0 Rev 3-23... -
Page 7: Ir Remote Controller Guide
IR Remote Controller 3. * Button For multiple functions. Typically used when Guide calling shortcuts. 4 & 13. Set / Clear Preset Buttons Set Preset: Store a preset position [PRESET] + Numeric button (0-9): Setting a corresponding numeric key preset position. Clear Preset: Erase a preset position. - Page 8 11. # Button [*] > [#] > [8]: Show the camera version For multiple functions. Typically used [*] > [#] > [9]: Quickly set mount mode when calling shortcuts (flip / normal) [*] > [#] > [MANUAL]: Resets IP 12. Multiple Function Buttons information to default Function 1.
-
Page 9: Ip Connection
IP, please do one of the following: • Method 1: Use an Internet browser and type in “http://ptzoptics.com/local” to reach the camera’s web interface. The default username and password for the camera is “admin.” Once you are logged in you can navigate to the “Network Settings” page to view your camera’s Network Settings. -
Page 10: Web Ui
• The NDI Config Settings page gives access to the camera’s NDI settings. The MIDI Control page grants access to the PTZOptics MIDI Control, Control Mapping, • Mass Command Edit & Information sections. The MIDI Control page can be reached by accessing the HTTPS version of the camera’s web interface. -
Page 11: Using Auto Tracking
Pressing F4 will also disable auto Tracking. • The Move 4K’s auto-tracking can lock into a specific person, even while other people are in frame. Once tracking is enabled, a green box will appear around a subject. You can change between subjects using the left and right arrows on the IR remote controller. -
Page 12: Hdmi Connection, 3G-Sdi Connection, Usb Connection
1920x1080 @ 60 FPS. ▪ Note: The Move 4K & Link 4K cameras can not output HDMI & 3G-SDI simultaneously. You can use the IR remote shortcut [*] > [*] > [F3] or navigate to the Web UI to toggle between the HDMI and SDI video output. -
Page 13: 3.5 Mm Audio Connection
3.5 mm Audio Connection Your camera comes with a 3.5mm audio connection which allows you to embed audio on your video stream. 1. Connect a 3.5mm audio cable (not included) to the 3.5mm audio in port of your camera. 2. Connect the other end of the cable to the device of your choice. Note: The 3.5mm audio connection requires Line Level audio in order to function. -
Page 14: Ndi®|Hx Streaming And Control
NDI®|HX Streaming and Control Your camera can output NDI®|HX. NDI is a network based protocol for low latency video, audio, and control. NDI®|HX is the High Efficiency variant that uses less bandwidth across your network. To get started with NDI®|HX, download and install the latest NDI®|HX tools at: https://ndi.tv/tools#download-tools In addition to allowing your computer to view NDI feeds, the NDI Tools also offer a number of apps for using NDI including but not limited to:... -
Page 15: Rtsp Streaming, Rtmp Streaming
RTSP Streaming, RTMP Streaming • RTSP Streaming our camera is able to send two (2) RTSP streams for viewing video through your LAN. You can view these streams by using a video mixing software and typing in the following strings: Ŝ... -
Page 16: Control Page
Control Page PTZOptics offers a wide range of methods for controlling your cameras. Check out the list below, or visit https://ptzoptics.com/applications/ for available tools: • Web UI The updated Web UI offers just about everything you’ll need. You have access to PTZ &... -
Page 17: Warranty
Copyright Notice The entire contents of this manual / guide, whose copyright belongs to PTZOptics, may not be cloned, copied, or translated in any way without the explicit permission of the company. The product specifications referred to in this document are for reference only and as such are subject to updating at any time without prior notice.
