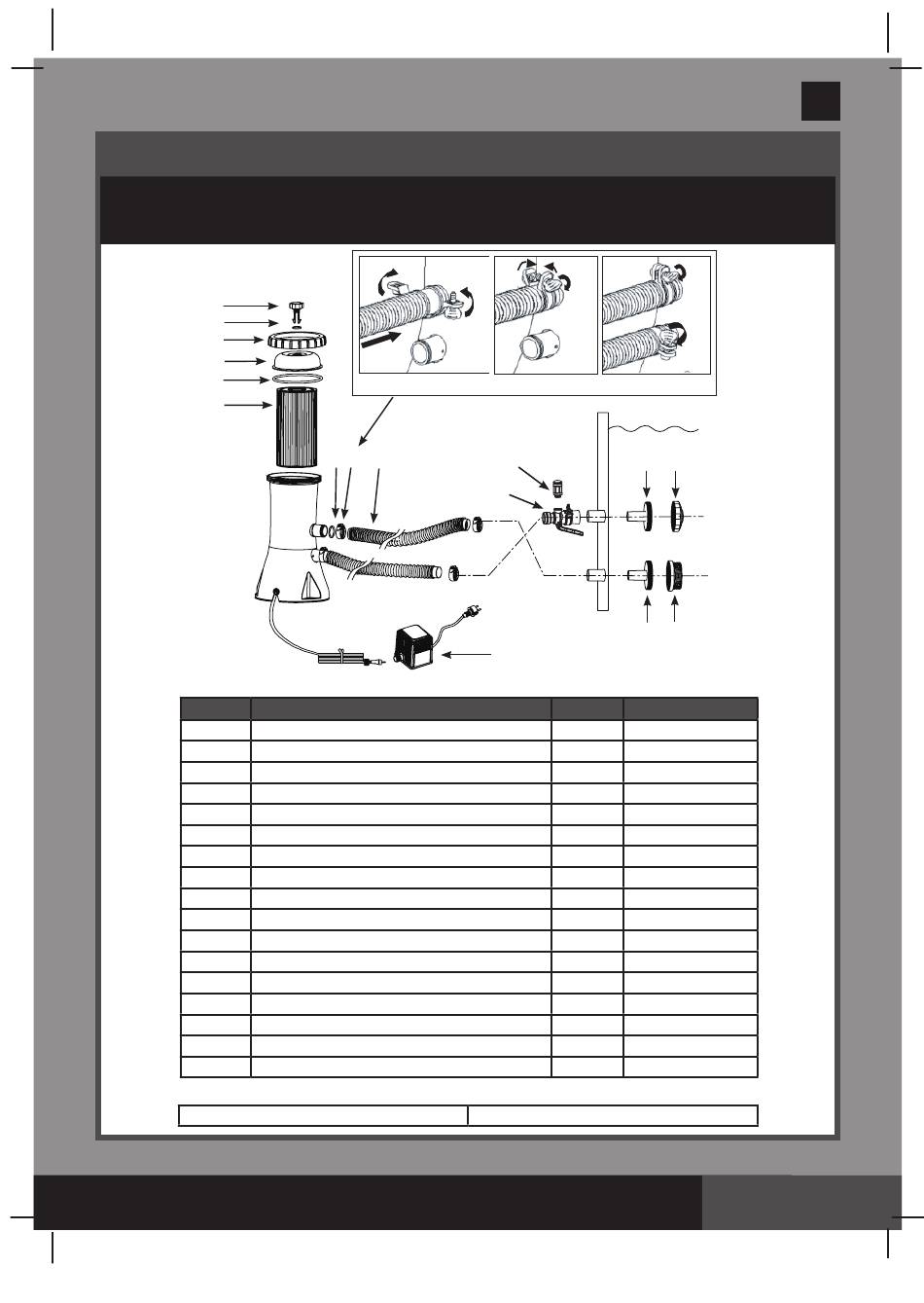

PARTS REFERENCE

Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
1
2
13
3
4
5
6 7
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF. NO.
1 AIR RELEASE VALVE
2 VALVE O-RING
3 FILTER HOUSING COVER
4 COVER SEAL
5 FILTER CARTRIDGE (29000)
6 HOSE SEAL
7 HOSE CLAMP
8 HOSE
9 STRAINER CONNECTOR
10 POOL INLET JET NOZZLE
11 STRAINER GRID
12 TRANSFORMER
13 THREADED FILTER HOUSING COLLAR
14 INLET STRAINER CONNECTOR
*15 AIR JET VALVE
*16 POOL INLET AIR ADAPTOR
*17 AIR JET VALVE CAP
" * ": Optional.
Type of filter medium
When ordering parts, be sure to quote the model number and part numbers.
No tools are required for the assembly.
SAVE THESE INSTRUCTIONS
(58GS) MODEL 604G FILTER PUMP ENGLISH 7.5" X 10.3" PANTONE 295U 06/04/2016
A
8
15
16
12
DESCRIPTION
(NOT SHOWN)
Synthetic cartridge #29000
B C
14 10
9 11
QTY. SPARE PART NO.
1 10460
1 10264
1 11868
1 10325
1
2 10134
4 11489
2 10116
1 11070
1 12364
1 12197
1 11649
1 11869
1 12365
1 12363
1 12367
1 12373
