TOOLS REQUIRED: One (1) Phillips screwdriver
One (1) pair of pliers or a small adjustable wrench
IMPORTANT: Do not fully tighten fasterners until last assembly operation.

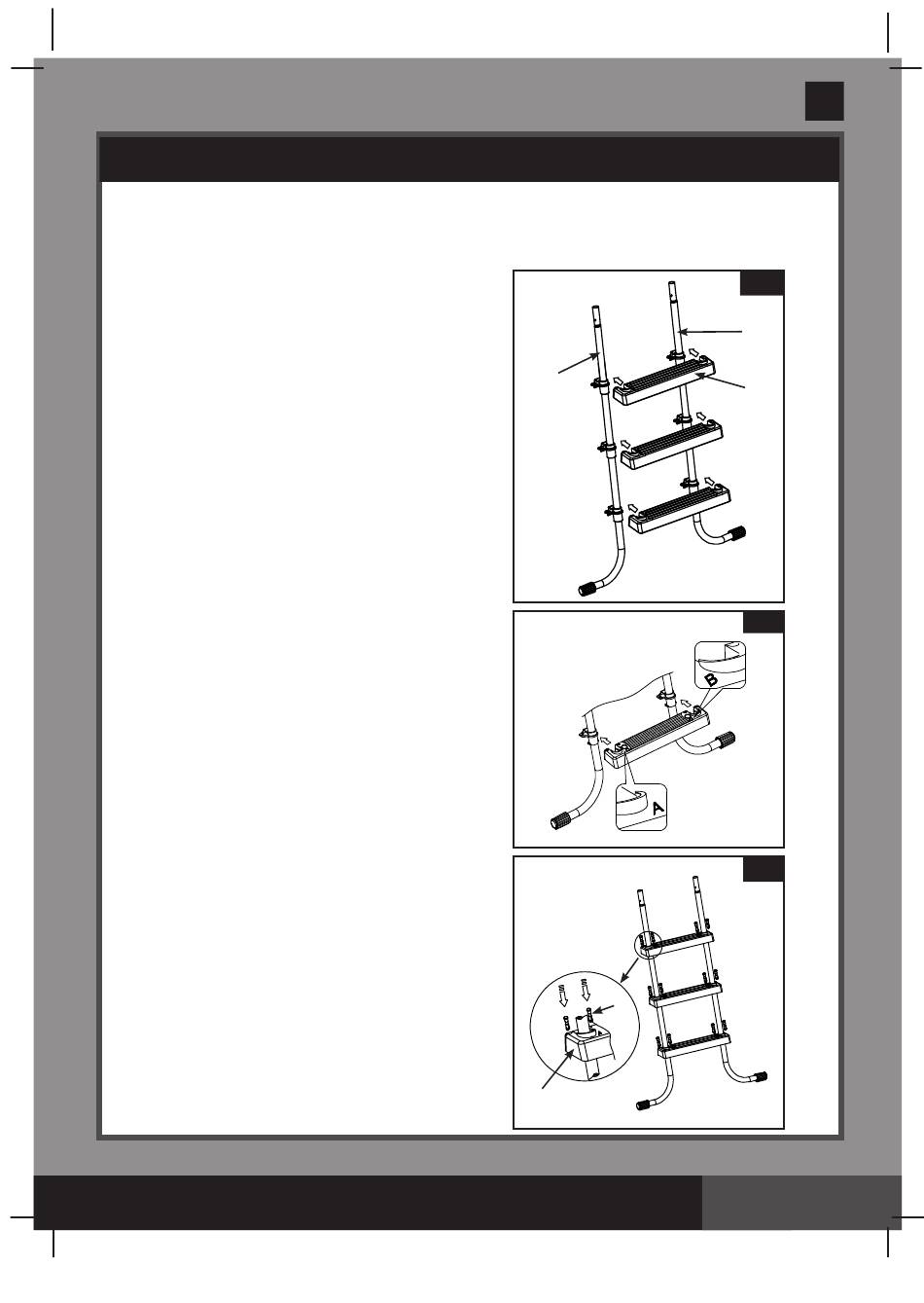

1. STEP INSTALLATION (refer to figures 1.1
through 1.3):
The pool ladder legs have the step mounting
fixtures installed at the factory. Slip the step
(5) onto the mounting fixture, matching the
direction of the arrow on the back of the
mounting fixture with the top of the step.
Ensure the back of the step is flush with the
mounting fixture otherwise the step will be
installed upside-down.
IMPORTANT: Ensure the J-shaped legs are
pointing outwards before installing the steps.
During assembly, the "A" legs fit into the "A"
step holes, and "B" legs fit into "B" step
holes.
Push the step mounting pins (4) into the
holes securing the step to the mounting
fixture.
IMPORTANT: Make sure all pins are
securely locked.
SAVE THESE INSTRUCTIONS
(190IO) 36", 42" 1-SECTION POOL LADDER ENGLISH 7.5" X 10.3" PANTONE 295U 06/06/2016
LADDER SETUP
5
B
A
6
B
A
B
A
4
English
190A
1.1
7
5
1.2
1.3
