Ranger™ 3000 Series

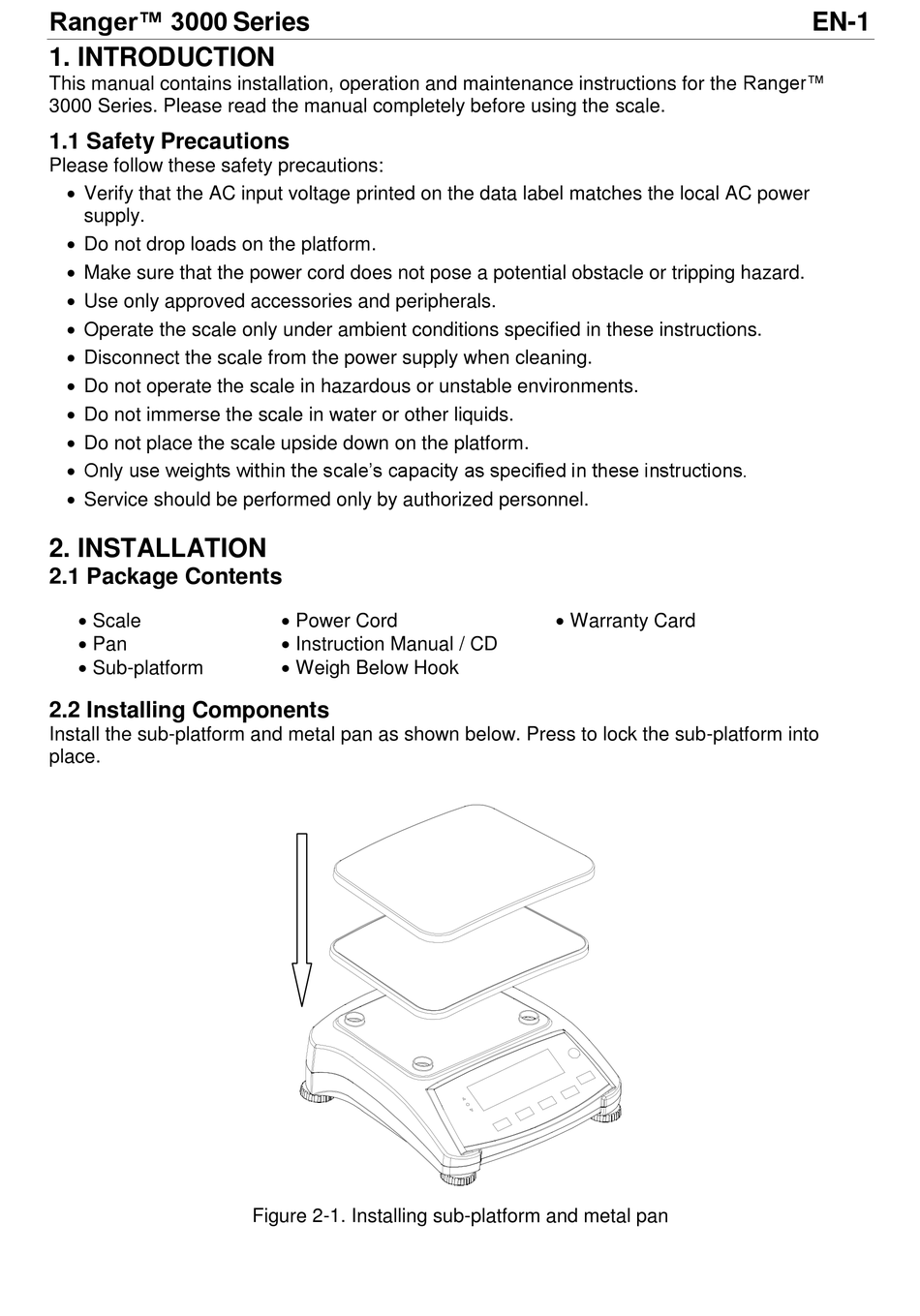

1. INTRODUCTION
This manual contains installation, operation and maintenance instructions for the Ranger™
3000 Series. Please read the manual completely before using the scale.
1.1 Safety Precautions
Please follow these safety precautions:
 Verify that the AC input voltage printed on the data label matches the local AC power
supply.
 Do not drop loads on the platform.
 Make sure that the power cord does not pose a potential obstacle or tripping hazard.
 Use only approved accessories and peripherals.
 Operate the scale only under ambient conditions specified in these instructions.
 Disconnect the scale from the power supply when cleaning.
 Do not operate the scale in hazardous or unstable environments.
 Do not immerse the scale in water or other liquids.
 Do not place the scale upside down on the platform.
 Only use weights within the scale‟s capacity as specified in these instructions.
 Service should be performed only by authorized personnel.

2. INSTALLATION

2.1 Package Contents

 Scale
 Pan
 Sub-platform

2.2 Installing Components

Install the sub-platform and metal pan as shown below. Press to lock the sub-platform into
place.
 Power Cord
 Instruction Manual / CD
 Weigh Below Hook
Figure 2-1. Installing sub-platform and metal pan
 Warranty Card
EN-1
