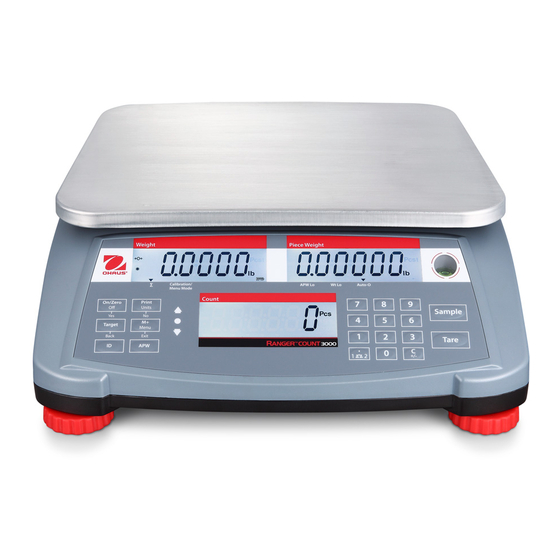

- Page 1 RANGER 3000 RANGER COUNT 3000 VALOR 7000 USB Interface Instruction Manual 1.800.561.8187 1.800.561.8187 information@itm.com information@itm.com www. www. .com .com...
-
Page 2: Kit Contents
USB Interface EN-1 INTRODUCTION This Interface Kit is for use with the following Ohaus products: Ranger 3000, Ranger Count 3000 and Valor 7000. The OHAUS USB Interface Kit is a unique solution to the problem of connecting a scale to a computer using a Universal Serial Bus (USB). -
Page 3: Usb Connection
EN-2 USB Interface 2. Install the Interface PCB. Push it through the pins and secure it with the 4 screws. Pins Groove for cable Screws 3. Connect a USB Cable. 4. Place the cord in the groove and put the red interface option cover back on. USB CONNECTION The USB cable terminates with a 4-pin, male, USB Type A connector. - Page 4 When using the USB interface with programs that limit the number of COM port designations (e.g. Ohaus MassTracker allows only COM1, 2, 3, & 4), it may be necessary to assign one of these port numbers to the new virtual port. This can be done in the Port Settings of the Device Manager utility, found in the Windows Control Panel.
-
Page 5: Balance Setup
USB Interface BALANCE SETUP The Ohaus Interface is preset to communicate using the following settings: 9600 baud, 8 bit, no parity, no handshake. If different settings are desired, it will be necessary to change either the balance settings, or the computer settings. - Page 6 USB Interface EN-5 Data sent from the Interface is in standard ASCII format terminated with a [CRLF] (carriage return- line feed). The output format is as follows: [weight] 9 characters [space] 1 character [unit] 5 characters max (left justified) [space] 1 character [stability indicator] 1 character...
- Page 7 EN-6 USB Interface Commands Immediate Print of displayed weight (stable or unstable). Print displayed weight (stable or unstable). Continuous Print. Print on Stability. 0S: Turn off “Stable Only” menu item and allow unstable print. 1S: Turn on “Stable Only” menu item and only print stable print. Interval Print x = Print Interval (1-3600 sec), 0P turns auto print OFF.
