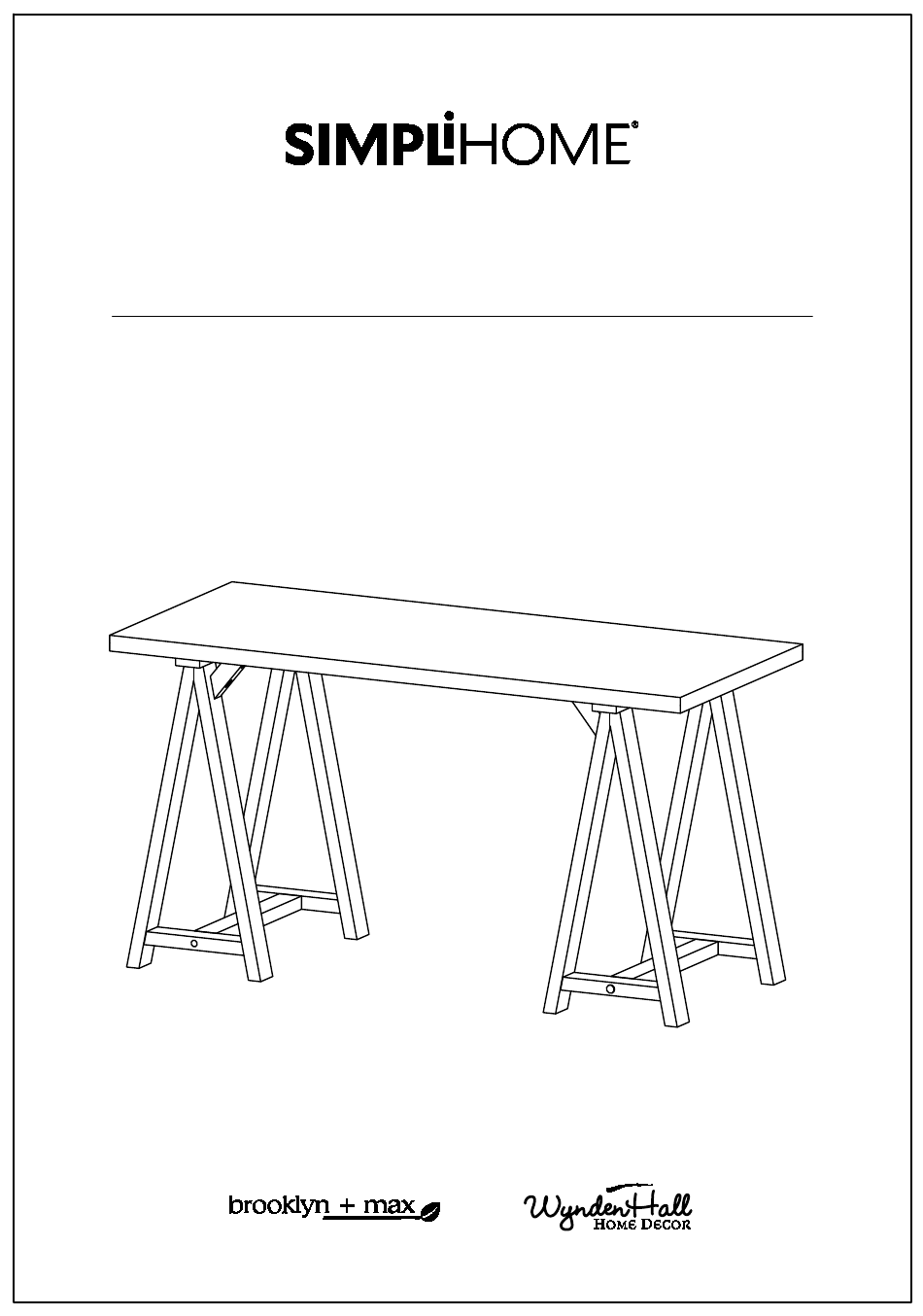

- Page 1 Sawhorse / Hawkins / Spokane Writing Desk Model # 3AXCSAW-09-BR...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Pre-Assembly Information
Pre-Assembly Information Model # 3AXCSAW-09-BR Part Description LEG B (L&R Same) QTY 1 QTY 2 LEG LOWER CONNECTOR LEG C (L&R Same) QTY 2 QTY 2 LEG UPPER CONNECTOR LEG SUPPORTER QTY 2 QTY 4... - Page 8 Pre-Assembly Information Model # 3AXCSAW-09-BR Hardware Description ALLEN KEY SCREW ALLEN KEY SCREW ALLEN KEY BOLT M6 X 50mm M6 X 35mm M6 X 40mm QTY 8 QTY 8 QTY 14 ALLEN KEY BOLT & CROSS NUT M6 X 70mm ALLEN KEY WOOD BOLT CAP QTY 1...
- Page 9 Components - Key Diagram Model # 3AXCSAW-09-BR...
- Page 10 Assembly Model # 3AXCSAW-09-BR Step 1 1. Align two pre-drilled holes on each Leg B & Leg C with two Dowels on each side of Leg Lower Connector D . 2. Insert Cross Nuts 4 into pre-drilled holes in Leg Lower Connector D with the slot facing out.
- Page 11 Assembly Model # 3AXCSAW-09-BR Step 2 1. Attach Leg Upper Connector E to Leg B and Leg C using four Allen Key Screws 1 . 2. Use Allen Key 5 to tighten screws. Do not over-tighten. 3. Repeat for the second Leg Upper Connector E .
- Page 12 Assembly Model # 3AXCSAW-09-BR Step 3 1. Attach Top A to Leg Upper Connector E using seven Allen Key Bolts 3 . 2. Use Allen Key 5 to tighten screws. Do not over-tighten. 3. Repeat on the opposite side.
- Page 13 Assembly Model # 3AXCSAW-09-BR Step 4 1. Attach Leg Supporter F to corner in between Legs and Top A at specified location using two Allen Key Screws 2 . 2. Use Allen Key 5 to tighten screws. Do not over-tighten. 3.
- Page 14 Assembly Model # 3AXCSAW-09-BR Step 5 1. Insert four Wood Bolt Caps 6 into exposed bolt holes on Leg B and Leg C .
