Whalen Trimble Bookcase ECOM-TR30BK Assembly Instructions Manual page 7

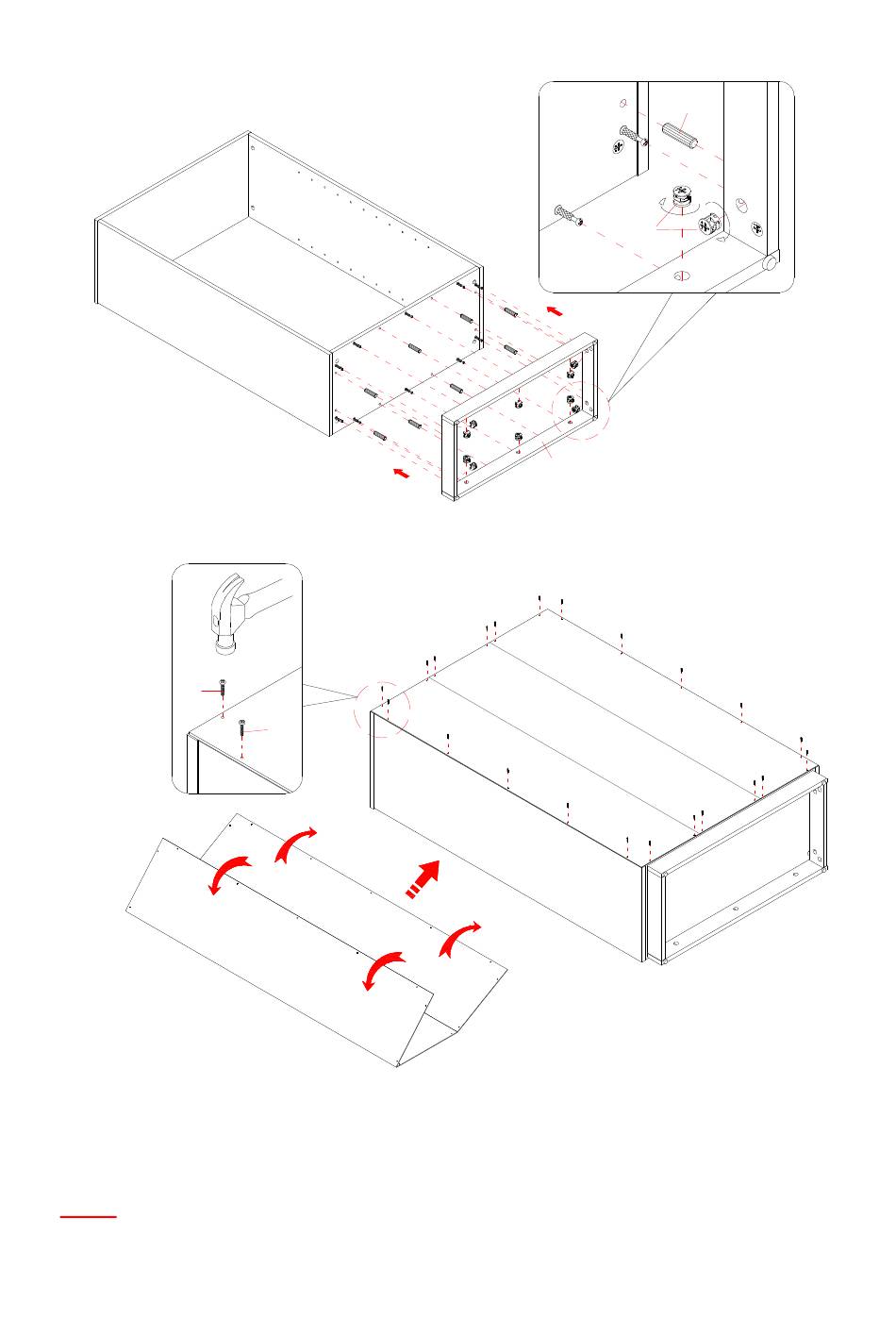

7. Attach the assembled base to the Bottom Panel (D) with eight 30 mm Wood Dowels (3) and ten Cam
Locks (1).
4
8. Now, go back and tighten all Cam Locks and Screws. Make sure that all the parts are tight and there are
no gaps between the parts. This will help keep the unit square.
9. Unfold the Back Panel (E) and position it onto the back of the assembled unit. Make sure the margins
along all edges of the Back Panel are equal. Gently hammer the 19 mm Ring Shank Nails (4) through
the pre-drilled holes on the Back Panel.
NOTE: We recommend attaching back panel with the nails at the corners first.
