Whalen Trimble Bookcase ECOM-TR30BK Assembly Instructions Manual page 6

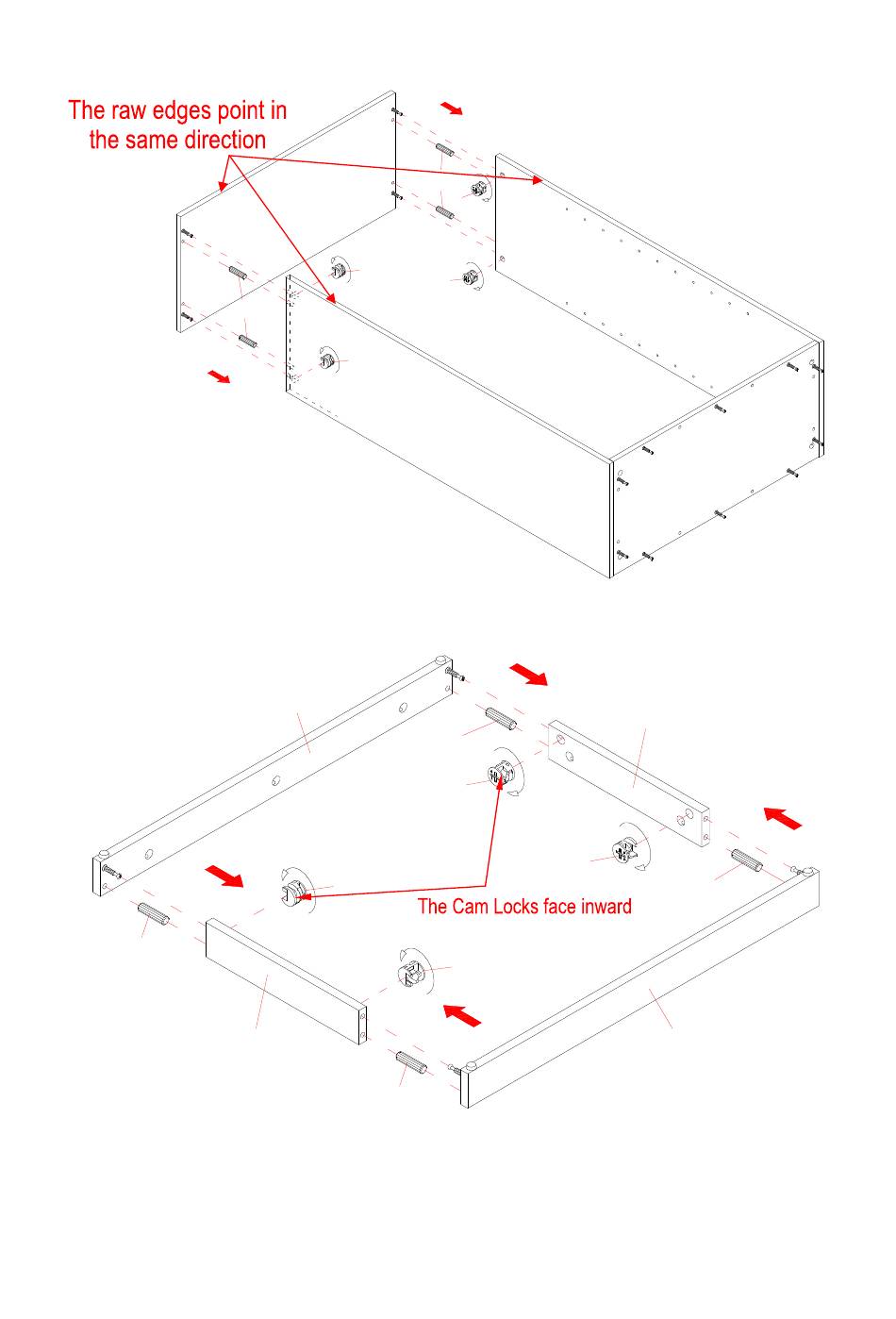

4. Attach the Top Panel (A) to the Side Panels (B and C) with four 30 mm Wood Dowels (3) and four Cam
Locks (1).
3
5. Attach two Bottom Side Supports (H) to the Bottom Front Support (G) with two 30 mm Wood Dowels
(3) and two Cam Locks (1).
6. Repeat the same procedure to attach the Bottom Back Support (G) at the opposite end.
Assembly Instructions
A
1
3
1
G
1
H
3
3
1
1
C
3
1
1
1
6
B
D
H
3
G
