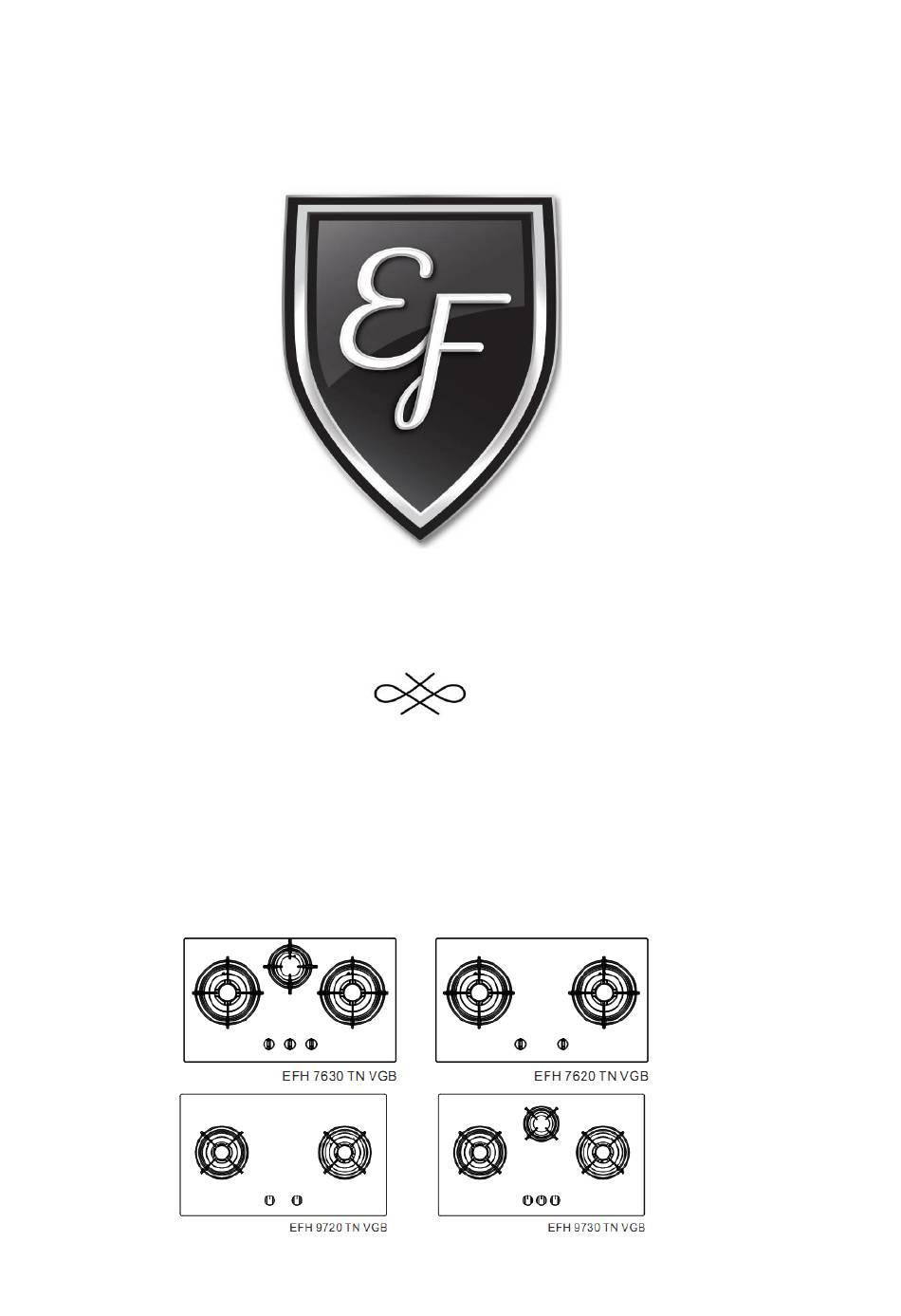

- Page 1 LICITY Model: BUILT-IN GAS HOB EFH 9720 TN VGB BATTERY IGNITION EFH 9730 TN VGB EFH 7630 TN VGB EFH 7620 TN VGB THE BEAUTY OF SIMPLICITY USER MANUAL...
-
Page 2: Close-Up View
Congratulations on choosing appliance, which you will find is dependable and easy to use. We recommend that you read this manual for best performance and to extend the life of your appliance. Thank you. Close-up View 1. Semi-rapid burner 2. Triple ring burner 3. - Page 3 IMPORTANT WARNING ON THE GLASS...
- Page 4 How To Use Your Appliance The position of the corresponding gas burner is indicated on each control knob. GAS BURNERS The burners differ in size and power. Choose the most appropriate one for the diameter of the cookware being used. The burner can be regulated with the corresponding control knob by using one of tile following settings: High IGNITING THE BURNERS...
-
Page 5: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and maintenance should be carried out after the appliance has turned cold especially when cleaning the enameled parts. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces. Avoid using acid or chlorine-based cleaning products. To extend the life of the cooktop, it is absolutely indispensable that the appliance be cleaned carefully and thoroughly on a frequent basis, keeping in mind the following: ENAMELLED PARTS, All of the enameled parts must be washed only with a sponge and soapy water or... -
Page 6: General Advice
GENERAL ADVICE √ When the appliance is not being used; it is advisable to keep the gas tap closed. √ If the gas tap becomes stiff, it is necessary to dismount it accurately, clean it with gasoline and spread a bit of special grease resistant to high temperatures on it. -
Page 7: Advice For The Installer
Advice for the Installer IMPORTANT: The appliance should be installed, regulated and adapted to function with other types of gas by a QUALIFIED INSTALLATION TECHNICIAN. Failure to comply with this condition will render the guarantee invalid. The appliance must be installed in compliance with regulations in force in your country and in observation of the manufacturer’s instructions. - Page 8 INSTALLATION IN KITCHEN CABINET WITH DOOR (fig.7) The fixture has to be made according to specific requirements in order to prevent the gas burners from going out, even when the flame is turned down to minimum, due to pressure changes while opening or closing the cupboard doors.
-
Page 9: Cut-Out Dimension
CUT-OUT DIMENSION Different models cut-out dimension are different, make sure use the correct dimension to installation. Model Cut Out Dimension(mm) EFH 9720 TN VGB 722-840 x 428-480 EFH 9730 TN VGB 722-840 x 428-480 EFH 7630 TN VGB... -
Page 10: Gas Section
GAS SECTION TYPES OF GASES The gases normally used may be grouped, in view of their features in three families: -L.P.G.(in cylinders) -NATURAL GAS(methane) -CITY GAS G110 IMPORTANT: By default, the hob comes with nozzles suitable for LPG The appliance should be installed, regulated and adapted to function with other types of gas by a QUALIFIED INSTALLATION TECHNICIAN. - Page 11 connection to the gas supply must be effected only from this side or in vertical position by turning the elbow downwards. To turn the elbow, follow these operations: √ Loosen the nut √ Turn the elbow √ Lock the nut √ Make sure there is no leakage by a soapy solution. IMPORTANCES: √...
-
Page 12: Lubrication Of The Gas Taps
√ Light the burner √ Set the cock valve to minimum On gas valves provided with adjustment screw in the centre of the shaft (fig.15) √ Using a screwdriver with max. diameter 3 mm, turn the screw inside the tap until the correct setting is obtained. - Page 13 Avoid touching the leaked liquid and make sure it does not come into contact with clothes or other items. • Clean the battery compartment carefully before installing the new one. • Note: The battery is a potential source of danger for children. Keep them away. •...
- Page 14 Valve adjustment Valve adjustment should be done with the control knob set at Burner ON saving flame position. Remove the knob, and adjust the flame with a tiny screwdriver (see fig.19 below). Fig.19 Checking the adjusted flame: heat the burner at full open position for 10 minutes. Then turn the knob into the saving setting.
- Page 15 For after sales service [Singapore], please contact Casa (S) Pte Ltd 15, Kian Teck Crescent, Singapore 628884 Telephone: 6268 0077 Email: service@casa.com.sg...
