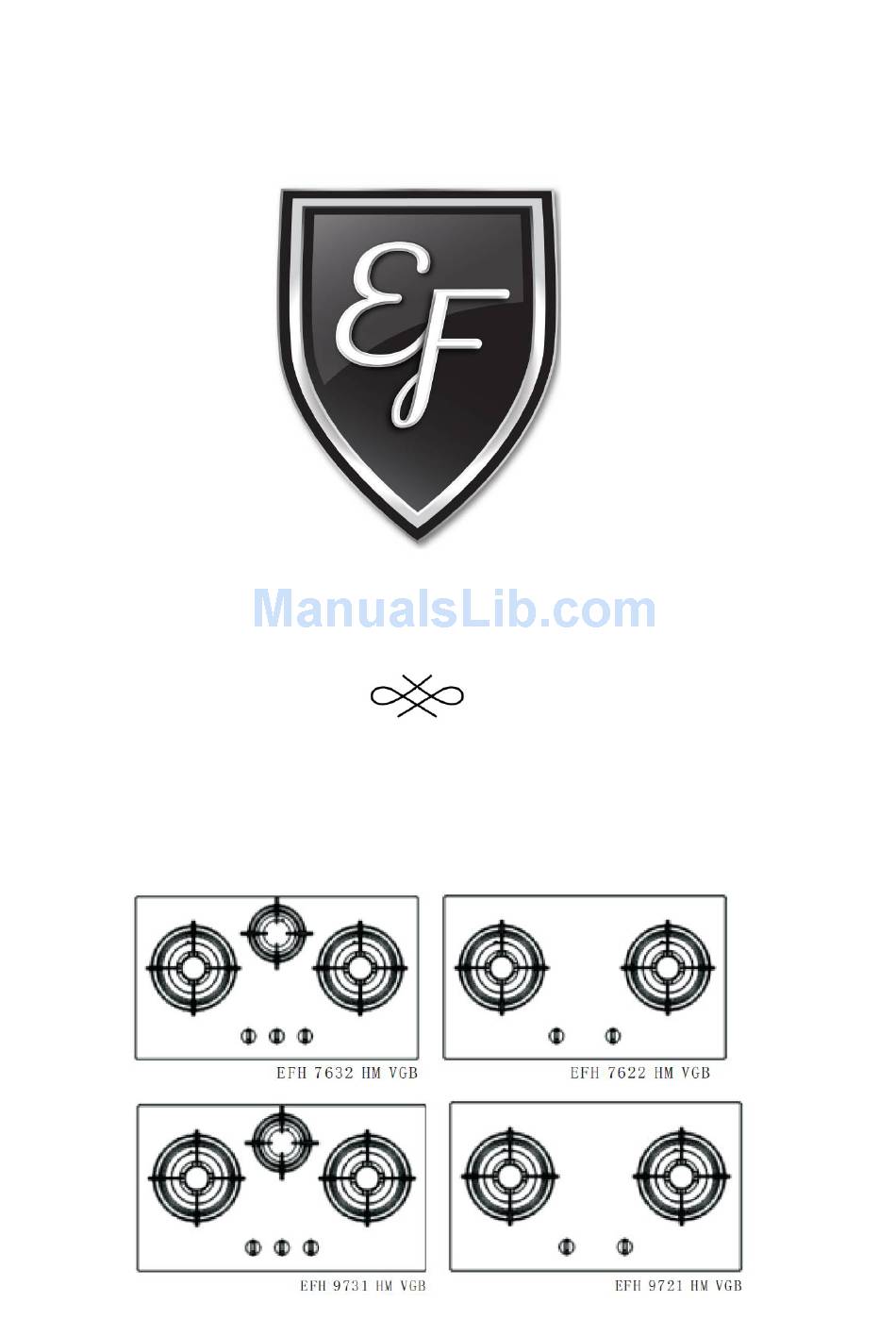

  • Page 1 LICITY BUILT-IN GAS HOB Model: EFH 9731 HM VGB (PUB) BATTERY IGNITION EFH 9731 HM VGB (LPG) EFH 9721 HM VGB (PUB) EFH 9721 HM VGB (LPG) EFH 7622 HM VGB (PUB) EFH 7622 HM VGB (LPG) EFH 7632 HM VGB (PUB) EFH 7632 HM VGB (LPG) THE BEAUTY OF SIMPLICITY USER MANUAL...
  • Page 2: Close-Up View

    Dear Customer, Thank you for having purchased and given your preference to our product. This manual provides a means to make full use of the features of this product. The safety precautions and recommendations are also featured in this manual. We recommend that you read this manual for best performance and to extend the life of your appliance.
  • Page 3 IMPORTANT WARNING ON THE GLASS...
  • Page 4: Technical Specifications

    Technical Specifications The appliance can be used for built in or free standing. It comes with two or three burners with glass panel. Each burner, which is operated by FSD type gas valve, is controlled by metal control knobs positioned at the front of the panel.
  • Page 5: Safety Guidelines

    Safety Guidelines Please do not allow young children to play with the plastic film and packaging as this may result in • suffocation. • After having unpacked the gas hob, check to ensure that it is not damaged. In case of doubt, do not use it and consult customer service or qualified technician The gas hob is designed for domestic use in home only •...
  • Page 6: How To Use Your Appliance

    How to Use Your Appliance The position of the corresponding gas burner is indicated on each control knob. GAS BURNERS The burners differ in size and power. Choose the most appropriate one according to the diameter of the cookware being used. The burner can be regulated with the corresponding control knob by using one of tile following settings: OFF (close valve) High (maximum aperture or flow)
  • Page 7 Caution: The ignition device shall not be operated for more than 15 seconds. If after 15 seconds the burner has still not been lighted, stop operating the device and wait for at least 1 minute before attempting a further ignition of the burner. If the flame accidently goes out, the safety valve will automatically cut out the gas flow.
  • Page 8: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning and maintenance should be carried out after the appliance has turned cold especially when cleaning burner and the cast iron support. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces. Avoid using acid or chlorine-based cleaning products. To extend the life of the cooktop, it is absolutely indispensable that the appliance be cleaned carefully and thoroughly on a frequent basis, keeping in mind the following: CAST IRON PARTS, All of the cast iron parts must be washed only with a sponge and soapy water or...
  • Page 9: General Advice

    CLEANING THE TRLPLE RING BURNER Pay special attention to this burner: the burner crown must always be kept clean. When cleaning, remove the flame divider (fig.4) and use a cotton bud, toothbrush or some other item to clean out any incrustations or dirt from the four holes marked “H”...
  • Page 10: Advice For The Installer

    Advice for the Installer IMPORTANT:  The appliance should be installed, regulated and adapted to function with other types of gas by a QUALIFIED INSTALLATION TECHNICIAN. Failure to comply with this condition will render the guarantee invalid.  The appliance must be installed in compliance with regulations in force in your country and in observation of the manufacturer’s instructions.
  • Page 11 fig.6 INSTALLATION IN KITCHEN CABINET WITH DOOR (fig.7) The fixture has to be made according to specific requirements in order to prevent the gas burners from going out, even when the flame is turned down to minimum, due to pressure changes while opening or closing the cupboard doors.
  • Page 12 CHOOSING SUITABLE SURROUNDINGS The room where the gas appliance is to be installed must have a natural flow of air so that the gas can burn. The flow of air must come directly from one or more openings made in the out-side walls with a free area of at least 100c㎡.
  • Page 13: Cut-Out Dimension

    CUT-OUT DIMENSION Different models cut-out dimension are different, please be ensure to use the correct dimension to installation. Model Cut Out Dimension(mm) Height (670~725mm) × (370~410mm) EFH7622 HM VGB 75mm (670~725mm) × (370~410mm) EFH7632 HM VGB 75mm (670~825mm) × (370~435mm) EFH9721 HM VGB 75mm (670~825mm)...
  • Page 14: Gas Section

    Gas Section TYPES OF GASES The gases normally used may be grouped, in view of their features in three families: -L.P.G. (in cylinders) -NATURAL GAS (methane) -CITY GAS G110 IMPORTANT: The appliance should be installed, regulated and adapted to function with other types of gas by a QUALIFIED INSTALLATION TECHNICIAN.
  • Page 15 IMPORTANCES: √ Prior to installation, ensure that the local distribution conditions (nature of gas and gas pressure) and the adjustment of the appliance is compatible √ Never attempts to turn the elbow without having first slackened off the relative lock nipple. √...
  • Page 16: Lubrication Of The Gas Taps

    LUBRICATION OF THE GAS TAPS If the gas tap becomes stiff, it is necessary to dismount it accurately clean it with gasoline and spread a bit of special grease which resistant to high temperatures on it. The operations must be executed by a qualified technician. INSTALLING THE BATTERY nsert a DC1.5V battery into the battery compartment (see below fig 17, fig 18) in the cover.
  • Page 17: Self Check

    SELF CHECK In the event of any abnormal occurs during operation of the gas hob or the gas hob does not function properly, you may do a self check before contacting customer service officer. Disconnect the hob from gas connection before checking.
  • Page 18 The manufacturer and agent decline all responsibilities in the event of damage caused by improper, incorrect or illogical use of the appliance. Contact after sales service center when in doubt of the condition of the appliance. For after sales service [Singapore], please contact Casa (S) Pte Ltd 15 Kian Teck Crescent, Singapore 628884 Telephone: +65 6268 0077...
