Vogue 310101 Installation Instructions Manual

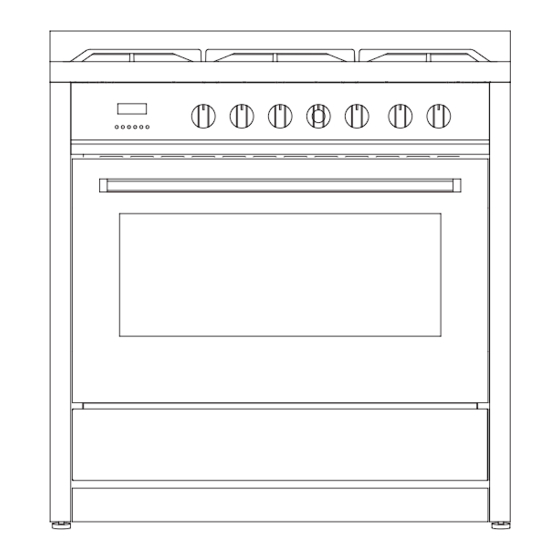

Full gas freestanding oven 900mm
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTALLATION
INSTRUCTIONS
USER GUIDE
VOGUE Full Gas Freestanding Oven 900mm
310101
To prevent the risk of accidents or damage to the appliance, it is essential
to read these instructions before it is installed and used for the f irst time

Advertisement

loading
Need help?

Need help?

Do you have a question about the 310101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vogue 310101

Summary of Contents for Vogue 310101

  • Page 1 INSTALLATION INSTRUCTIONS USER GUIDE VOGUE Full Gas Freestanding Oven 900mm 310101 To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the f irst time...
  • Page 3 1.INSTRUCTIONS FOR USE ....................3 2.INSTRUCTIONS FOR DISPOSAL OUR ENVIRONMENTAL CARE .........5 3.INSTALLING THE APPLIANCE ..................6 3.1 Electrical connection .....................7 3.2 Room ventilation ......................7 3.3 Extraction of the products of combustion ..............7 3.4 Connection to gas ......................8 4. ADAPTATION TO DIFFERENT TYPES OF GAS .............9 4.1 Replacement of nozzles on the cooking hob ..............9...
  • Page 4 TO REPLACE IT.
  • Page 5 1）Appliance type:Class 2 2)Warning the user against the use of cooking vessels on the hotplate that overlap its edges. 3)This appliance shall be installed in accordance with the regulations in force and only used in a well ventilated space.Read the instructions before installing or using this appliance.
  • Page 7 The cooker is supplied with an anti-tilting chain to prevent the appliance from tilting forward and accidental damage to the gas pipe. Take the expansion with hook and make an adequate hole in the wall behind, at the same height as the chain fixing area. Insert the plug into the hole and then screw in the hook until it is firmly fixed to the wall.
  • Page 8 Warning: 1)Piror to installation ensure that the local distribution conditions(nature of the gas and gas pressure)and the adjustment of the appliance are compatible; 2)The adjustment conditions for this appliance are stated on data plate; 3)This appliance is not connected to a combustion products evacration device.It shall be installed and connected in accordance with current installation regulations.Particular attention shall be given to the relevant requirements regarding ventilation.
  • Page 9 steel steel steel length is no moving parts or is It’s necessity of changing the flexible tube when the national conditions require it. steel steel steel degree C). steel steel steel steel hose 3.4.2...
  • Page 11 tics table Consumption(*) Natural Natural I3B/P(30) I3B/P(50) I3+(28-30/37) Burner G20 rill gas G25 rill gas Main Main Main Main Main Input Main Input Input Input Input Input Injector Injector Injector Injector Injector Injector kW(g/h) kW(g/h) kW(g/h) kW(g/h) kW(g/h) kW(g/h) Rapid 3.0(218) 0.85 3.0(218)
  • Page 12 1.Rapid 3.Auxiliary 4.Triple ring 4.4.1...
  • Page 13 4.4.2 ℃...
  • Page 14 ℃...
  • Page 15 6 BUTTON DIGITAL CLOCK This model has a digital display, 24hr clock with 6 control buttons. When the power is connected, the screen displays 3 flashing numbers and 'AUTO'. Adjusting the digital clock To set the correct time , press the button first, then + or - button to advance forward or backward until the correct time is display.
  • Page 17 Cooker pan diameters Container table (use flat-bottomed saucepans) φmin Saucepan φ max Saucepan Burner (mm) (mm) Auxiliary Semi-rapid Rapid Triple ring...
  • Page 18 8.2.1 ℃ 8.2.2 The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed.Ensure that the kitchen is well ventilated:keep natural ventilation holes open or install a mechanical ventilation device(mechanical extractor hood). Prolonged intensive use of the appliance may call for additional ventilation,for example opening of a window, or more effective ventilation,for example incressing the level of mechanical ventilation where present...
  • Page 20 Baking tray x 1 Grill insert x 1 Chrome shelf x 1...

  • Page 23: Cleaning The Oven Door

    11.2 Replacing the oven lamps WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. Remove the glass cover of the lamp-holder as shown below. Remove the lamp and replace with a lamp resistant to high temperatures (300°C) with the following characteristics: - Voltage: 220-240V - Wattage: 25W...
