Toto EGO TX445SE Installation Instructions

SPECIFICATIONS
120
45
150
FLOOR
Ø 8 Ø80
TX445SEMV3
"EGO" Floor Standing Bath & Shower Set
120
45
150
FLOOR
Ø 8 Ø80
TX445SESMV3
"EGO II" Floor Standing Bath & Shower Set
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water. Wipe
entire surface completely dry with clean soft cloth. Many cleaners may
contain chemicals, such as ammonia, chlorine, toilet cleaner etc. which
could adversely affect the finish and are not recommended for cleaning
S06434MR

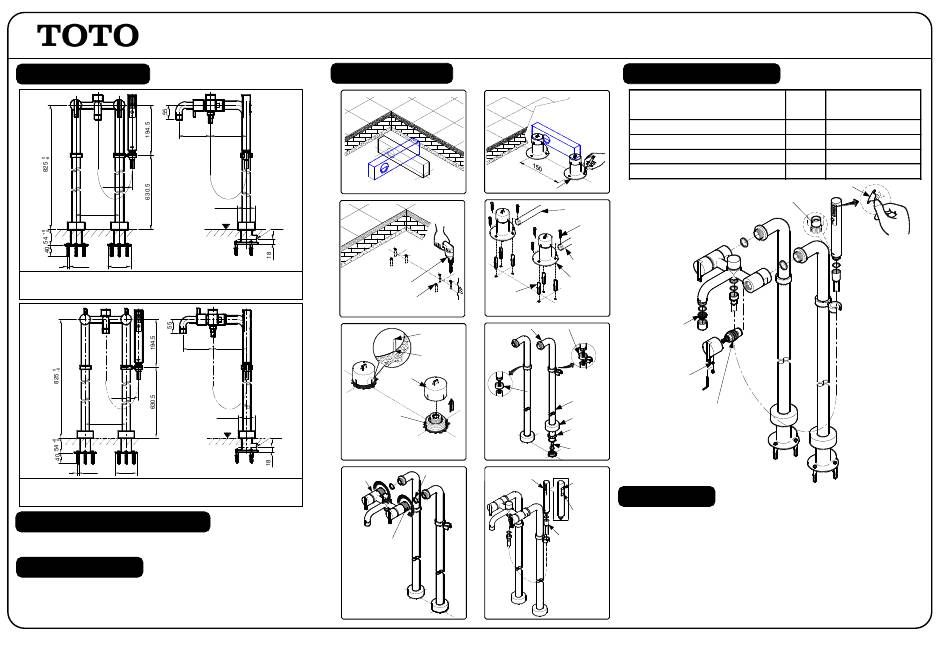

"EGO" FLOOR STANDING BATH & SHOWER SET TX445SE
INSTALLATION
1
138
Make sure the floor is flat
Ø72.5
3
G ½
Drill
6 - Hole 8
5
138
* Cover
Ø72.5
Mortar
G ½
* Remove the cover after the
mortar has dry
7
Body
Nut*
* Turn the nut
2
Base
Hot Water
4
Supply *
Screw
Cold W ater
Supply *
Base
Sleeve
Anchor
* Pipe supplied by owner
Maximum 6
Pipe Hanger
Mortar
Minimum
Mortar
Ring
Pipe
Cover
Nut
Flexible
Hose
8
Massage
Packing
Shower
Spray
Button
Rain Spr ay
Button
Flexible Hose
w/ Packing
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Unsatisfactory spray 1
Flow rate unsatisfactory 2
3
Water leaks around the handle
Handle is loose 4
Flow Regulator Inside
(Don t remove)
2. AERATOR
4. BOLT
3. CERAMIC
HEAD WORK
ATTENTION
1.
Don t use abrasive cleaners or solvents on faucets and fittings.
2. Flow Regulator should not be remove because it could damage the
system
3. As the product model is constantly updated, the actual product may
not look the same as it shown in the diagram, but the basic
installation principles are the same.
4. The hot water supply side of the faucets is in a condition of high
temperature. Do not allow skin to contact with the hardware surface
directly. Otherwise, scalding may occur.
SOLUTION
Clean
Remove and clean
Tighten
Tighten
1. NOZZELS
R6
