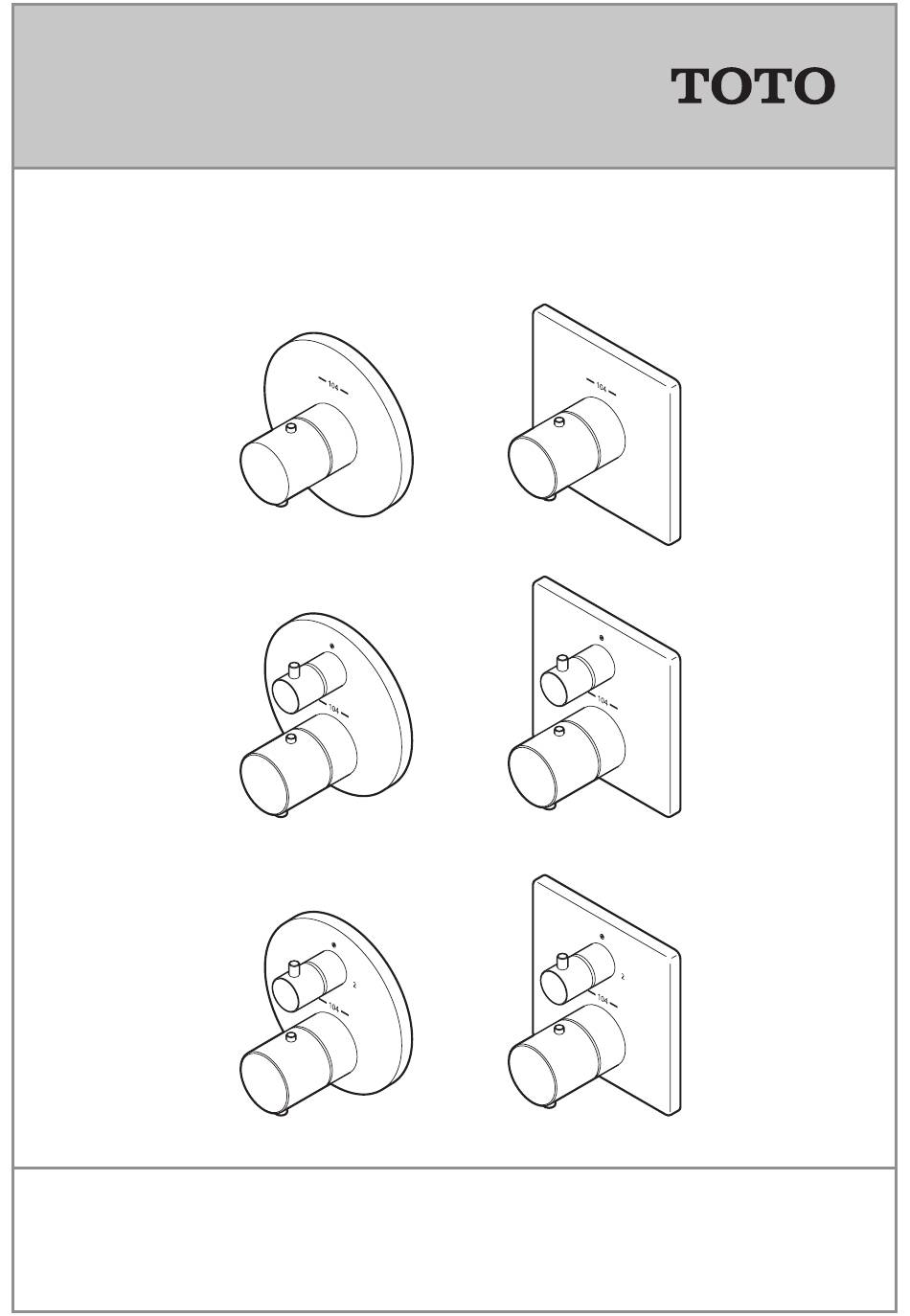

Installation and Owner's Manual
Manual de instalación y del propietario
Manuel d'installation et d'utilisation
Manual de Instalação e do Proprietário

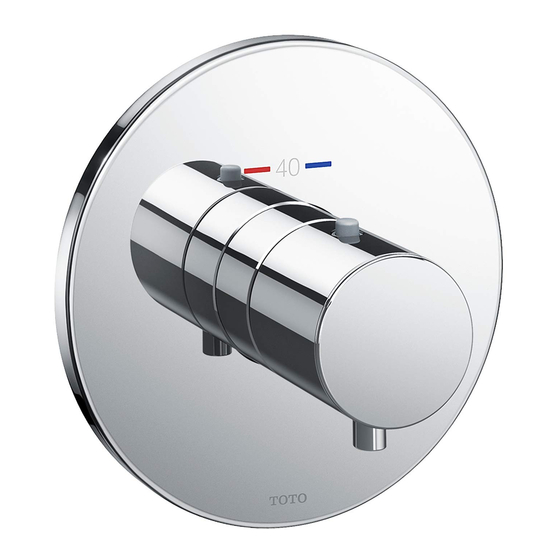

Thermostatic mixing valve and trim
Válvula termostática de mezcla y borde
Soupape et robinetterie de mélangeur thermostatique
Válvula de mistura termostática e acabamento
Warranty Registration and Inquiry
For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit
our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please contact
TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260
(888) 295-8134 or (678) 466-1300 when calling from outside of U.S.A.
TBV01406
TBV01407
TBV01408
TBV02401
TBV02403
TBV02404
Advertisement
Table of Contents
Related Manuals for Toto TBV01406
Summary of Contents for Toto TBV01406
- Page 1 TBV02404 Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please contact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260...
-
Page 2: Table Of Contents
Tools you will need......3 THANK YOU FOR CHOOSING TOTO! The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice. -
Page 3: Tools You Will Need
Trim TBV02401 TBV02403 TBV02404 Valve body Valve body Valve body Lining plate Lining plate Lining plate Trim Trim Trim Screw Set screw Temperature control handle Small screw Diverter handle Hex wrench Handle cap (4mm) (2.5mm) (not included for TBV01406, TBV02401) -
Page 4: Installation Procedure
INSTALLATION PROCEDURE I. Preparing the installation area 1. Use hacksaw to remove excess portion of outer plaster guard Within Hacksaw that extends from the wall 1/16" surface. The space between the (2mm) convex edge of the outer plaster guard and the wall MINI UNIT surface needs to be within 1/16"(2mm). - Page 5 INSTALLATION PROCEDURE Protective cover II. Installation: Valve O-ring 1. Remove protective cover from valve body. 2. Make sure O-Rings do not fall off. 3. Verify "UP" label is facing/reads correctly. Use hex wrench Screw (4mm-included) to fasten the valve with provided screws. WARNING: Valve body ●Be careful when removing...
- Page 6 INSTALLATION PROCEDURE 3. Align and insert the trim Cartridge sleeve through the cartridge sleeve Trim cover and over the lining plate. Make sure the water discharge port is facing downward. 4. Keep the trim within 1/16"(1mm) of wall surface. WARNING: ●DO NOT scratch the cartridge sleeve when...
- Page 7 INSTALLATION PROCEDURE b. Installation: Temperature-con- trol handle 1. Verify that snap-ring is still attached and that the opening on it is facing down. 2. Install handle onto cartridge and verify that safety button and "104" mark on panel are Snap ring centered.
- Page 8 TESTING AND CALIBRATION Adjusting the Temperature To decrease the temperature, turn the Diverter handle temperature control handle clockwise. To increase the temperature, turn the temperature control handle counter- Hot water side clockwise. A safety button is provided to Cold water side Safety button prevent hot water from spraying out Temperature control handle...
- Page 9 MAINTENANCE Cleaning the Valves • Accesing the valve body 1. Remove the temperature control handle and diverter handle. 2. Remove the trim and lining plate. • To clean filters on service stops 1. Shut off the main Hot and Cold water supply. 2.
-
Page 10: Warranty
INC., 1155 Southern Road, Morrow, GA 30260 (888) 295 8134 or (678) 466-1300, if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shallconstitute delivery.
