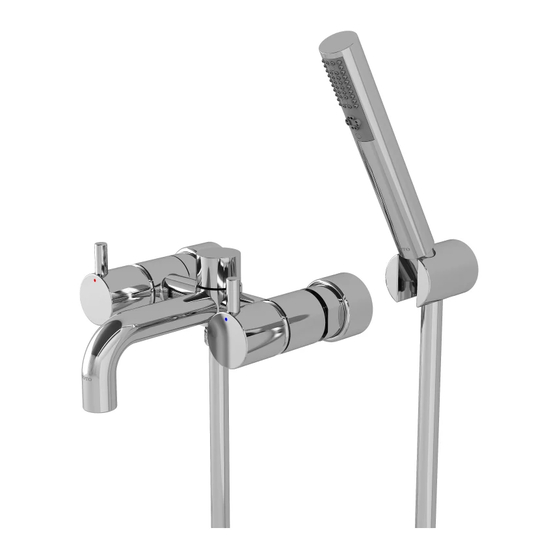

Toto EGO II TX445SESM Manual

SPECIFICATIONS
150±10
G½
40
62.5 0
120
-7
TX 445 SESM
"EGO II" Combination Bat h & Shower Set
& Shower Mixer w/o Hand Shower Set
150±10
G½
40
0
62.5
120
-7
TX 445 SESV2N
"EGO II" Combination Bath & Shower Set
w/ Double Agraff Flexible Hose
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa
2.
Ensure that water supply is clean ( No Sand, Dirt, Etc.).
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water. Wipe
entire surface completely dry with clean soft cloth. Many cleaners may
contain chemicals, such as ammonia, chlorine, toilet cleaner etc.
which could adversely affect the finish and are not recommended for
cleaning
S06244MS
"EGO II" COMBINATION BATH & SHOWER SET TX445SESM
INSTALLATION
1
MOUNT CONNECTORS PARALLEL WITH THE WALL
Hot
Water
Supply
195 0
-7
Leg
G½
2
0
62.5
120 * Tighten the nut
-7
TX 445 SESV1BR
"EGO II" Combination Bath
3
4
Hand Shower
Packing
Cold
150±10
Water
Supply
Use Seal tape
(Not Include)
150
Packing
Body
O-Ring
Nut *
2 X Ø8 Holes
Sleeve Anchor
Hanger
Screw
Massage
Spray Button
Rain Spray
Button
Packing
Flexible Hose
TROUBLESHOOTING
PROBLEM
Unsatisfactory spray
Flow rate unsatisfactory
Water leaks around the handle
Handle is loose
1. NOZZLES
Cover
Flow Regulator Inside
(Don t remove)
2. AERATOR
4. BOLT
ATTENTION
Don t use abrasive cleaners or solvents on faucets and fittings.
1.
2. Flow Regulator should not be remove because it could damage
the system
3. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the basic
installation principles are the same.
4. The hot water supply side of the faucets is in a condition of high
temperature. Do not allow skin to contact with the hardware
surface directly. Otherwise,
scalding may occur.
CHECK
SOLUTION
POINT
1 Clean
2 Remove & Clean
3
Tighten
4
Tighten
3. CERAMIC
HEAD WORK
R8
