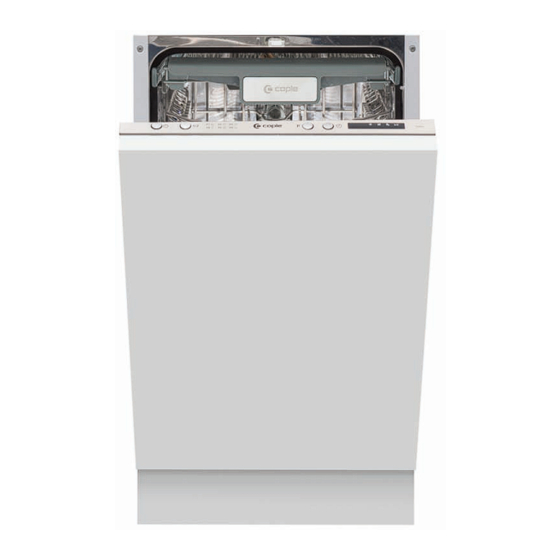

Integrated dishwasher

Advertisement

Quick Links

Di477
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Di477 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Caple Di477

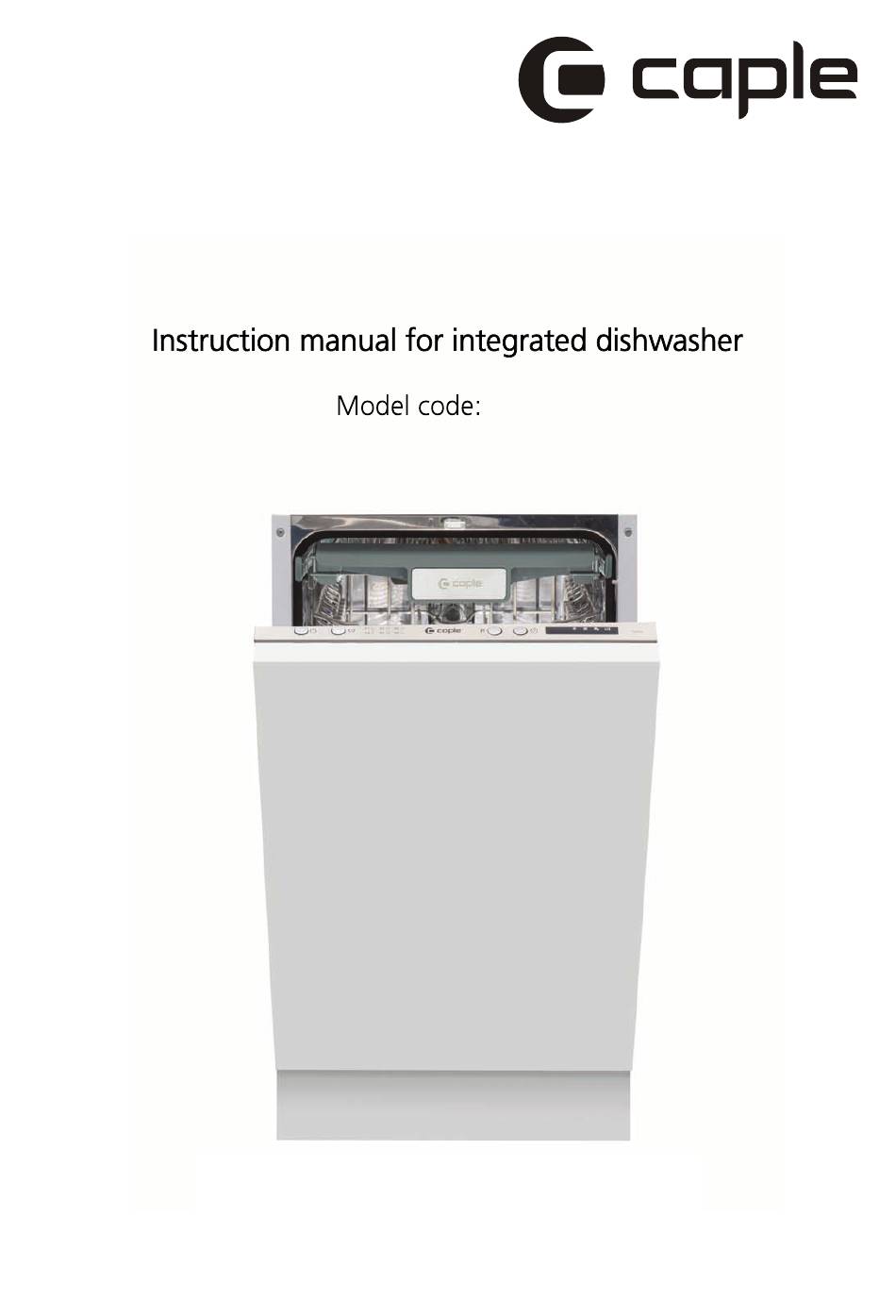

  • Page 1 Di477 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
  • Page 2: Table Of Contents

    Dishwasher features........3 Please carefully read this manual before using the dishwasher, it will help you to use and maintain your Caple dishwasher properly. A Water softener..........4 Keep it to refer to it at a later date. B Loading the salt into the softener....5 Pass it on to any subsequent owner of the appliance.
  • Page 3 When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments;...
  • Page 4 This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.
  • Page 5 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. Check that the detergent powder is empty after completion of the wash cycle. Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
  • Page 6 Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material POM polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.
  • Page 7: Control Panel

    For the detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door, press the On/Off button to switch on the appliance . With each wash cycle. Compartment Fill the detergent dispenser For programs with pre-wash only. (Follow the user instructions) Check the rinse aid level Electric indicator on control panel.
  • Page 8: Dishwasher Features

    To get the best performance from your dishwasher, read all operating instructions before using it for the first time. 6. Display screen: to show the selected program, delay time 1. On/Off button: Press to turn the power on/off. etc. 2. Alt button: Dual zone wash function, press the Rinse aid indicator: button to select either upper basket or lower Indicates when the dispenser needs to be refilled.
  • Page 9: A Water Softener

    Before using your dishwasher for the first time: Set the water softener Add 1.5Kg dishwasher salt and then full fill the salt container with Fill the rinse aid container Add detergent The water softener must be set manually, using the water hardness settings. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.
  • Page 10: B Loading The Salt Into The Softener

    B. Loading salt into the water softener Always use the salt intended for use with dishwasher. The salt contain er is located beneath the lower basket and should be fill ed as explained in t he foll owing: Attention! Only use salt spe cif ically desi gne d for t he use i n dishwashers! Every other type of salt not speci fically de sig ned fo r the u se in a d ishwasher, espe cially table salt, will damage the w ater sof tener.
  • Page 11: D The Function Of Detergent

    When t o refill the rinse aid dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour " " of the optical level indicator C located next to the cap. When th e rinse-aid c ontainer is full, the whole indicator will be dark .As the rinse -aid diminishes, the size of the dark dot decreases.
  • Page 12 Detergents There are 3 sorts of d etergents 1.With phosphate and with ch lorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Normally new pulverised detergent is with out phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt con taine r even when °...
  • Page 13 Sensors intelligently check the level of cleanliness of your crockery to make maximum savings of time, energy and water. Here at Caple we want to do all that we can to save water for both ecological and financial reasons. Cutlery tray The clever cutlery trays sits at the top of your dishwasher and frees up much more space in the lower basket.
  • Page 14: Before Or After Loading The Dishwasher Baskets

    Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended.
  • Page 15: Loading The Upper Basket

    The normal method for loading baskets Loading the bottom basket Loading the upper basket The u pper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clea n ite ms are to be placed into the lo wer tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, se rving dishes and...
  • Page 16: Wash Cycle Table

    Means: need to fill rinse into the Rinse-Aid Dispenser. Pre-wash (45 ℃ Auto sensing wash, lightly, Autowas h(45-55 ℃ normally or heavily soiled Rinse crockery, with or with out 0.77~1.12 8~12.3 3/22g Rinse(6 2 ℃ dried-on food Drying Pre-wash(50 ℃ Wash (65 ℃...
  • Page 17: Change The Programme

    Changing the program A cycle that is underway can on ly be modified if it has only been running for a short time. Otherwise, the detergent may have already be en released, a nd the appliance may have already drained the wash water. If this is the case , the detergent dispenser mu st be refilled (see the section entitled "...
  • Page 18: Filtering System

    The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (main filter) and a microfilter (fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain.
  • Page 19: Caring For Your Dshwasher

    Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week.
  • Page 20: Installation Preparation

    How to keep your dishwasher in shape After every wash When not in use for a long time It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside.
  • Page 21: Furniture Doors Dimensions And Installation

    Please carefully read the installation instruction. Illustratio ns o f cabinet dimensions and installation position of the dishwasher Preparations should b e made before moving the dishwasher to the installation place. Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1).
  • Page 22 2 Install the hook on the furniture door and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel, fix the panel onto the outer door by using the screws and bolts (See figure 4b) . Figure4a 【...
  • Page 23: Tension Adjustment Of The Door Spring

    Tension adjustment of the door spring ● The door springs are set at the factory to the proper tension for the outer door. When the furniture door is installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see figure 5).
  • Page 24: Dishwasher Installation Steps

    Dishwasher installation steps ● Install the furniture door to the outer door of the dishwasher using the brackets provided. Re fer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turn ing in a clockwise motion to tighten the left and right door springs.
  • Page 25: Electrical Connection

    The dishwasher must be level for correct dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. Level the dishwasher by adjusting the three levelling legs individually. When levelling the dishwasher, please pay attention not to let the dishwasher tip over.
  • Page 26: Cold Water Connection

    How to connect the safety water supply hose The appliance must be connected to the water mains using new hose sets. The old hose sets should not be reused. Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice.
  • Page 27 Before calling Caple Service Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely.
  • Page 28 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The program was Select a more intensive program. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 29 Height : 815mm Width : 448 mm Depth : 550mm with the door closed Power supply: see rating label Capacity: 10 place settings...
  • Page 31 2 position cutlery basket: Mode 1 Position one: lift the left basket up, the left basket is now angled. Mode 2 Position two: adjust the left basket to the lower position, and the left basket is now flat.
  • Page 32 Technical Data Sheet Sheet of hous ehold d ishwasher according to EU Directive 1059 /2010: Manu facturer CAPLE Type / Description Di477 Standard place settings Energy efficiency class A+ + Annual energy consumption 211 kWh Energy consumption of the standard cle aning cycle 0.75 kWh...
