Summary of Contents for Caple di476

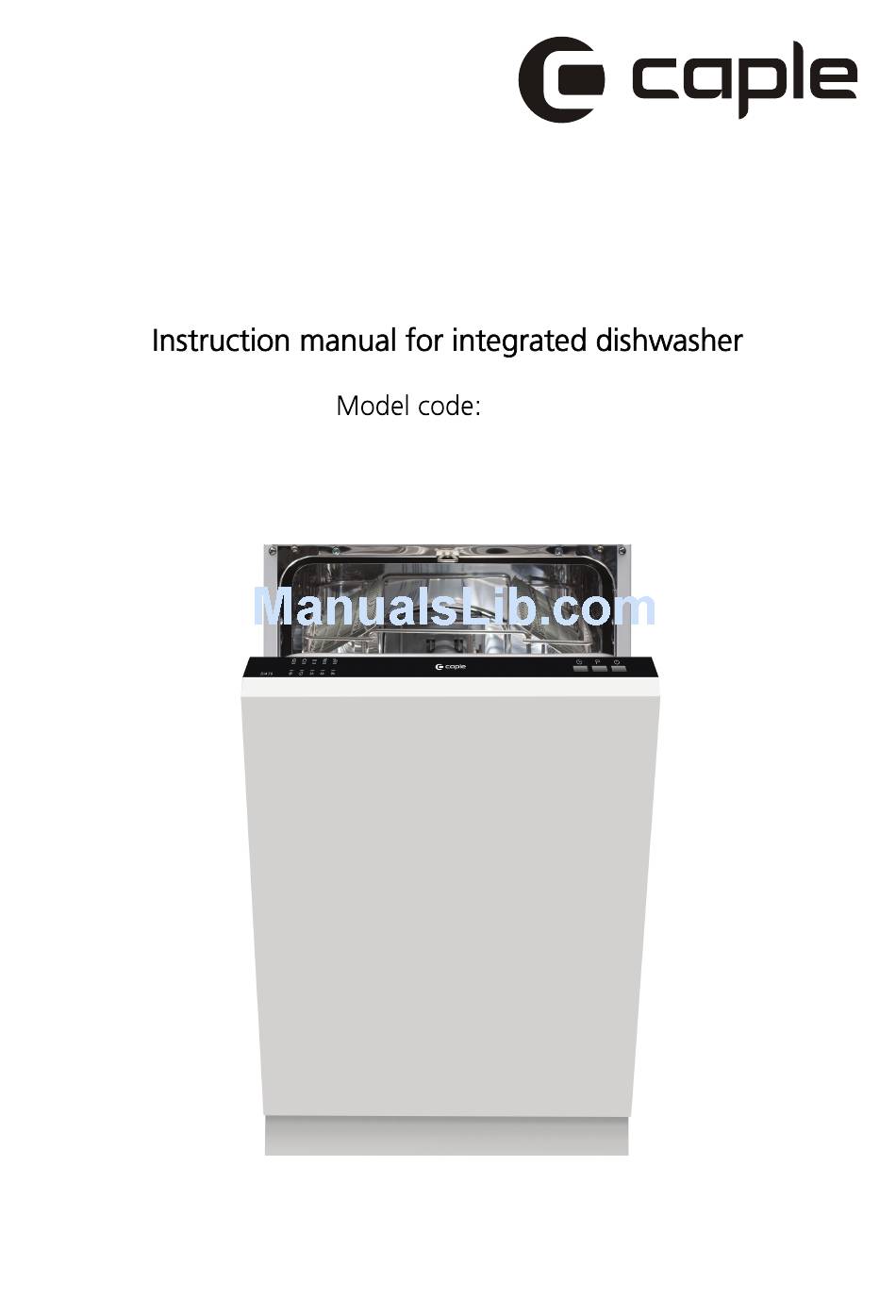

- Page 1 Di476 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
Change the programme.........12 help you to solve some common problems. At the end of the wash cycle......12 If you cannot solve the problems by yourself, please contact the Caple Service department either by telephone 0844 800 3830 or email Filtering system..........13 service@caple.co.uk. - Page 3 When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments;...
- Page 4 This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.
- Page 5 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. Check that the detergent powder is empty after completion of the wash cycle. Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
- Page 6 Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material POM polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.
-
Page 7: Control Panel
For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door, press the On/Off button to switch on the appliance . With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided). -
Page 8: Dishwasher Features
To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Display indicators: to show the error code, 2. Delay button : To press the button to delay. 3. Programme button : To press the button to select a delay time etc. -
Page 9: A Water Softener
Before using your dishwasher for the first time: Set the water softener Add 1.5Kg dishwasher salt and then fill the salt container with water Fill the rinse aid dispenser Add the detergent What is a water softener for? The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. -
Page 10: B Loading The Salt Into The Softener
Loading salt into the softener Always use the salt intended for use with dishwasher. The salt contain er is located beneath the lower basket and should be fill ed as explained in t he foll owing: Important! Only use salt spe cifically designe d for the use in dishwashers! Every other type of salt not specifically de sig ned fo r the u se in a d ishwasher, espe cially table salt, will damage the water softener. -
Page 11: D The Function Of Detergent
When to refill the rinse aid dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour " " of the optical level indicator C located next to the cap. When th e rinse-aid c ontainer is full, the whole indicator will be dark .As the rinse -aid diminishes, the size of the dark dot decreases. -
Page 12: Concentrated Detergent
Detergents There are 3 sorts of d etergents 1.With phosphate and with ch lorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Normally new powder detergent is produced without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the °... -
Page 13: Adding Detergent
Adding detergent Fill the detergent dispenser with detergent. The marking indicate s the dosing levels , as illustrate d on the righ t: For main wash cycle detergent to be added. For pre-wash cycle detergent or 3in1 tablets. Plea se o bserve the manufacturers dosing and storage Recommendations as stated on the detergent pac kaging. -
Page 14: Before Or After Loading The Dishwasher Baskets
Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a programme with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended. -
Page 15: Loading The Upper Basket
The method for loading normal dishware Loading the upper basket Loading the lower basket The u pper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clea n ite ms are to be placed into the lo wer tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, se rving dishes and... -
Page 16: Wash Cycle Table
Wash cycle table Means: you need to add rinse into the rinse aid dispenser. ℃ Pre-wash(50 ℃ Wash (65 For heaviest soiled Intensive Rinse crockery, and normally 5/22g Rinse soiled pots, pans, dishes etc ℃ Rinse(65 ) with dried on soiling. Drying ℃... -
Page 17: Change The Programme
Changing the programme A cycle that is underway can on ly be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "... -
Page 18: Filtering System
The filter system The filter prevents larger remnants of food or other objects from getting inside the pump. The wash residue may block the filter from time to time, in this case they must be removed. The filter system consists of a coarse filter,a flat (main filter) and a microfilter (fine filter). -
Page 19: Caring For The Dishwasher
5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump. If your dishwasher will not work due to ice, please contact professional Caple Service. Cleaning the spray arms It is necessary to clean the spra y arms re gularly fo r hard wate r che micals will clog the sp ray arm jets a nd bearings. -
Page 20: Installation Preparation
How to keep your dishwasher in good working order After every wash When not in use for a long time It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of... -
Page 21: Furniture Door Dimensions And Installation
Please carefully read the installation instruction. Illustratio ns o f cabinet dimensions and installation position of the dishwasher Preparations should b e made before moving the dishwasher to the installation place. Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1). - Page 22 2 Install the hook on the furniture door and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door using the screws and bolts(See figure 4b) . 【...
-
Page 23: Tension Adjustment Of The Door Spring
● Tension adjustment of the door spring The door springs are set at the factory to the proper tension for the outer door. When the furniture door is installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see figure 5). -
Page 24: Dishwasher Installation Steps
● Dishwasher installation steps Install the furniture door to the outer door of the dishwasher using the brackets provided. Re fer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turn ing in a clockwise motion to tighten the left and right door springs. -
Page 25: Electrical Connection
The dishwasher must be level for the correct dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the three levelling legs individually. When levelling the dishwasher, please pay attention not to let the dishwasher tip over. -
Page 26: Cold Water Connection
Cold water connection Connect the cold water supply hose to a thread ed 3/4(inch) conn ector and make sure that it is fastened tightly in place. If th e water pipes are new or have not been use d for an extended period of time, let the water run to make sure that the water is clear. -
Page 27: Before Contacting Caple Service
Before contacting the Caple service department Replace fuse or reset circuit breaker. Remove any other Fuse blown, or the circuit breaker tripped appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is... -
Page 28: Error Codes
The ECO light flashes quickly Overflow. If overflow occurs, turn off the main water supply before calling Caple service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. -
Page 29: Tech Nical Information
Height : 815mm Width : 448 mm Depth : 550mm with the door closed Power supply: see rating label Capacity: 9 place settings... - Page 31 Technical Data Sheet Sheet of hous ehold d ishwasher according to EU Directive 1059 /2010: Manu facturer CAPLE Type / Description Di476 Standard place settings Energy efficiency class Annual energy consumption 222 kWh Energy consumption of the standard cle aning cycle 0.78 kWh...
