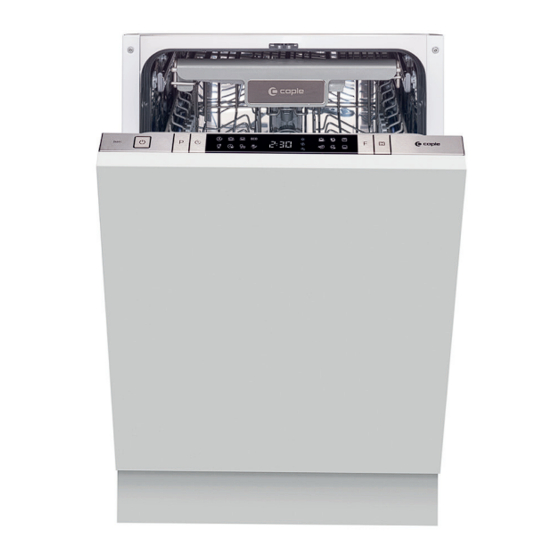

Caple DI491 Instruction Manual
  1. Manuals
  2. Brands
  3. Caple Manuals
  4. Dishwasher
  5. DI491
  6. Instruction manual

Caple DI491 Instruction Manual

Hide thumbs Also See for DI491:

Advertisement

Quick Links

Download this manual
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
Di491 Intergrated Dishwasher Instruction Manual .indd 1
Di491 Intergrated Dishwasher Instruction Manual .indd 1
D i s h w a s h e r
I n s t r u c t i o n M a n u a l
D I 491
10/03/2020 15:38
10/03/2020 15:38

Advertisement

loading
Need help?

Need help?

Do you have a question about the DI491 and is the answer not in the manual?

Questions and answers

Related Manuals for Caple DI491

Summary of Contents for Caple DI491

  • Page 1 I n s t r u c t i o n M a n u a l D I 491 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk Di491 Intergrated Dishwasher Instruction Manual .indd 1 Di491 Intergrated Dishwasher Instruction Manual .indd 1...

  • Page 2: Table Of Contents

    Cleaning and Maintenance Installation Instruction Troubleshooting Technical Information Caple Contact Details Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 2 Di491 Intergrated Dishwasher Instruction Manual .indd 2 10/03/2020 15:38 10/03/2020 15:38...
  • Page 3 - Please unplug before cleaning or performing maintenance on the appliance. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 3 Di491 Intergrated Dishwasher Instruction Manual .indd 3 10/03/2020 15:38 10/03/2020 15:38...
  • Page 4 - Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. - Check with a qualified electrician or Caple service representative if you are in doubt whether the appliance is properly grounded.
  • Page 5 - The appliance may only be used with correctly adjusted door springs. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 5 Di491 Intergrated Dishwasher Instruction Manual .indd 5 10/03/2020 15:38 10/03/2020 15:38...
  • Page 6 - If the supply cord is damaged, it must be replaced by Caple, its service agent or a similarly qualified person in order to avoid a hazard. - During installation, the power supply must not be excessively or dangerously bent or flattened.

  • Page 7: Warnings

    Collection of such waste separately for special treatment is necessary. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 7 Di491 Intergrated Dishwasher Instruction Manual .indd 7 10/03/2020 15:38 10/03/2020 15:38...

  • Page 8: Environmental Protection

    (placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase.

  • Page 9: Quick Operation Guide

    They will also dry better. Unload the appliance, starting from the lower basket. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 9 Di491 Intergrated Dishwasher Instruction Manual .indd 9 10/03/2020 15:38...

  • Page 10: Control Panel

    Delay time Upper basket Lower basket Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 10 Di491 Intergrated Dishwasher Instruction Manual .indd 10 10/03/2020 15:38 10/03/2020 15:38...

  • Page 11: Dishwasher Features

    » Add 1.5Kg dishwasher salt and then fill the salt container with water. » Fill the Rinse Aid dispenser. » Fill in detergent. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 11 Di491 Intergrated Dishwasher Instruction Manual .indd 11 10/03/2020 15:38 10/03/2020 15:38...
  • Page 12 °dH: German degree (EN 50242) °fH: French degree °Clark: British degree Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 12 Di491 Intergrated Dishwasher Instruction Manual .indd 12 10/03/2020 15:38 10/03/2020 15:38...

  • Page 13: Please Keep This Instruction Manual For Future Reference

    Otherwise the filter system, pump or other important parts of the machine may be damaged Please keep this instruction manual for future reference by salty water. Di491 Intergrated Dishwasher Instruction Manual .indd 13 Di491 Intergrated Dishwasher Instruction Manual .indd 13 10/03/2020 15:38 10/03/2020 15:38 1.
  • Page 14 (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 14 Di491 Intergrated Dishwasher Instruction Manual .indd 14 10/03/2020 15:38 10/03/2020 15:38...
  • Page 15 Don’t forget to replace the cap before you close dishwasher door. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 15 Di491 Intergrated Dishwasher Instruction Manual .indd 15 10/03/2020 15:38...
  • Page 16 In this case please choose a programme with a higher temperature. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 16 Di491 Intergrated Dishwasher Instruction Manual .indd 16 10/03/2020 15:38...
  • Page 17 Take care to keep it out of reach of children. Take care to keep it out of reach of children. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 17 Di491 Intergrated Dishwasher Instruction Manual .indd 17 10/03/2020 15:38 10/03/2020 15:38...
  • Page 18 Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 18 Di491 Intergrated Dishwasher Instruction Manual .indd 18 10/03/2020 15:38 10/03/2020 15:38...
  • Page 19 Make sure that the lid on the detergent compartment is closed, even if you are using tablets. If y Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 19 Di491 Intergrated Dishwasher Instruction Manual .indd 19 10/03/2020 15:38 10/03/2020 15:38...
  • Page 20 » Silver and aluminium parts have a tendency to discolour during washing. » Glazed patterns may fade if machine washed frequently. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 20 Di491 Intergrated Dishwasher Instruction Manual .indd 20 10/03/2020 15:38 10/03/2020 15:38...
  • Page 21 » Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 21 Di491 Intergrated Dishwasher Instruction Manual .indd 21 10/03/2020 15:38 10/03/2020 15:38...
  • Page 22 Pull handle and lower ft the basket for Instruction manual DI491 Please keep this instruction manual for future reference for lower position pper position Di491 Intergrated Dishwasher Instruction Manual .indd 22 Di491 Intergrated Dishwasher Instruction Manual .indd 22 10/03/2020 15:38 10/03/2020 15:38...
  • Page 23 Large serving bowl Dessert dishes Dinner plates Soup plates Oval plates Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 23 Di491 Intergrated Dishwasher Instruction Manual .indd 23 10/03/2020 15:38 10/03/2020 15:38...
  • Page 24 Do not let any item Do not let any item d through the extend through the extend through the Di491 Intergrated Dishwasher Instruction Manual .indd 24 Di491 Intergrated Dishwasher Instruction Manual .indd 24 10/03/2020 15:38 10/03/2020 15:38...
  • Page 25 Position two: Lift the left tray up, the left tray is sloping. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 25 Di491 Intergrated Dishwasher Instruction Manual .indd 25 10/03/2020 15:38 10/03/2020 15:38...
  • Page 26 Do not let any item extend through the bottom of the tray. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 26 Di491 Intergrated Dishwasher Instruction Manual .indd 26 10/03/2020 15:38 10/03/2020 15:38...
  • Page 27 « Fill Rinse Aid into the dispenser Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 27 Di491 Intergrated Dishwasher Instruction Manual .indd 27 10/03/2020 15:38 10/03/2020 15:38...
  • Page 28 After you close the door, the machine will continue working again. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 28 Di491 Intergrated Dishwasher Instruction Manual .indd 28 10/03/2020 15:38 10/03/2020 15:38...
  • Page 29 It is dangerous to open the door during a wash cycle, because the hot water or steam may scald you. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 29 Di491 Intergrated Dishwasher Instruction Manual .indd 29 10/03/2020 15:38 10/03/2020 15:38...
  • Page 30 Step 1 Turn the filter in anti-clockwise direction, ： Instruction manual DI491 Please keep this instruction manual for future reference Step 2：lift the filter assembly up Di491 Intergrated Dishwasher Instruction Manual .indd 30 Di491 Intergrated Dishwasher Instruction Manual .indd 30 10/03/2020 15:38 10/03/2020 15:38...
  • Page 31 When cleaning the filters, don’t knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 31 Di491 Intergrated Dishwasher Instruction Manual .indd 31 10/03/2020 15:38 10/03/2020 15:38...
  • Page 32 5. Remove the filter at the bottom of the dishwasher and use a sponge to soak up water in the sump. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 32 Di491 Intergrated Dishwasher Instruction Manual .indd 32 10/03/2020 15:38 10/03/2020 15:38...
  • Page 33 Periodic cleaning with a damp sponge will prevent this from occurring. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 33 Di491 Intergrated Dishwasher Instruction Manual .indd 33 10/03/2020 15:38...
  • Page 34 Please check the accompanying installation accessories (fixing for aesthetic door panel). Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 34 Di491 Intergrated Dishwasher Instruction Manual .indd 34 10/03/2020 15:38 10/03/2020 15:38...
  • Page 35 （ ） 20 MAX 8- 2 4- 2 Instruction manual DI491 Please keep this instruction manual for future reference (Unit: mm) should Di491 Intergrated Dishwasher Instruction Manual .indd 35 Di491 Intergrated Dishwasher Instruction Manual .indd 35 10/03/2020 15:38 10/03/2020 15:38...
  • Page 36 ） 20 MAX 8- 2 4- 2 (Unit: mm) (Unit: mm) Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 36 Di491 Intergrated Dishwasher Instruction Manual .indd 36 10/03/2020 15:38 10/03/2020 15:38...
  • Page 37 2. Insert the four long screws Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 37 Di491 Intergrated Dishwasher Instruction Manual .indd 37 10/03/2020 15:38 10/03/2020 15:38...
  • Page 38 1000mm. φ 40mm Drain pipe Instruction manual DI491 Please keep this instruction manual for future reference φ 40mm Di491 Intergrated Dishwasher Instruction Manual .indd 38 Di491 Intergrated Dishwasher Instruction Manual .indd 38 10/03/2020 15:38 10/03/2020 15:38...
  • Page 39 » Marble or granite work top: Fix the side with Screw. (7) 【Figure 7】 Figure 7 Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 39 Di491 Intergrated Dishwasher Instruction Manual .indd 39 10/03/2020 15:38 10/03/2020 15:38...
  • Page 40 , replace the socket, rather than using a adapter as they could cause overheating Please keep this instruction manual for future reference and burns. Di491 Intergrated Dishwasher Instruction Manual .indd 40 Di491 Intergrated Dishwasher Instruction Manual .indd 40 10/03/2020 15:38...
  • Page 41 Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 41 Di491 Intergrated Dishwasher Instruction Manual .indd 41 10/03/2020 15:38 10/03/2020 15:38...
  • Page 42 Have a proper outlet installed by a qualified electrician. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 42 Di491 Intergrated Dishwasher Instruction Manual .indd 42 10/03/2020 15:38 10/03/2020 15:38...
  • Page 43 Instruction manual DI491 Please keep this instruction manual for future reference Syphon Connection Insert the drain hose into a drain pipe with a Di491 Intergrated Dishwasher Instruction Manual .indd 43 Di491 Intergrated Dishwasher Instruction Manual .indd 43 10/03/2020 15:38 10/03/2020 15:38...
  • Page 44 7. All packing materials and printings should be taken out from the dishwasher. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 44 Di491 Intergrated Dishwasher Instruction Manual .indd 44 10/03/2020 15:38...
  • Page 45 The lid of the softer Check the lip. Ensure the fix is fine. is loose Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 45 Di491 Intergrated Dishwasher Instruction Manual .indd 45 10/03/2020 15:38 10/03/2020 15:38...
  • Page 46 Detergent left in Dishes block detergent cups. Re-loading the dishes properly. dispenser cups Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 46 Di491 Intergrated Dishwasher Instruction Manual .indd 46 10/03/2020 15:38 10/03/2020 15:38...
  • Page 47 Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 47 Di491 Intergrated Dishwasher Instruction Manual .indd 47 10/03/2020 15:38 10/03/2020 15:38...
  • Page 48 » If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 48 Di491 Intergrated Dishwasher Instruction Manual .indd 48 10/03/2020 15:38 10/03/2020 15:38...
  • Page 49 Capacity: 10 place settings Capacity: 10 place settings Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 49 Di491 Intergrated Dishwasher Instruction Manual .indd 49 10/03/2020 15:38 10/03/2020 15:38...
  • Page 50 220-240 V~ / 50 Hz Water pressure (flow pressure) 0.4-10 bar = 0.04-1 MPa Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 50 Di491 Intergrated Dishwasher Instruction Manual .indd 50 10/03/2020 15:38 10/03/2020 15:38...
  • Page 51 The manual is based on the European Union’s standards and rules. Instruction manual DI491 Please keep this instruction manual for future reference Di491 Intergrated Dishwasher Instruction Manual .indd 51 Di491 Intergrated Dishwasher Instruction Manual .indd 51 10/03/2020 15:38 10/03/2020 15:38...
  • Page 52 Caple Service T: 0117 938 1900 Fourth Way E: service@caple.co.uk Avonmouth www.caple.co.uk Bristol BS11 8DW Di491 Intergrated Dishwasher Instruction Manual .indd 52 Di491 Intergrated Dishwasher Instruction Manual .indd 52 10/03/2020 15:38 10/03/2020 15:38...
  • Page 53 DISH WA SH ER I NSTALLATIO N D I 4 9 1 A N D DI4 8 1 IN S TAL L AT ION www.caple.co.uk For more information visit www.caple.co.uk...
  • Page 54 For more information visit www.caple.co.uk...
  • Page 55 For more information visit www.caple.co.uk...
  • Page 56 For more information visit www.caple.co.uk...
  • Page 57 CU T- OU T D IM E N S IO N S Please note image is not to scale. 439± 1 mm Please refer to printed template supplied with dishwasher for correct scale. www.caple.co.uk For more information visit www.caple.co.uk...
