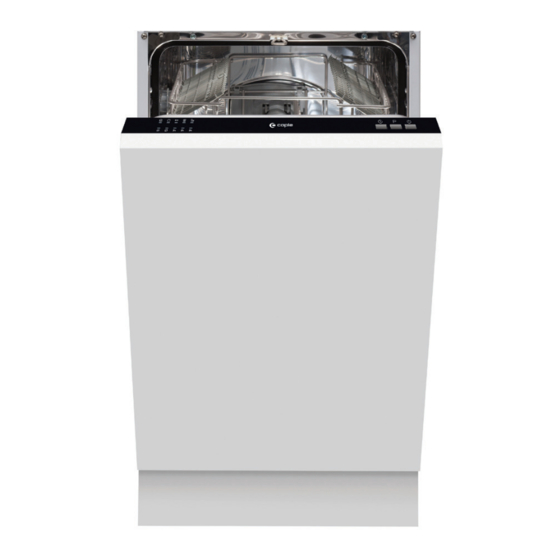

- Page 1 D i s h w a s h e r I n s t r u c t i o n M a n u a l D I4 82 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
Water Softener Rinse Aid Dispenser Fill the Detergent Dispenser Loading the Dishwasher Baskets Wash Cycle Table Programming the Dishwasher Auto Open Cleaning and Maintenance Installation Instructions Troubleshooting Caple Contact Details Instruction manual Di482 Please keep this instruction manual for future reference... -
Page 3: Safety Instructions
- To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. - Please unplug before cleaning or performing maintenance on the appliance. Instruction manual Di482 Please keep this instruction manual for future reference... - Page 4 - Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. - Check with a qualified electrician or Caple service representative if you are in doubt whether the appliance is properly grounded.
- Page 5 - The door should not be left open, since this could increase the risk of tripping. - The appliance may only be used with correctly adjusted door springs. Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 6 - If the supply cord is damaged, it must be replaced by Caple, its service agent or a similarly qualified person in order to avoid a hazard. - During installation, the power supply must not be excessively or dangerously bent or flattened.
- Page 7 - DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. Instruction manual Di482 Please keep this instruction manual for future reference...
-
Page 8: Environmental Protection
(placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. -
Page 9: Quick Operation Guide
4 Fill the dispenser 4 Fill the dispenser Select a programme and run the dishwasher the dishwasher the dishwasher 4. Fill the dispenser. 5. Select a programme and run the dishwasher. Instruction manual Di482 Please keep this instruction manual for future reference... -
Page 10: Control Panel
6 - Warning Indicator SALT If the “ ” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. Instruction manual Di482 Please keep this instruction manual for future reference... -
Page 11: Product Overview
Before using your dishwasher for the first time: » Set the water softener. » Add 1.5Kg dishwasher salt and then fill the salt container with water. » Fill the Rinse Aid dispenser. » Fill in detergent. Instruction manual Di482 Please keep this instruction manual for future reference... -
Page 12: Water Softener
61-98 43-69 6.1-9.8 N OT E : 1 N OT E : 2 °dH=1.25 °Clarke=1 1.78°fH=0.178mmol/l The manufactory setting: H3 °dH: German degree °fH: French degree °Clark: British degree Instruction manual Di482 Please keep this instruction manual for future reference... - Page 13 Instruction manual Di482 Please keep this instruction manual for future reference...
-
Page 14: Rinse Aid Dispenser
AT T E N T I O N : Only use branded Rinse Aid for dishwasher. Never fill the Rinse Aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance. Instruction manual Di482 Please keep this instruction manual for future reference... - Page 15 4. If there is no operation for 5 seconds, the setting will be successful. N OT E : » Press the power button to cancel the setting. Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 16 Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a programme with a higher temperature. Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 17 » Only use branded detergent aid for dishwasher. W A R N I N G : Dishwasher detergent is corrosive. Take care to keep it out of reach of children. Instruction manual Di482 Please keep this instruction manual for future reference...
-
Page 18: Fill The Detergent Dispenser
3 Close the flap by sliding it to the front and then pressing it down. Instruction manual Di482 Please keep this instruction manual for future reference epending on the soiling of water, setting may be different. -
Page 19: Loading The Dishwasher Baskets
» Some types of glasses can become dull after a large number of washes. » Silver and aluminium parts have a tendency to discolour during washing. » Glazed patterns may fade if machine washed frequently. Instruction manual Di482 Please keep this instruction manual for future reference... - Page 20 » Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. N OT E : Very small items should not be washed in the dishwasher as they could easily fall out of the basket. Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 21 The maximum diameter advised for plates in front of the detergent dispenser is of 19cm, this is to not hamper the opening of it. Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 22 Small pot mall Cutlery basket Cutlery basket Cutlery basket N OT E : Baskets loaded according to EN60436. NOTE: Baskets loaded according to EN60436. NOTE: Baskets loaded according to EN60436. Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 23 The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items. Raise upwards Fold downwards Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 24 W A R N I N G : Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down. N OT E : Baskets loaded according to EN60436. Instruction manual Di482 Please keep this instruction manual for future reference...
-
Page 25: Wash Cycle Table
Pour in the detergent (see the section entitled Salt, Detergent and Rinse Aid ). “ ” Instruction manual Di482 Loading the Dishwasher ). Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification Please keep this instruction manual for future reference “... -
Page 26: Programming The Dishwasher
» The dishwasher will start running again W A R N I N G : It is dangerous to open the door mid-cycle, as hot steam may scald you. Instruction manual Di482 Please keep this instruction manual for future reference... -
Page 27: Auto Open
It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one. Instruction manual Di482 Please keep this instruction manual for future reference... -
Page 28: Cleaning And Maintenance
The entire filter assembly should be cleaned once a week. Improper replacement of the filter may reduce the performance level of th and damage dishes and utensils. Step 1 Turn the filter in anti-clockwise direc ： Instruction manual Di482 Please keep this instruction manual for future reference... - Page 29 Instruction manual Di481 Please keep this instruction manual for future reference Instruction manual Di481 Instruction manual Di482 Please keep this instruction manual for future reference Please keep this instruction manual for future reference Di481 Intergrated Dishwasher Instruction Manual .indd 29...
- Page 30 5. Remove the filter at the bottom of the dishwasher and use a sponge to soak up water in the sump. N OT E : If your dishwasher cannot work because of the ice build up, please contact a qualified plumber or serviceman. Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 31 One of the factors that causes odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring. Instruction manual Di482 Please keep this instruction manual for future reference...
-
Page 32: Installation Instructions
H O W TO C O N N E C T T H E S A F E T Y S U P P LY H O S E Instruction manual Di482 Please keep this instruction manual for future reference 1. - Page 33 H O W TO D I S C O N N E C T T H E S A F E T Y S U P P LY H O S E 1. Turn off the water. 2. Unscrew the safety supply hose from the TAP. Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 34 Minimum space when the door is opened. （ ） 20 MAX hetic door panel dimensions and installation hetic door panel could be processed according to the Figure 3. Instruction manual Di482 Please keep this instruction manual for future reference 8- 2...
- Page 35 The aesthetic door panel should be processed in accordance with the illustrated dimensions 416 0.2 ± 390 0.2 ± 287.5 0.2 ± 2- 2 （ ） 20 MAX 8- 2 4- 2 (Unit: mm) Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 36 1. Remove the short screws four short insert the four long . Remove the four screws screws short screws insert the four long screws 2. Insert the four long screws Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 37 The top of the hose must be less than Front Counter 1000mm. Drain pipe NOTE The top of the hose must be less than 1000mm. 40mm Drain pipe Instruction manual Di482 Please keep this instruction manual for future reference φ 40mm...
- Page 38 » Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws. » Marble or granite work top: Fix the side with Screw. Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 39 F E E T E X T E N S I O N S : Feet extensions are supplied. These can be fitted by screwing into the base of the existing feet. Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 40 AT T E N T I O N : After installation, please make sure to keep this manual. The content of this manual is very helpful to the users. Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 41 4. The wires are tightly connected. 5. The power is switched on. 6. The inlet and drain hoses are not knotted. 7. All packing materials and printings should be taken out from the dishwasher. Instruction manual Di482 Please keep this instruction manual for future reference...
-
Page 42: Troubleshooting
Traces of salt have cutlery adding dishwasher salt. gotten into the wash cycle. The lid of the softer Check the lip. Ensure the fix is fine. is loose Instruction manual Di482 Please keep this instruction manual for future reference... - Page 43 Aluminium utensils have rubbed Use a mild abrasive cleaner to eliminate those marks. on dishes against dishes. Detergent left in Dishes block detergent cups. Re-loading the dishes properly. dispenser cups Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 44 » If overflow occurs, turn off the main water supply before calling a service. » If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 45 550mm (with the door closed) Depth (D1): Depth (D1) 550mm (with the door closed) 1150mm (with the door opened 90˚) Depth (D2): Depth (D2) 1150mm (with the door opened 90 °) Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 46 N OT E S : Instruction manual Di482 Please keep this instruction manual for future reference...
- Page 47 N OT E S : Instruction manual Di482 Please keep this instruction manual for future reference...
-
Page 48: Caple Contact Details
Caple Service T: 0117 938 1900 Fourth Way E: service@caple.co.uk Avonmouth www.caple.co.uk Bristol BS11 8DW...
