Summary of Contents for Caple Wi6130

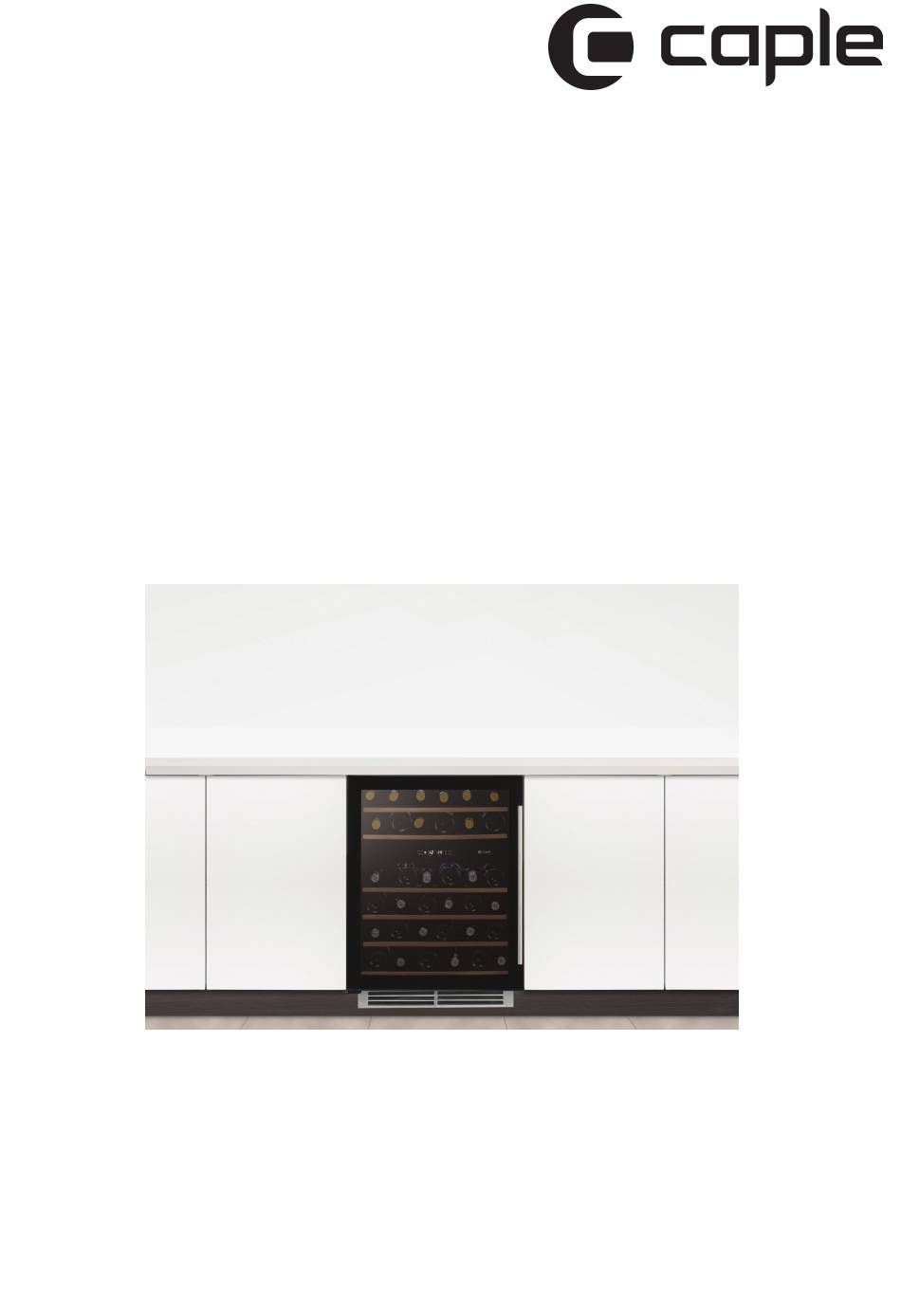

- Page 1 Instruction manual for slot-in wine cabinet Model code: Wi6130/Wi6130WH Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
Using the shelves How to change the door opening Fitting a kitchen plinth Installation dimensions Fixing the top bracket Using the foot sliders Care and maintenance Troubleshooting guide Caple Service contact details Defrosting/condensation The humidity system Recommended storage temperatures Recommended drinking temperatures... -
Page 3: Important Safety Instructions
The wine cabinet should be installed in a suitable place in order to avoid touching the l compressor with the hand. If the supply cord is damaged, it must be replaced by a Caple service agent or a similarly l qualified person in order to avoid a hazard. -
Page 4: Installation Instructions
Plug the wine cabinet into an exclusive, properly installed-grounded wall outlet. Do not under • any circumstances cut or remove the third (ground) pin from the plug. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorised Caple service centre. Attention Store wine in sealed bottles •... -
Page 5: Operating You Wine Cabinet And Setting The Temperature
Operating your wine cabinet and setting the temperature Please use the cabinet within a ambient temperature of 5-32°C, if the ambient temperature is higher or lower than this, it will cause a temperature fluctuation in the cabinet and may prevent it reaching 5-18 °C. Control Panel “... -
Page 6: Using The Shelves
Note If the unit is unplugged, power is lost, or turned off you must wait 3 to 5 minutes before restarting • the unit. If you attempt to restart before this time delay, the wine cabinet will not start. • When you use the wine cabinet for the first time or restart the cabinet after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. -
Page 7: How To Change The Door Opening
How to change the door opening This appliance has reversible doors, but is delivered with a right hinged door. The left hand hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit please follow the below directions. -
Page 8: Fitting A Kitchen Plinth
This model is recessed to fit a kitchen plinth. A H55mm vent slot is required in the plinth to ensure air is able to ventilate the appliance correctly, please see the below diagram. Failure to include this vent slot will invalidate the guarantee. Alternatively a Caple GRILL/SENSE600 stainless steel plinth grill can be installed. -
Page 9: Fixing The Top Bracket
Fixing the top bracket After installing the wine cabinet, please open the door, adjust the fixing bracket (a) and fix this in position with three screws (c) using a screwdriver (d) into the work surface/kitchen cabinet. a) Top fixing bracket b) Kitchen Cabinet c) Screw d) Screwdriver... -
Page 10: Care And Maintenance
Care and maintenance Cleaning your wine cabinet Turn off the power, unplug the appliance, and remove all items including shelves and rack. • Wash the inside surfaces with a warm water and baking soda solution. The solution should be • about 2 tablespoons of baking soda to 2 pints of water. -
Page 11: Troubleshooting Guide
Problems with your wine cabinet You can solve many common wine cabinet problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling Caple Service. Troubleshooting Guide... -
Page 12: Defrosting/Condensation
Defrosting/condensation Your wine cabinet is designed with an “Auto-cycle” defrost system. When the RUN cycle is OFF, the refrigerated surface of the wine cabinet (interior rear wall) defrosts automatically. The defrosted water is channelled into a drain pan which is located at the back of the cabinet next to the compressor from where it evaporates. - Page 13 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk...
