Tube
Amp
TUBE POWERAMP
810
Operator´s Manual
Please, first read this manual carefully!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUBE POWERAMP 810 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Engl TUBE POWERAMP 810

Summary of Contents for Engl TUBE POWERAMP 810

  • Page 1 Tube TUBE POWERAMP Operator´s Manual Please, first read this manual carefully!
  • Page 2 Tube Tube Technology Technology...
  • Page 3 A and B volume controls you dial in . Volume A/B may be selected via a different volume settings footswitch or an external MIDI Switcher (e.g. ENGL Z11-S.A.C.). You're sure to find that comes in very handy, especially when Volume A/B...

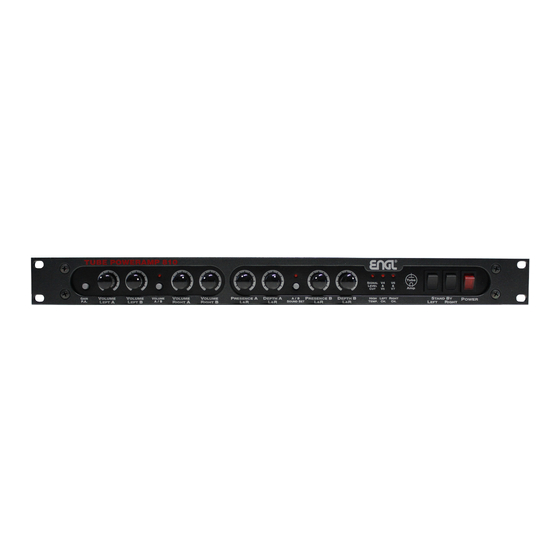

  • Page 4: Front Panel Features

    Instructions for the Prevention of Fire, Electrical Shock and Injury. Be sure to read it before you plug in and power up the Power Amp! Contents: 1. ENGL Power Amp 810, 19" stereo rack power amp; 2. mains cord; 3. this manual;...
  • Page 5 3 VOLUME LEFT B Volume control B for the left power amp channel. 4 VOLUME A/B switches between Volume A controls and Volume B controls, "off position" (button not engaged): Volume A controls activated, red LED off; "on position" (button engaged): Volume B controls activated, red LED lights up; This feature can also be remote-controlled via a footswitch or a MIDI Switcher connected to jack 20;...
  • Page 6 Sound Set A Presence A knob setting between 1 and 4 o'clock; Depth A knob setting around 12 o'clock; Sound Set B Presence B knob setting between 9 and 1 o'clock; Depth B knob setting somewhere in the 12-to-3 o'clock range; Activate the preamp's clean channel and Sound Set A : Lots of high end and a...
  • Page 7 A tip from the designer: I suggest you get into the habit of using standby during short breaks. In this mode, current is not piped through the power tubes, so they don't get as hot (due to the lack of anode dissipation) and are spared considerable wear. The power amp is ready to run when you flip the Standby switch because the tubes are already warm and don't require time to heat up.
  • Page 8 20 FOOTSWITCH: VOLUME A/B, SOUND SET A/B Use this 1/4" stereo jack to connect a conventional footswitch with two switching functions (for example, the ENGL Z-4, see page 15 for additional information) to Volume A Volume B 1. Switch between (Mono contact).

  • Page 9: Important Note

    A tip from the designer: You can connect the following combinations of speakers or cabinets: -> An 8-ohm cabinet to the 8-ohm jack of each channel; -> A 16-ohm cabinet to the 16-ohm jack of each channel; -> Two 16-ohm cabinets connected in parallel to the 8-ohm jack of each channel; In theory, you could also connect two 8-ohm speakers or cabinets to each channel.

  • Page 10: Troubleshooting

    Running the amp at mains voltages exceeding the nominal mains input voltage over longer periods can also shorten component life. Replace tubes with selected tubes that satisfy ENGL selection criteria to forestall microphonic properties, undesirable noise and unbalanced power amp signals.
  • Page 11 -> A tube, internal fuse or other component may be defective. Be sure to take the Power Amp 810 to an authorized service center. One channel is providing far less power than it should. -> A defective power tube triggered one of the fuses (the power tube fuse has blown). Once the corresponding power amp channel is activated via the Standby switch, the two LEDs LEFT Ch.
  • Page 12 Technical Data approx. 20 watts max per channel.; Output power: adjusted accordingly to 8 and 16 ohms; Input sensitivity 0 dB nominal, max. 10 dB P.A: Low Gain: -20 dB nominal, max. -10 dB P.A. High Gain: approx. 120 watts max.; Power consumption: Fuses: Mains fuse:...
  • Page 13 Tube Map Power Amp 810: Output Transformer LEFT RIGHT LEFT RIGHT EL84 EL84 EL84 EL84 Mains ECC83 ECC83 ECC83 Transformer RIGHT LEFT RIGHT BIAS LEFT V5 V6 Power Tube Fuses the tubes and their function: V1 - ECC83 (12AX7): input stage, left & right channel; grade: FQ selected; V2 - ECC83 (12AX7): phase splitter left channel;...
  • Page 14 Space for User Notes...

  • Page 15: Front Panel Layout

    5 and page 8 for more details. As an alternative to a two-way footswitch, you can connect FOOTPEDAL a MIDI switcher (the ENGL Z11-S.A.C. or the ENGL MIDI ON/OFF ON/OFF Footcontroller Z-15 will do nicely) to this jack (20)
  • Page 16 Tube Tube Technology Technology Gerätebau GmbH Germany Internet: www.engl-amps.com Text, design, graphics and layout by Horst Langer, Amp Designer...
