Page 1

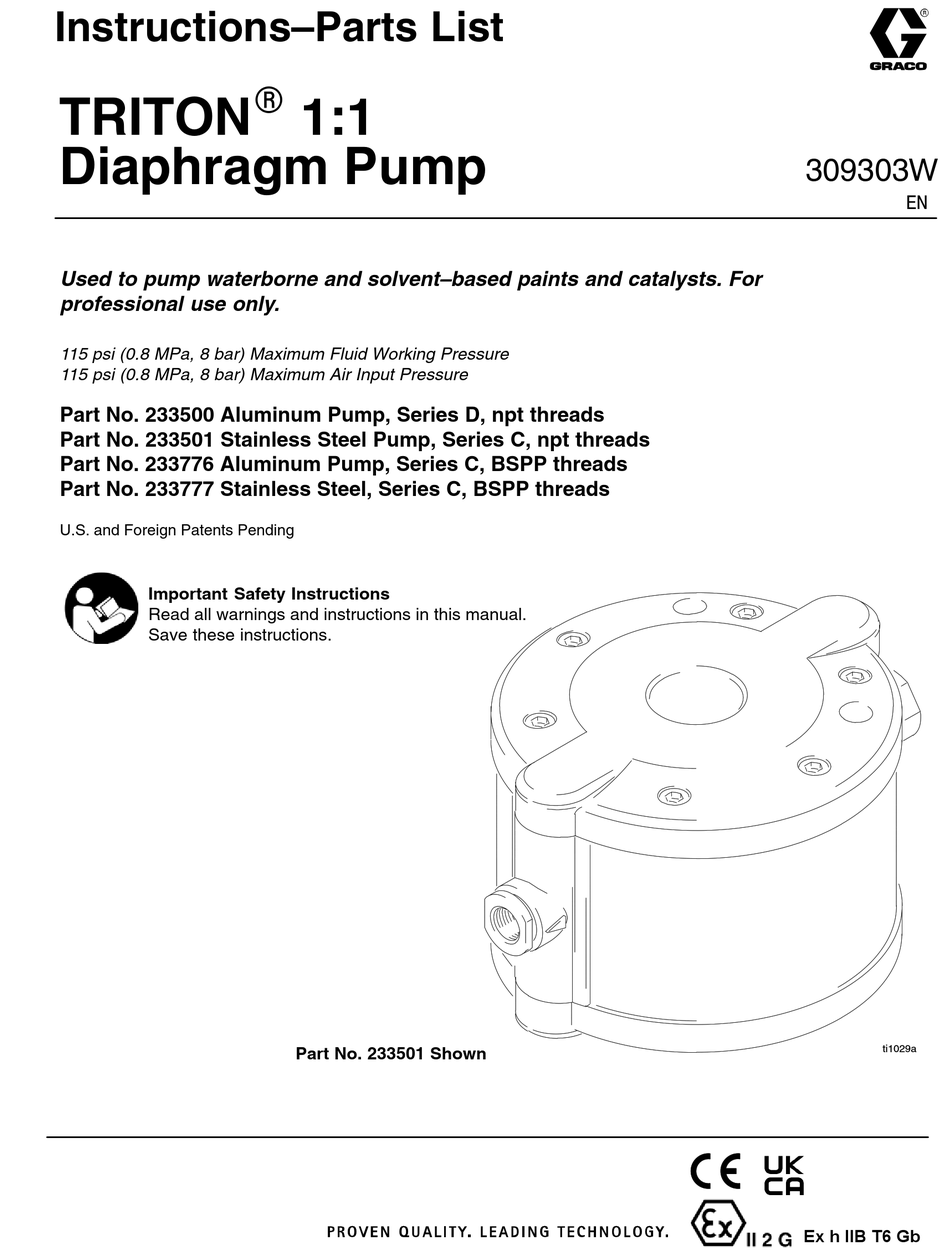

Instructions–Parts List TRITON Diaphragm Pump 309303W Used to pump waterborne and solvent–based paints and catalysts. For professional use only. 115 psi (0.8 MPa, 8 bar) Maximum Fluid Working Pressure 115 psi (0.8 MPa, 8 bar) Maximum Air Input Pressure Part No. 233500 Aluminum Pump, Series D, npt threads Part No.
D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
Page 4
WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor air ventilation, open flames, or sparks can cause a hazardous condition and result in fire or explosion and serious injury. D Ground the equipment. Refer to Grounding on page 7. D If there is any static sparking or you feel an electric shock while using this equipment, stop pump- ing immediately.
Page 5
WARNING PRESSURIZED FLUID HAZARD Spray from the gun, hose leaks, or ruptured components can splash fluid in the eyes or on the skin and cause serious injury. D Do not stop or deflect fluid leaks with your hand, glove, or rag. D Follow the Pressure Relief Procedure on page 11 before cleaning, checking, or servicing the equipment.
Never operate the spray gun unless ventilation fans are operating. D Always use Genuine Graco Parts and Accessories, Check and follow all of the national, available from your Graco distributor. If you supply state, and local codes regarding air your own accessories, be sure they are adequately exhaust velocity requirements.
Page 7
Installation Grounding WARNING FIRE AND EXPLOSION HAZARD This pump must be grounded. Before operating the pump, ground the system as explained below. Also read the sec- tion FIRE AND EXPLOSION HAZARD on page 4. ti1030b To reduce the risk of static sparking, ground the pump Fig.
Page 8
Installation Air Line b. Locate a bleed-type master air valve (B) close to the pump, to relieve trapped air. See the WARNING at left. Locate another air valve (E) WARNING upstream from all air line accessories, to isolate them during cleaning and repair. A bleed-type master air valve (B) is required in your system to relieve air trapped between this valve and the pump.
Page 9
Installation Wall Mount HVLP Spray Installation Shown TRITON 1:1 Pump Bleed-type master air valve (required for pump) Air supply line Air line filter Air line shutoff valve Pump air regulator G Gun air regulator (used in spray system only) Fluid pressure regulator (used in spray system only) Drain/circulation valve Drain tube...
Page 10
Installation Fluid Suction Line CAUTION D Screw the suction line (L) into the pump inlet (M) Some systems may require installation of a pressure snugly. Use a compatible liquid thread sealant on relief valve at the pump outlet to prevent overpres- connections to prevent air from getting into the fluid surization and rupture of the pump or hose.
Operation Pressure Relief Procedure 4. Check all fittings to be sure they are tight. Use a compatible liquid thread sealant on all male threads. Tighten the fluid inlet and outlet fittings WARNING snugly. Do not overtighten the fittings. NOTE: Before using he pump, re–torque fluid The system remains pressurized until pressure is cover screws (38) to 10 ft–lb (13.6 NSm).
Maintenance Tightening Threaded Connections Storage Before each use, check all hoses for wear or damage. Before storing the pump, always flush it and relieve Replace as necessary. Check that all threaded con- pressure. nections are tight and leak-free. NOTE: Periodically, re–torque fluid cover screws (38) Preventive Maintenance Schedule to 10 ft–lb (13.6 NSm).
Page 13
Troubleshooting PROBLEM CAUSE SOLUTION Pump runs sluggishly. Worn or damaged carriage o-rings. Service air valve. See page 18. Pump runs erratically. Clogged suction line or inlet strainer. Clear. Sticking or leaking ball check Disassemble and clean ball checks. valves. Replace worn parts. See page 16. Pump runs too fast.
Service Remove the Fluid and Side Covers 3. Remove the pump from its mounting. Tools Required CAUTION D Torque wrench Be careful that the ball checks do not fall out when D 2.5 mm allen wrench you remove the fluid covers (32). D 6 mm allen wrench D Adjustable wrench 4.
Page 15
Service Remove the Fluid and Side Covers Align 10 ft-lb (13.6 NSm) (continued) 28 in-lb (3.1 NSm) Replace seals whenever cover (32) is removed. Reassembly 1. Clean all parts and inspect for wear or damage. Replace parts as needed. 2. If necessary, reinstall the felt dampener (29) and side cover (31).
Service Ball Check Repair Reassembly 1. Reinstall the inlet and outlet ball checks on one Tools Required side of the pump. The inlet and outlet checks are D O-ring pick assembled differently. Install the parts exactly as Disassembly shown in Fig. 4. NOTE: Ball Check Repair Kit 245067 is available.
Service Diaphragm Repair 3. Thread an M8 hexnut (A) onto an M8 bolt. Screw the bolt into the shaft (5) until it bottoms out. Tools Required Thread the nut down to the shaft to lock it. D M8 bolt D M8 hexnut 4.
Service Air Valve Repair 5. Remove the retaining rings (11) and plug (9) from both sides, and slide the carriage (7) from the Tools Required center housing (1). Remove the o-rings (8, 10) D 3 mm allen wrench from the carriage and the plug. D Needlenose pliers 6.
Page 19
Service Air Valve Repair (continued) 5. Lubricate the large o-ring (15{) and the two small o-rings (14{) and install them on the air valve plate Reassembly (13{). Align the point on the plate with the arrow on the center housing (1) as shown in Fig. 6. 1.
Service Shaft Repair 7. If you could not remove one diaphragm from the shaft, place the shaft in a vise with soft jaws. Tools Required Unscrew the remaining diaphragm (6) from the D Needlenose pliers shaft (5) by hand. D O-ring pick D Retaining ring removal tool 8.
Page 22
Parts Part No. 233500 Aluminum Pump, Series D, npt threads Part No. 233501 Stainless Steel Pump, Series C, npt threads (Shown) Part No. 233776 Aluminum Pump, Series C, BSPP threads Part No. 233777 Stainless Steel Pump, Series C, BSPP threads Detail of Grounding Screw ti1030b 309303...
Parts NOTE: Purchase items 36–39 locally. Ref. Ref. Part No. Description Qty. Part No. Description Qty. 15J732 HOUSING, center; 197674 COVER, housing; for Part No. 233500; aluminum for Part Nos. 233500 and 233776; 198894 HOUSING, center; aluminum for Part No. 233501; 197680 COVER, housing;...
Technical Data Category Data Maximum fluid working 115 psi (0.8 MPa, 8.0 bar) pressure Air pressure operating range 12 to 115 psi (.08 to 0.8 MPa, 0.8 to 8.0 bar) Ratio Maximum free flow delivery 8.5 gal./min (32 l/min) 50 to 176_ F (10 to 80_ C) Operating fluid temperature range Maximum suction lift...
Dimensions BOTTOM VIEW 4.53 in. 3/8 npt or 3/8 BSPP Fluid Outlet (115 mm) Two 0.35 in. (9 mm) diameter holes, for mounting pump 1/4 npt or 1/4 BSPP Air Inlet 3/4 npt or M26 x 1.5 Fluid Inlet 4.1 in. (104 mm) SIDE VIEW SIDE VIEW...
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
