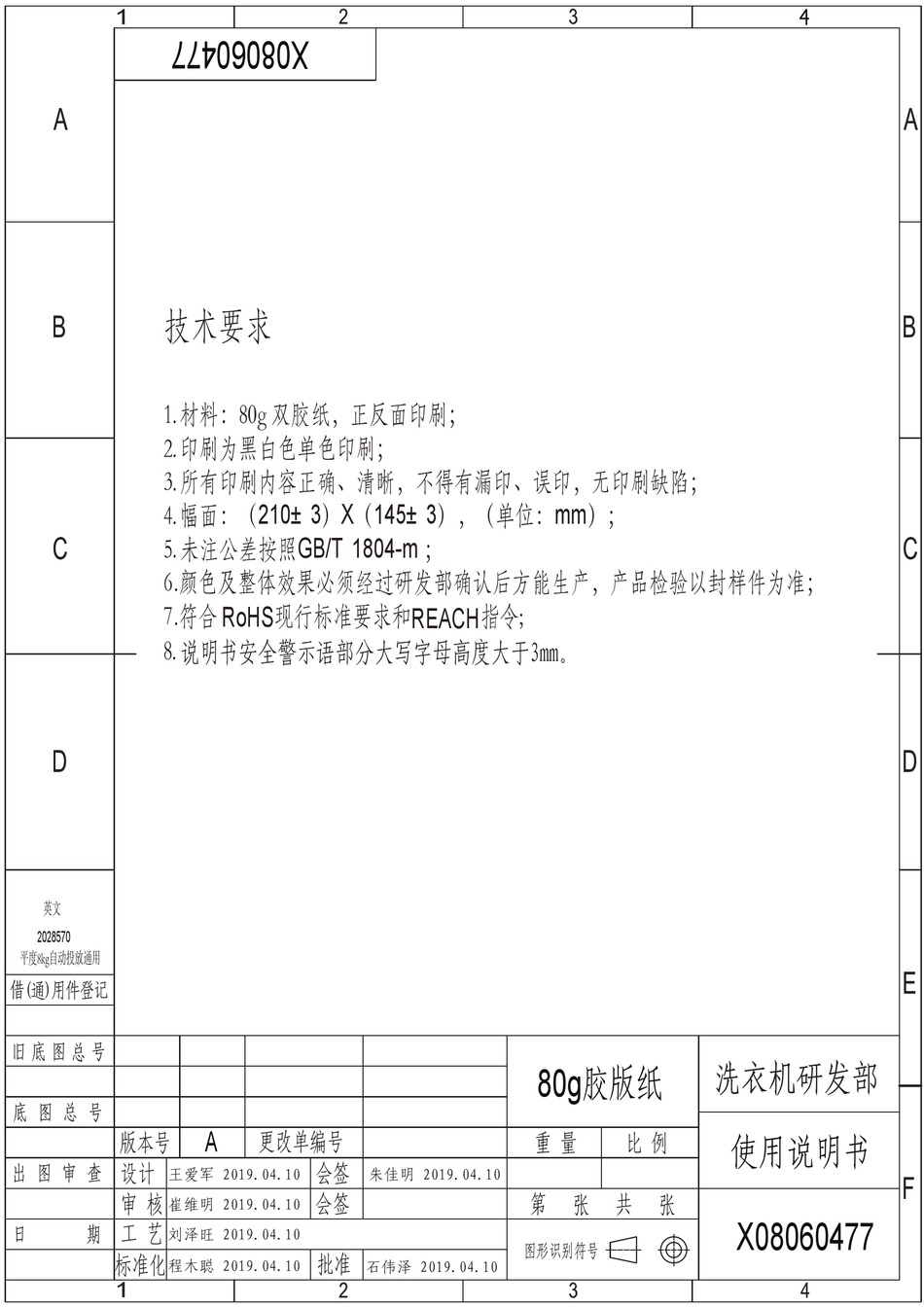

技术要求
1. 材料：80g 双胶纸，正反面印刷；
2. 印刷为黑白色单色印刷；
3. 所有印刷内容正确、清晰，不得有漏印、误印，无印刷缺陷；
幅面：（210± 3）X（145±
4.
5. 未注公差按照GB/T 1804-m ；
6.颜色及整体效果必须经过研发部确认后方能生产，产品检验以封样件为准；
7.符合 RoHS 现行标准要求和 REACH 指令;
8.
说明书安全警示语部分大写字母高度大于3mm。
英文
2028570
平度8kg自动投放通用
版本号
设计
王爱军 2019.04.10
审 核
崔维明 2019.04.10
工 艺
刘泽旺 2019.04.10
标准化
程木聪 2019.04.10
A
更改单编号
会签
朱佳明 2019.04.10
会签
批准
石伟泽 2019.04.10
3），（单位：mm）；
80g胶版纸
重 量
第
张 共
图形识别符号
比 例
使用说明书
张
X08060477

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WH8014V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hisense WH8014V

Summary of Contents for Hisense WH8014V

  • Page 1 技术要求 1. 材料：80g 双胶纸，正反面印刷； 2. 印刷为黑白色单色印刷； 3. 所有印刷内容正确、清晰，不得有漏印、误印，无印刷缺陷； 幅面：（210± 3）X（145± 3），（单位：mm）； 5. 未注公差按照GB/T 1804-m ； 6.颜色及整体效果必须经过研发部确认后方能生产，产品检验以封样件为准； 7.符合 RoHS 现行标准要求和 REACH 指令; 说明书安全警示语部分大写字母高度大于3mm。 英文 2028570 平度8kg自动投放通用 80g胶版纸 更改单编号 版本号 重 量 比 例 使用说明书 设计 会签 王爱军 2019.04.10 朱佳明 2019.04.10 审 核 会签...
  • Page 2 X08060477A...

  • Page 3: Safety Information

    SAFETY INFORMATION...
  • Page 4 SAFETY INFORMATION The manufacturer reserves the right for any modifications on the product which might be deemed necessary or useful without informing about it in this IFU. Before operating your new washing machine, please read this instruction carefully, and keep it for future reference. If you have lost it accidentally, ask customer service for e- copy or hard copy.
  • Page 5 For appliances with ventilation openings in the base, that a carpet must not obstruct the openings. Children of less than 3 years should be kept away unless ensure continuously supervised. The maximum permissible inlet water pressure, 1 MPa, for appliances intended to be connected to the water mains. The minimum permissible inlet water pressure, 0.1 MPa, if this is necessary for the correct operation of the appliance.
  • Page 6 that that The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for there cyclingof electrical and electronic equipment.

  • Page 7: Description Of The Washing Machine

    BEFORE THE FIRST WASH CYCLE Clean the outside of the washing machine with a damp cloth. Do not use abrasive detergents. Never open the door forcibly or use it as a step. To remove any residual water used during testing by the manufacture r, we recommend that you carry out a short wash cycle without laundry.
  • Page 8 middle compartment Open the door. compartments compartment compartment Powder detergent compartment（Middle） When the auto dosing function is cancelled, please place the detergent into this compartment.

  • Page 9: Draining Residual Water

    unds 1. While holding down the release lever on the inner of the drawer, slide open the drawer and remove it from the machine. Select the “Rinse+Spin” programme,reduce the speed to 1000rpm and strat Open the lids of both compartments, add water and shake to loosen/remove soap residue.
  • Page 10 Put a flat container under filter door and then drain with emergency drain pipe (see [draining residual water] for specific operation methods). Then, loosen filter anticlockwise and completely unscrew and remove the filter. Check the supply hose regularly for brittleness and cracks and replace it if necessary using a new hose of the same type(available from After-Sales Service or specialist dealer).
  • Page 11 solv and the power switched remove some Spin compartment detergent compartment...

  • Page 12: Fault Code

    Fault code Hot / Cold fill fault - For Models with Dual Inlets The washer stops when the program is running. The display window shows fault code “F01”，“F03”, “F13”，“F14”, “F24”, else fault codes from “F04” to “F98” If you wish to connect hot and cold water supply (Fig.1): 1 Fix the red marked inlet hose to the hot water tap and to the inlet valve with the red or “Unb”.

  • Page 13: Electrical Connection

    Spin Start/Pause TRANSPORT/HANDING If fault code “F13” is shown Door lock is abnormal. Start program for 20 sec and unlock the washer door (PTC) to check whether the door is closed. Open or close it again. After fault is removed, press “Start/Pause” key. If fault occurs again, disconnect power supply and contact with after-sale service.
