Larson Electronics LE Series Instruction Manual

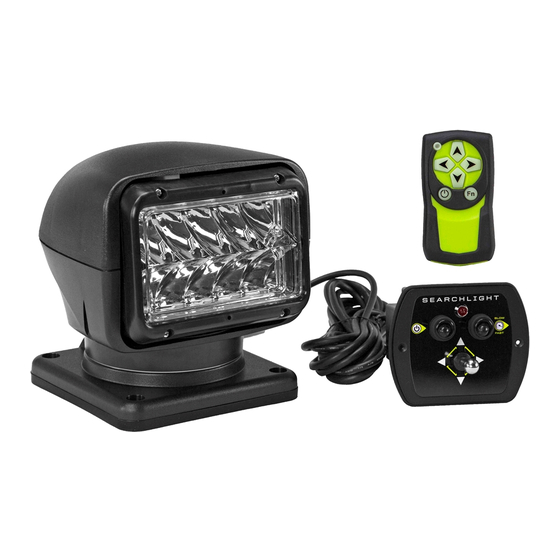

Thank you for your purchase of the Larson Electronics Remote Control LED Spotlight.

WARNING:

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE. CRITICAL SAFETY INSTRUCTIONS:
INSTALLATION SHOULD ONLY BE CONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY
•
RELEVANT LOCAL BUILDING CODES.
RISK OF FIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF FIXTURE'S ELECTRICAL
•
SYSTEMS. IF NOT QUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.
BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.
•
MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE FIXTURE'S RATED VOLTAGE.
•
• TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP
OBJECTS. SUITABLE FOR DAMP LOCATIONS.

SAFETY NOTICE:

◎
If replacing LED module, the LED module connector should be connected correctly for positive and
negative wires.
RED and BLUE: Positive (+)
BLACK and BROWN: Negative (-)
◎
FCC RULE Part. 15.21：Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
◎
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
◎
This searchlight is a Radio Frequency (RF) device which operates on Channel 433.92 MHz. It will send out RF energy
when it is in operation.
1. RF energy may affect some electronic equipment.
2. Some electronic equipment on vehicles or boats may be affected by RF energy.

INSTALLATION:

Warning: Check product label for correct input voltage!
Complete connection to power source outputting the correct voltage for your spotlight. See next page for operation
information. See mounting templates on pages 3-5, if needed.
Larson Electronics, LLC
Remote Control LED Spotlight
Instruction Manual
Phone: (877) 348-9680

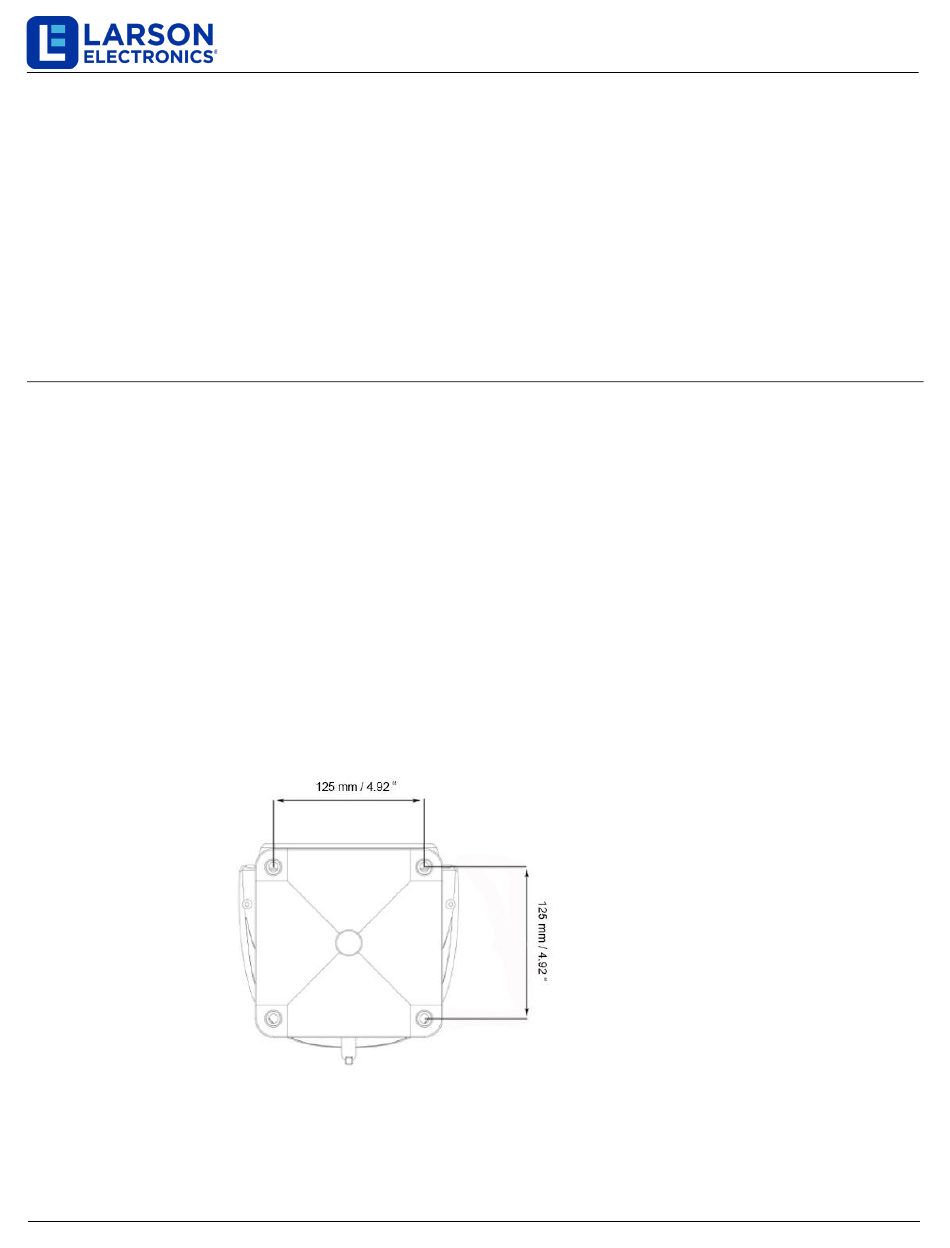

Surface mounting applications are secured
via 4 pre-drilled mount holes at the corners of
the spotlight base.
Magnet mount applications are equipped with
a powerful magnet in the base, allowing the
light to be secured to any clean, flat, magnetic
surface.
Fax: (903) 498-3364
LE-XXXX Series
www.larsonelectronics.com
1 of 5
