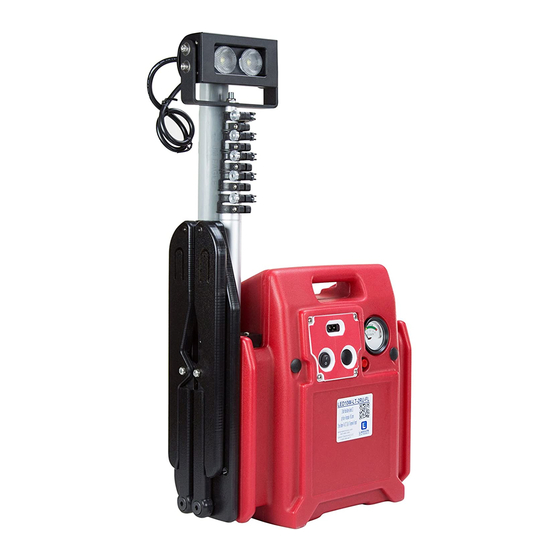

Larson Electronics LED10W-LT User Manual

Larson Electronics LLC
9419 E US HWY 175, Kemp, TX 75143 - P: (800) 369-6671 - F: (903) 498-3364

BATTERY SPECIFICATIONS

 12 volt output
 33 Amp hour AGM sealed lead acid
 Built-in automatic charger rated for continuous duty
 Voltage indicator gauge with push-to-test button
 External charge cord receptacle, U.S. or foreign power cord supplied
 Battery rated for 300+ full discharge cycles
 3-5 year estimated service life
 1 year warranty

SET-UP

1. Charge unit for 24 hours when new and every three months thereafter to maintain a full
charge (Charge monthly in hot weather)
2. Do not charge or use this light in hazardous location
3. Extend retractable legs if necessary for uneven terrain
4. Extend aluminum pole to desired height and tighten each pole section into position

OPERATION

1. Single head light will operate over 40 hours on a full charge
2. Dual head light will operate over 20 hours on a full charge
3. The power port provided can be used to operate a cell phone, a laptop computer, or any
of Larson Electronics' handheld light with cigarette plug. The power port can be used as
a quick charge inlet for the light from an automobile's 12-volt power port.

SAFETY AND USAGE INFORMATION

1. Read these instructions completely before using the products and save them for future
reference.
2. Do not use unit to recharge dry cell batteries
3. Do not jump-start or attempt to recharge a frozen battery.
4. Charge unit in a well-ventilated area.
5. All batteries are affected by temperature changes, and the unit's small, lightweight
battery is more sensitive to storage temperature than a standard automotive battery.
Temperatures above 68° F (20° C) decrease amperage output. The ideal storage
environment for emergency use is at room temperature.
www.LarsonElectronics.com
LED10W-LT
