Larson Electronics Golight GL-2 GT Series Instruction Manual

Congratulations

You are now the owner of one of the finest remote control searchlights available today. Thank you for letting Larson
Electronics assist you in your lighting application needs. We're proud of our products and the technology that we've
developed to ensure our customers the most durable, versatile and power-ful searchlights in the lighting industry.
Please read these instructions before using your new Golight Radioray.

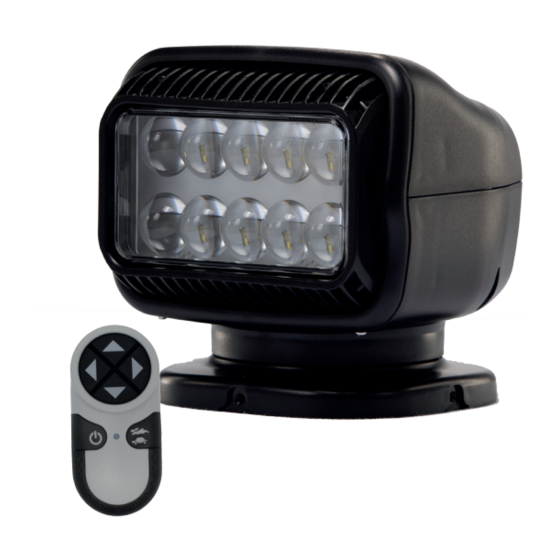

The Golight® RadioRay® GL-2XXXGT Series spotlights are designed
to be permanently attached to a vehicle and operated by a wireless
remote control. Each spotlight has 370° horizontal rotation and 135°
vertical tilt.

The RadioRay GT Includes:

• RadioRay® GT Spotlight
• Wireless Handheld Remote with two A23 12V Batteries
• Wireless Dash Remote (if applicable) with two A23 12V Batteries
and four mounting screws.
• Stainless Steel Mounting Plate and Black Rubber Mounting Gasket
• Mounting Hardware Package with four rounded head sheet metal screws and four flat head machine screws
• Rockguard (if applicable)

MOUNTING INSTRUCTIONS - SPOTLIGHT

1. Determine the location for the light on your vehicle. This should be a
flat surface. The small arrow on the base indicates the normal forward
direction of the light. The light will rotate to the left of this arrow 185
degrees and to the right 185 degrees. The lamp will tilt down 45
degrees and tilt up 90 degrees. The location should take into
consideration this range of motion to maximize usability. Keep in mind
the swing diameter is 261.4 mm (10.3 inches) from the center of the
mounting plate – see Figure 1. This allows for clearance as the light is
rotating.
3. Drill a center hole in mounting surface for passage of power leads.
Minimum suggested diameter is 6 mm (1/4 inch).
4. Place the black mounting gasket under the mounting bracket and
attach the bracket and gasket to vehicle using preferred hardware.
Silicone or other like sealants should not be used around the
mounting gasket as it will limit the ability to drain water properly.
Larson Electronics, LLC
Golight GL-2XXXGT Series
Instruction Guide
Phone: (800) 369-6671
Figure 1
Figure 1- Spotlight - Bottom View Looking Up - Dimensions in mm
Figure 2 - Steel Mounting Bracket - Dimensions in mm
Fax: (903) 498-3364
GL-2XXXGT Series
REQ'D SWING
DIAMETER
www.larsonelectronics.com
Figure 2
1 of 5
