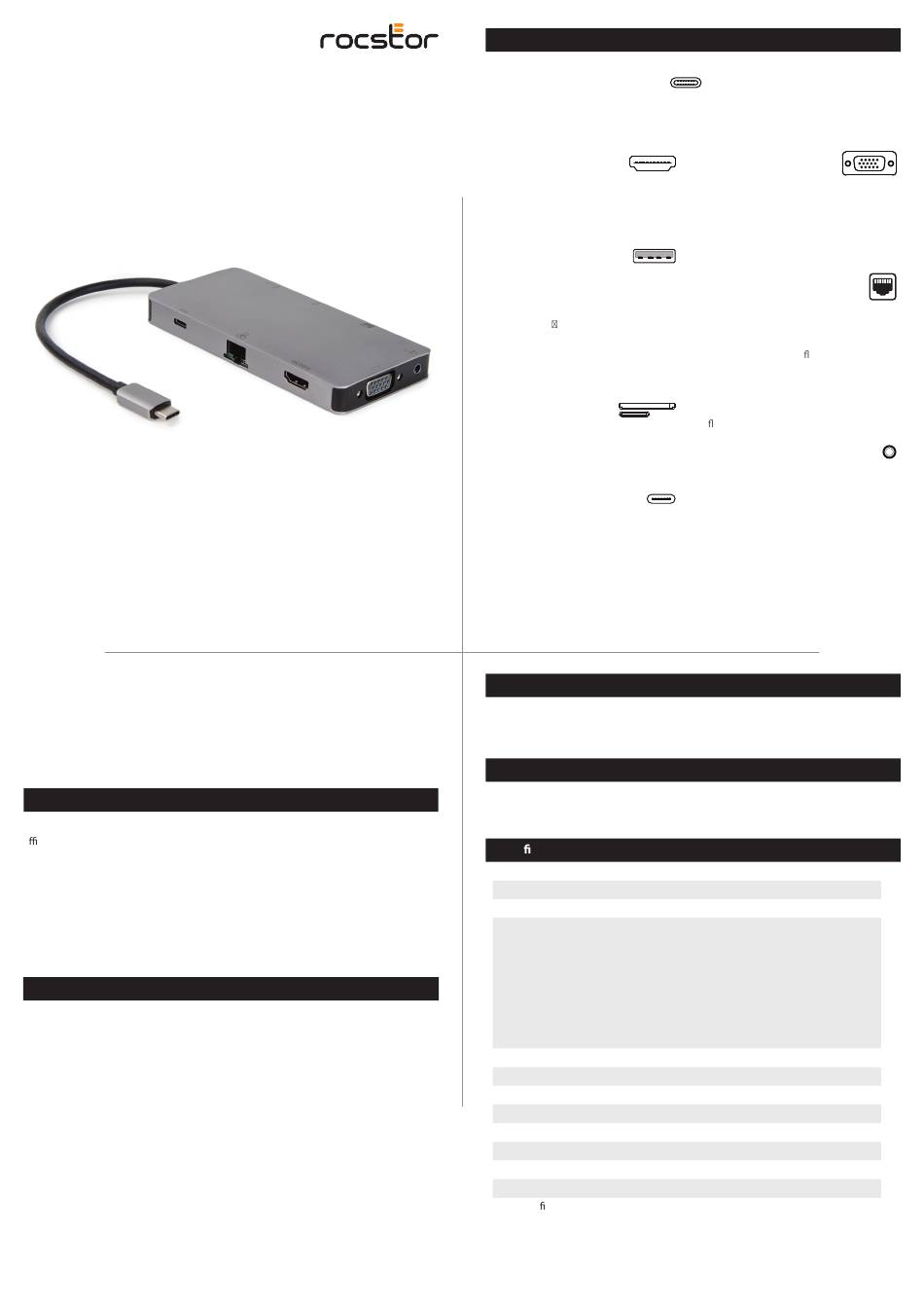

Rocstor Y01H01-AG User Manual

USB-C Multiport HUB Adapter - 9 Port
User Manual
Congratulation
Thank you for purchasing the Rocstor USB-C Multiport HUB Adapter - 9
results and safety, please read these instructions before connecting, operating or using this
product. Please keep this manual for future needs.
Introduction

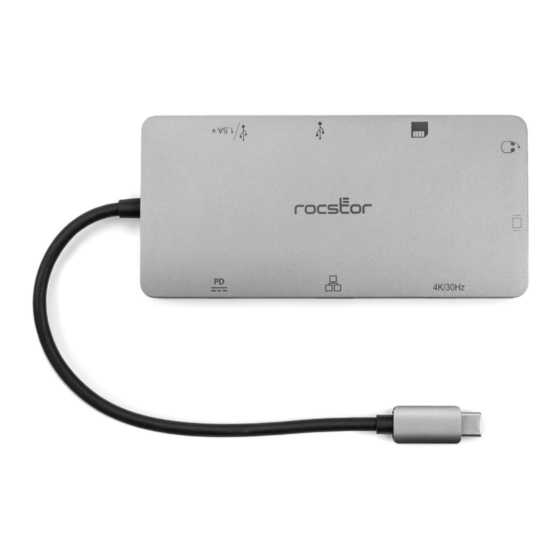

This is a Type-C 9-in-1 multiple ports adapter which provides most advanced,
e cient solution to extend a single Type-C port to be multiple ports. It integrates
video, data and power ports that allows to connect 2 displays simultaneously for
enjoying videos on big screen, connect multiple USB devices for data transmission ,
connect Ethernet source for getting PC to super high speed network, or connect to
headset for enjoy fantastic music. Besides, it has PD charging port which supports
max 100W PD charging to support the function of the adapter and charge for the
host simultaneously. It can work on all Type-C and ThunderboltTM3 host that
supports DP Alt mode.
Package Contents
• 1 x USB-C (9 in 1) Port HUB
• User Manual
Y01H01-AG
Port. For best
®
Features
Upstream:
USB Type-C Male (Connect to host)
• Support DP1.2 Alt mode
Note: To get max bandwidth, the host should support DP1.2 Alt mode
Downstream:
HDMI
• Support max 4K@30Hz
• Support 8/10 bit color depth output
• Support output pixel format
RGB/YCbCr4:4:4/YCbCr4:2:2
USB-A X2
• Max 5Gbps data transmission per port
• Support max 7.5W(5V/1.5A)
downstream charging the port close to
Type-C male another port supports
max 900mA downstream charging.
• 2 USB-A share max 1.8A output
• Support short-circuit, over-current,
over-voltage protection.
SD/Micro SD 3.0
• Support UHS-I up to 104MBps data
rate.
• Allow 2 card slots to work
simultaneously.
Type-C (for PD Charging)
• Support max 100W PD charging
• Support PD3.0 Fast Role Swap, the
connected device will not get
disconnected while plugging in and
out PD Adapter
• 15W is dedicated to the functioning of
this product, the rest power
(max 85W) will be passed to charge for
the host.
How to Use
Plug the USB-C male connector of the Hub into the USB-C port on your USB-C laptop.
System Requirement
Laptop with an available USB-C Port Windows 7/8/10, MacOSX v10.0 or above
operating systems, USB 3.0/3.1
Speci cation
Input / Output Connector
Input
Output
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
VGA X1
• Support max 1080P@60Hz output
• Support to output 2 video under SST
mode with dual 1080P@60Hz
Note: The max resolution of the display
determined by the computer and the
monitor.
RJ45 x1
• Support Gigabit
Ethernet,10M/100M/1000M
• Support Wake-On-LAN
• Support full duplex ow control
• Light indicator indicates the state, no
light when no Internet connected,
orange light turns on when network
connection is established, green light
ashes when transmitting data
3.5mm Audio x1
• Support phone out with digital audio
max 96KHz/24bit sampling rate.
• Support Mic in with digital audio max
96KHz/24bit sampling rate.
• DAC SNR MAX 95 dB
• Support CTIA&OMTP auto detection
• Support voice adjustment function
when connected to headset.
Type-C Male x1
HDMI x1
VGA x1
USB-A Female x2
RJ45 x1
SD/Micro SD 3.0 x1
3.5mm Audio x1
Type-C Female x 1
1 Year
0°C to + 45°C
10% to 90 % RH (no condensation)
-10°C to + 70°C
10% to 90 % RH (no condensation)
FCC, CE
