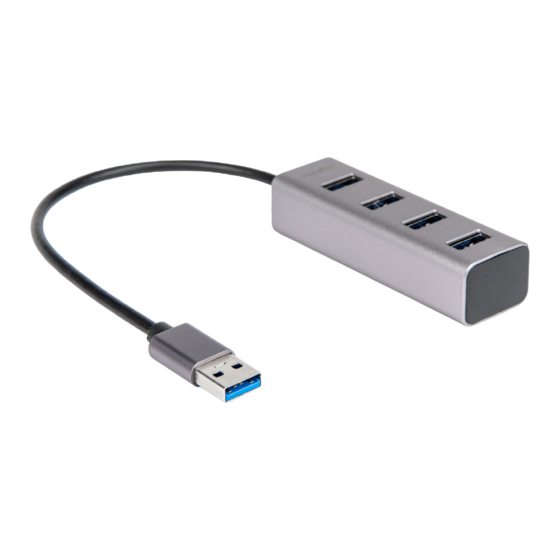

Rocstor Y10A270-A1 User Manual

Portable 4 Port Hub USB-A to 4x USB-A
SuperSpeed USB 3.0 - Aluminum Gray/Silver
Y10A270-A1 - Y10A216-S1
Congratulations
Thank you for purchasing this Premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
This premium Rocstor is a USB-A to four 5Gbps USB-A hub for extending one USB-A
port to be multiple USB-A ports. It allows to connect 4 USB devices simultaneously. It
can work on all USB-A supported host (PC, tablet,etc.) or connect to a Type-C host via a
USB-C to USB-A Adapter.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1
How to Use
1 • Connect the USB-A male port of this product to USB-A host.
2 • Connect the three USB 3.1 Gen1 outputs of this product to three USB devices.
User Manual
®
Features
Upstream:
USB-A Male
Downstream:
USB-A X4 Female
Features:
• Support USB-A input, 4 USB-A output
• Compatible with USB3.1 Gen 1 with max 5Gbps data transmission
and downward compatible with lower versions.
• Support max 900mA downstream charging per port
• Share max 3A downstream charging for all the USB-A ports
• USB-A port supports plug and play, hot swap
• Compact and slim design
• Supports OS: Window Vista, Window XP, Window Me, Win2000,
Windows 7, Windows 8, Window10, Mac OS X v10.8
Speci cation
Input / Output Connector
Input
Output
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
Power Requirement
Power Source
Mechanical
Size (L-W-H)
Weight (Net)
Accessories
User Manual
USB Type-A x1 Male
USB Type-A x4 Female
2 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 85 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
5% to 90 % RH (no condensation)
FCC, CE
USB bus power
79x25x19 mm - 3.1x1x0.75 in
57 gr - 2 oz
