Rocstor Y10P003-B1 User Manual

User Manual
7-Port USB® 3.0 Hub with Two Charging Ports
Congratulation
Thank you for purchasing the Rocstor 7-Port USB Hub. For optimum performance and safety,
please read these instructions carefully before connecting, operating or using this product.
Please keep this manual for future reference.

Introduction

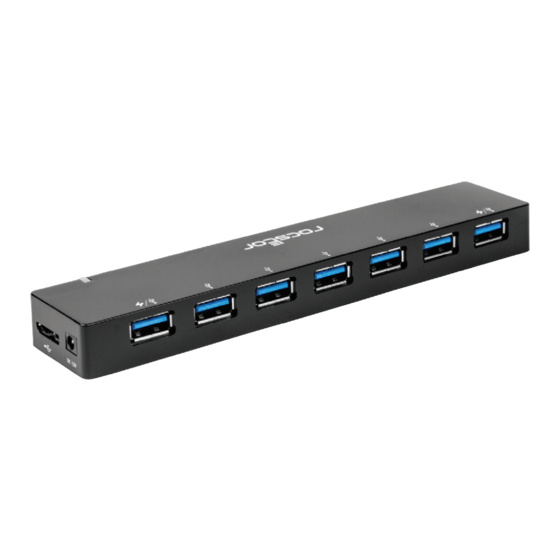

The Rocstor Premium 7-Port USB 3.0 Super Speed HUB is designed for connecting
seven USB devices from a host computer or another hub. It can work on Windows 7,
Vista, XP, 2003/2000/ME, Mac OS X and various Linux kernels without any additional
driver. It's convenient and helpful for your limited space. This 7-Port hub o ers (2) two
USB 2.4A charging USB ports. Two (2) 2.4 amp dedicated charging ports (DCP) provide
fast charging for your smartphones, tablets and other USB-charged devices. The
charging and data ports work simultaneously, so you can conveniently fast-charge
your mobile devices while still using your USB 3.0 devices.

Connect the Hub:

1. Connect the Micro USB 3.0 cable to the MIcro USB 3.0 host port on the hub
2. Connect the USB 3.0 Type A end of the cable to the host laptop or desktop computer
3. Do any of the following:
• Connect up to seven USB perpherals to the USB 3.0 (Type-A) ports on the hub.
• To charge a USB device, connet the USB device to the USB 3.0 (Type-A).
Port 1 or/and 7 marked with
• Charging ports will supply 1.5A power for your cellular devices when the hub is
connected to AC power adapter. It will also supply 2.4A of power when the
computer is either on suspend mode or o .

Package Contents:

• 1 x USB® 3.0 7-Port hub
• 1 x USB® 3.0 Type-A Male to Micro USB3.0 male 3ft
• 1 x 36W 12V/3A universal power adapter (US)
• 1 x quick-start guide
Y10P003-B1
charging symbols above the port on the hub.
®

Features:

Input:
Micro USB 3.0 B Female
Output:
USB-A X7 Female
•
Supports USB 3.0 Super Speed mode max 5Gbps.
•
Supports connecting seven USB devices simultaneously.
•
Backwards compatible with any USB 2.0 enabled computers and
notebooks.
•
To achieve USB 3.0 transfer speed, a USB 3.0 interface card with a USB
3.0 cable is required.
•
Supports Max 900mA output on all ports.
• macOS X 10.8 or later.
Supports OS:
Windows 7, 8, 8.1, 10 & Higher
•
Two of the USB ports with charging Symbols (Port 1 & 7) can be used to
charge mobile devices with 1.5A max.
When the host computer is on Suspend mode or o , Port 1 & 7 can
support 2.4A charging.
Note:
There are two charging symbols on the product, for only that two
ports and only when the PC is in the Suspend Mode can be used to charge.)
Speci cations:
Signal Inputs/Output
Input port
Output port
Output port Power (7 Ports)
Output port Power (Port1&7)
Output port Power (Port1&7)
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power Requirement
External Power Supply
Size
Weight
Hardware & Minimum System Requirements:
Host computer with an available USB 3.0 Port
Operating systems
- Windows 7 / 8 / 10 / 11
- Android OS
- Chrome OS
- Linux OS
- Mac OS v10.5 or above
Window XP, Vista, 2000,
Micro USB 3.0 BF×1
USB 3.0 AF×7
Max 900mA output
1.5A
2.4A
(When host computer is in suspend mode or o )
(0°C to + 45°C) - (32°F + 113°F)
10% to 90 % RH (no condensation)
10° to +90°
10% to 90 % RH (no condensation)
12V/3A DC
(16×166×33.28) mm - (0.6x6.5x1.3) in
66 g - 0.14 lbs
