Rocstor Y10A251-B1 User Manual

User Manual
4 Port USB Type-C® Hub with Gigabit
Ethernet RJ45 GbE Port 4x USB-A - Black
Congratulations
Thank you for purchasing this premium Rocstor Product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.

Introduction

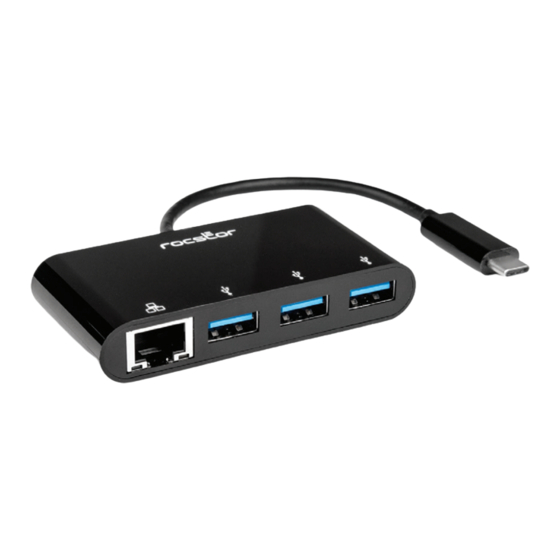

This is a Premium Rocstor USB 3.1 Type-C to three USB 3.0 ports with Gigabit Ethernet
port, designed for connecting three USB devices or hubs to a host computer. Besides,
the host computer can easily get access to the network through the Gigabit Ethernet
port. It can work on Macbook or Google new Chromebook Pixel and other USB-C
supported devices.

Package Contents

Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1

How to Use

1 • Connect the USB-C male port of this product to Macbook or Chromebook or other
USB-C host.
2 • Connect the three USB3.0 ports to three USB devices
3 • Connect the three USB 3.0 outputs of this product to three USB 3.0/2.0 devices.
4 • Connect Gigabit Ethernet port of this product to Ethernet Router with an Ethernet
cable.
Y10A251-B1
®

Features

Upstream:
USB Type-C Male
(Connect to host computer)
Downstream:
USB-A X3
• Max 900mA per port (only one port is connected), when
two or more ports are connected at the same time, the
total max output depends on the host PC (eg, max 900mA
on Chromebook, max 1.5A on Macbook)
• Support USB 3.0 super speed (5Gbps) transmission,
downward compatible USB2.0
• USB 3.0 port supports to charge and transmit data for the
USB device simultaneously
RJ45 x1
• Supports 10/100/1000Mbps bandwidth
for RJ45 port
FEATURES
• Support twisted pair crossover detection and auto-correction
• USB-C port supports plug and play, hot swap
• Easy to carry and use
Speci cation
Input / Output Connector
Input
Output
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
Power Supply
Power Source
Mechanical
Size (L-W-H)
Weight (Net)
Accessories
User Manual

System Requirement

Host computer with an available USB-C Port
- USB 3.0/3.1/3.2
Operating systems
- Windows 7 / 8 / 10 / 11
- Android OS
- Chrome OS
- Linux OS
- Mac OS v10.5 or above
USB Type-C Male x1
USB 3.0 Female x3
RJ45 X1
2 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
USB Bus Power
78x41x15mm - (2.9"x1.6"x0.6")
37.1gr - (1.3oz)
English Version
