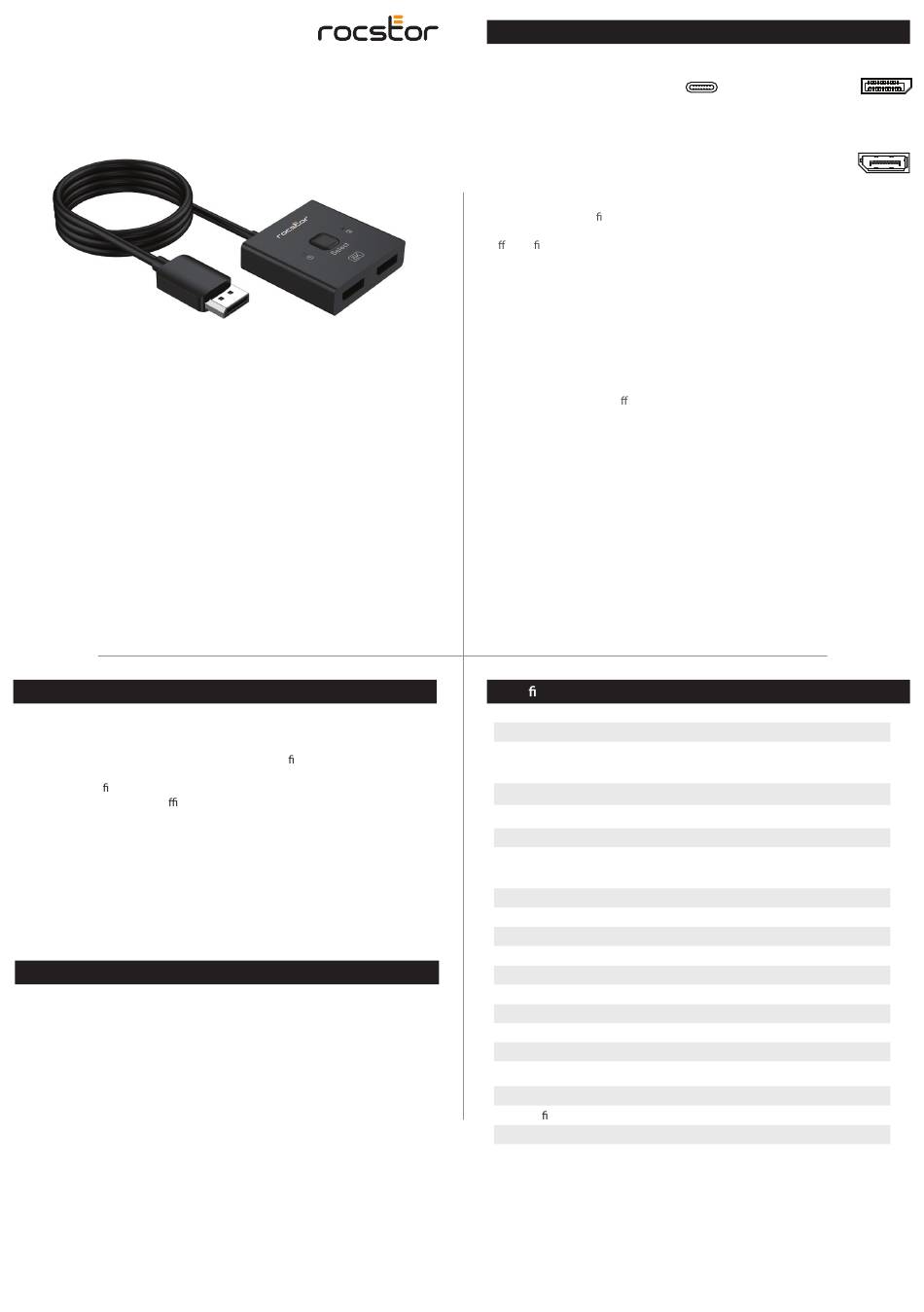

Rocstor Y10A336-B1 User Manual

User Manual
DisplayPort1.4 Bi-directional Switcher for 8K
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction

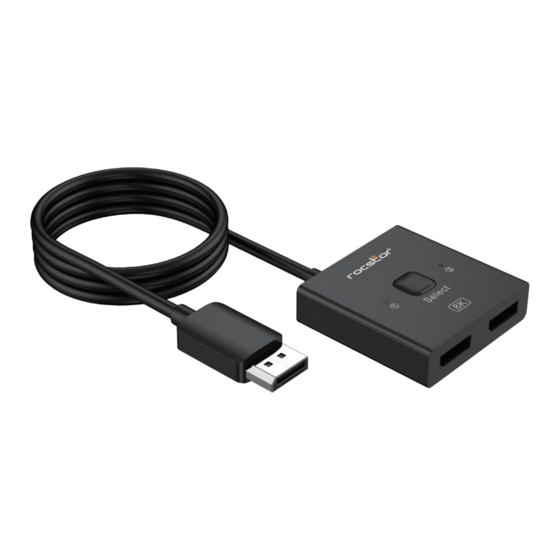

Rocstor introduces the DisplayPort1.4 2-in-1 Bi-directional Switcher tailored for 8K
resolution. This versatile device allows seamless switching between two sources to one
display or one source to two displays. Simply press the switch button to toggle
between channel 1 or channel 2. Equipped with a 50cm xed DP cable (pigtail), this
Switcher not only cuts costs but also streamlines setup time for customers. Designed
to handle high-de nition video across various resolutions, including up to 8K, and
digital audio, this DP Switcher e ciently routes content from sources to display units.
Power can be provided through the DP male connector, while a Type-C female port
serves as a backup power supply option, delivering 5V power when needed.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the packaging:
• Main Unit x1
• User Manual
Y10A336-B1
®
Features
Upstream:
Type-C Female X1(For power supply)
Downstream:
DisplayPort Female X2
• DisplayPort1.4 2-in-1 Bi-directional Switcher for 8K, it can switch either of two
sources to one display or switch one source to either of two displays
• Supports DP1.4 speci cation
• Power can be drawn through the DP male from the connected device. If some
o -speci cation devices cannot support power via DP male, power can be supplied
to the switch via the Type-C female port.
• Supports video resolution up to 8K/30Hz or 4K/120Hz, but the exact resolution is
determined by the computer and monitor.
• Supports HDR
• HDCP pass-through
• Supports uncompressed audio
• Supports compressed audio
• The toggle button can quickly switch between 2 video sources or 2 monitors, and the
blue LED indicators on both sides indicate which port is chosen to work.
• It's suggested to match a DP1.4 cable within 2m for the DP female port, over this
length the signal may be a ected
Speci cation
Input / Output Connector
Input
Output
Physical
Weight Operating Temperature
Size
Warranty
Limited Warranty
Environmental
Operating Temperature Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power Supply
DP Male x1
Type-C Female x1
Regulatory Approvals
Certi cations
Accessory Adapter
User Manual
DisplayPort Male X1
DP Male x1(SR/SR 50CM)
Type-C Female x1(For power supply)
DP Female x2
2.2lbs - (63g) 0°C to 45°C (32°F to 113°F)
Main Unit 2.1x2x1.5in (55x55x15mm)
Fixed DP Cable: 19in (50cm) - SR/SR
2 Years
0°C to 45°C (32°F to 113°F)
10% to 90% RH (no condensation)
-10°C to 70°C (14°F to 158°F)
10% to 90 % RH (no condensation)
Main from DP source
5V power supply for backup
FCC, CE
English Version
