Rocstor Y10A324-B1 User Manual

Type-C to Dual HDMI with PD Charging
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction

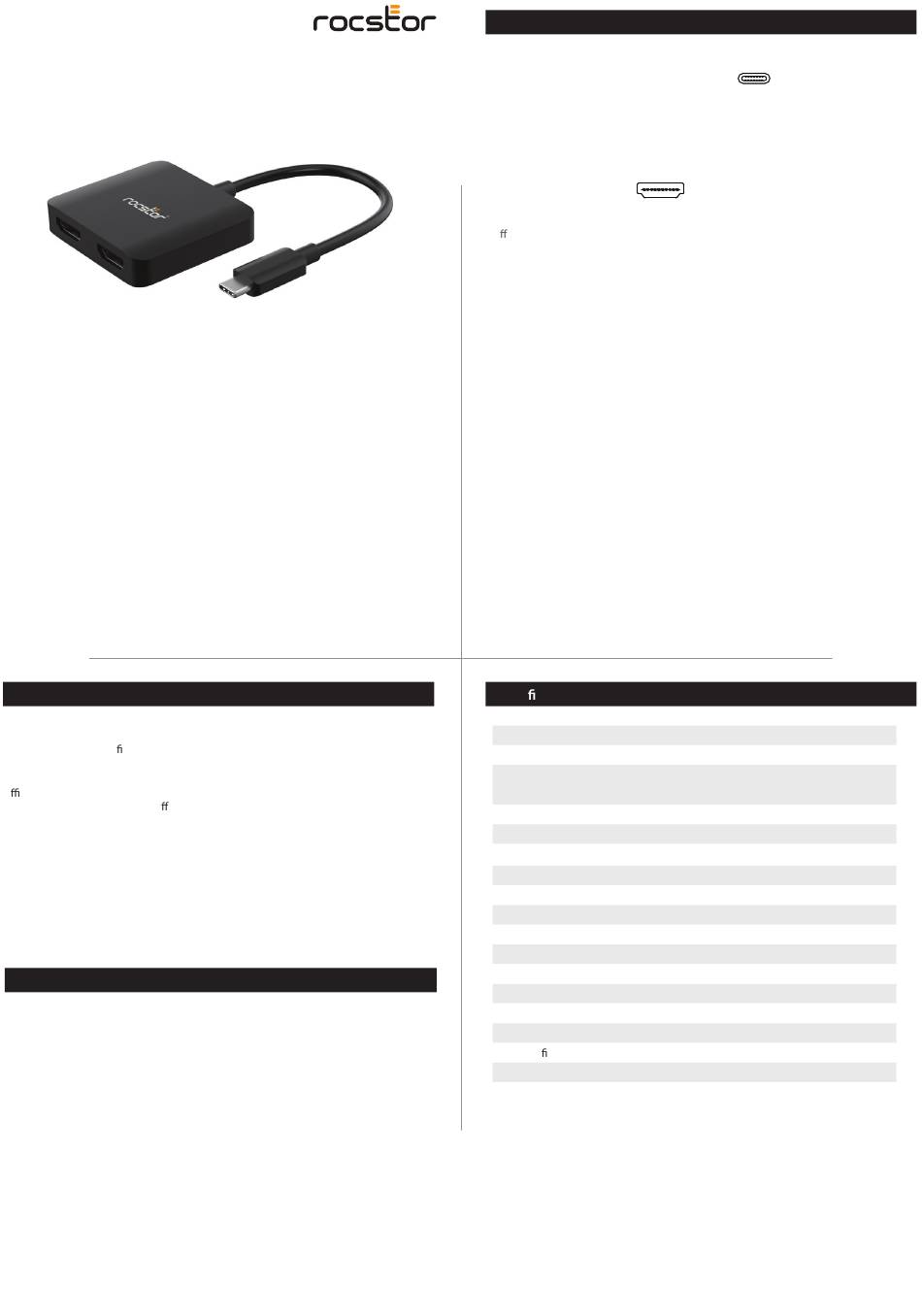

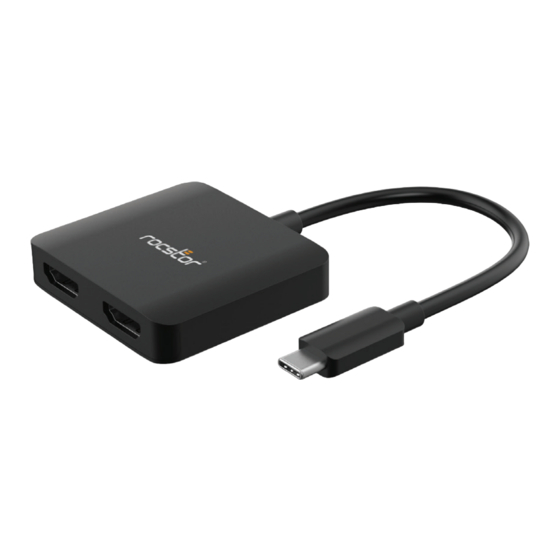

Rocstor introduces a Type-C to dual HDMI adapter featuring PD Charging under DP1.4
Alt mode, expanding the host's Type-C port to accommodate two HDMI displays with
stunning ultra-high de nition at a maximum of 4K/60Hz for each display simultane-
ously. With MST function support, both displays can showcase distinct video contents
concurrently. Additionally, it supports PD Charging with a maximum of 100W, ensuring
e cient power delivery. Compatible with all DP Alt mode supported Type-C or
Thunderbolt PCs, this adapter o ers seamless connectivity and enhanced display
capabilities.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the packaging:
• Main Unit x1
• User Manual
User Manual
Y10A324-B1
®
Features
Upstream:
USB Type-C Male (Connect to a host computer)
• Support DP1.4 Alt mode with max 8.1Gbps per lane, 32.4Gbps 4 lanes
• Support reversible connection
Downstream:
HDMI X2
• Supports to output dual 4K/60Hz with
di erent pictures under MST mode
when working on Windows System
• Supports to output dual 4K/60Hz with
the same picture under SST mode when
working on Mac OS System
• Supports 8/10/12 bit color depth output
• Supports output pixel format
RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2/
YCbCr4:2:0
• Supports DSC1.2
• Supports HDCP2.2
• Supports HDR
Note 1: Achieving dual maximum
4K/60Hz requires the host to support
DP1.4 Alt mode. When operating on a
DP1.2 host, the dual maximum is limited
to 4K/30Hz due to bandwidth constraints.
Note 2: HDR support guarantees optimal
rendering of every moment in a video,
showcasing ideal values for depth, detail,
brightness, contrast, and wider color
gamuts on a scene-by-scene or even
frame-by-frame basis.
Speci cation
Input / Output Connector
Input
Output
Mechanical
Weight Operating Temperature
Size
Warranty
Limited Warranty
Environmental
Operating Temperature Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power Supply
Regulatory Approvals
Certi cations
Accessory Adapter
User Manual
USB-C Male x1
HDMI Female x2
USB-C Female (for PD Charging) x1
1.5lbs (45g) 0°C to 45°C (32°F to 113°F)
2.1x1.9x0.4in (55x50x11.5mm)
3 Years
0°C to 45°C (32°F to 113°F)
10% to 85% RH (no condensation)
-10°C to 70°C (14°F to 158°F)
5% to 90 % RH (no condensation)
External PD power or bus power
FCC, CE
English Version
