Summary of Contents for Hyundai power products HCBE550

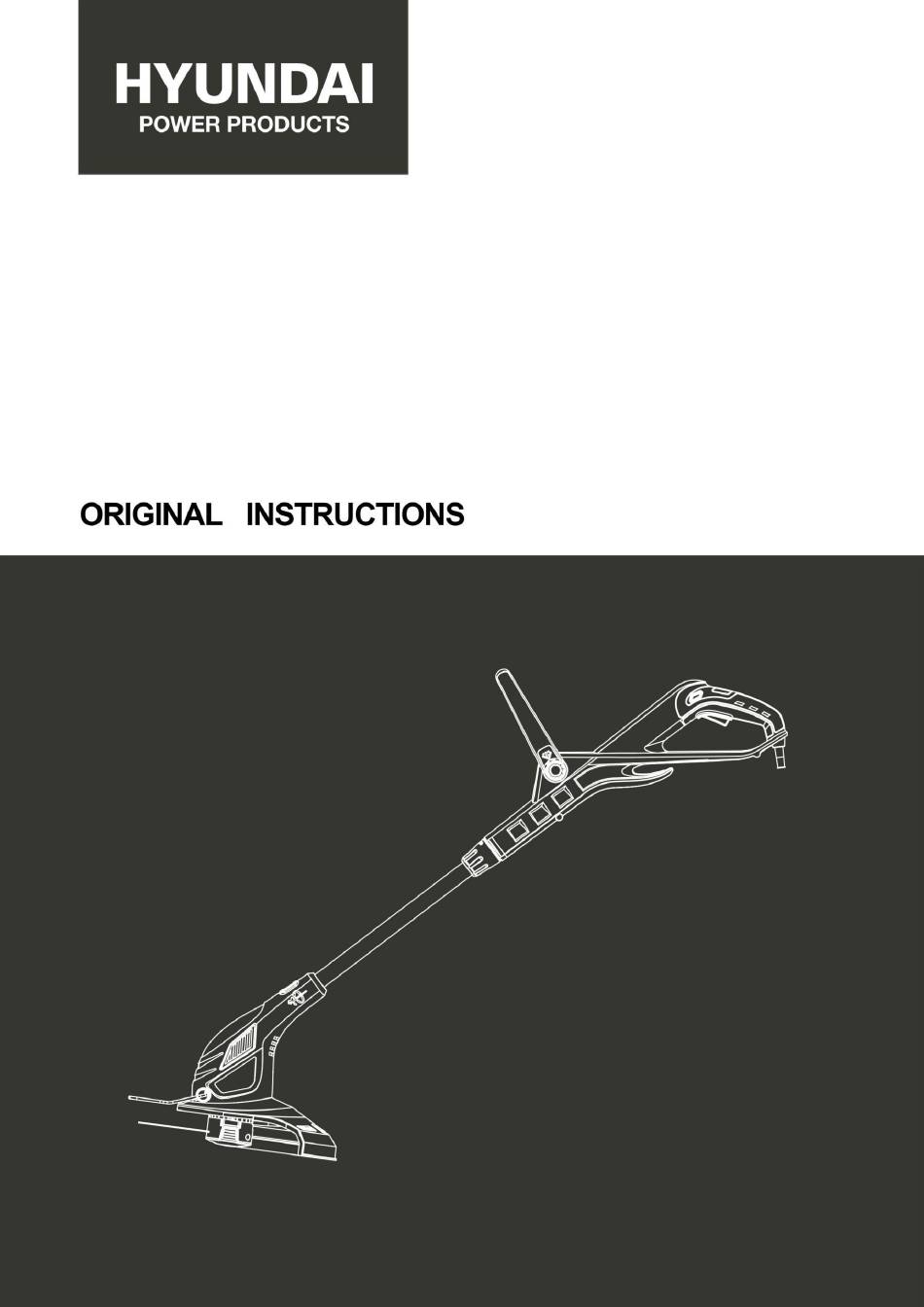

- Page 1 ELECTRIC TRIMMER HCBE550 WARNING: Read thoroughly the instruction manual before use...
-
Page 2: Table Of Contents
CONTENTS GENERAL SAFETY RULES………………………………………………………………………………….3 ELECTRICAL SAFETY RULES………………………………………………………………………………7 YOUR PRODUCT……………………………………………………………………………………………..10 PRODUCT SPECIFICATION………………………………………………………………………………...11 ASSEMBLY INSTRUCTIONS………………………………………………………………………………..11 INSTRUCTIONS FOR USE…………………………………………………………………………………..14 MAINTENANCE………………………………………………………………………………………………..14 TROUBLE-SHOOTING………………………………………………………………………………………..15 STORAGE………………………………………………………………………………………………………15 10. DISPOSAL………………………………………………………………………………………………………15 11. EC DECLARATION OF CONFORMITY……………………………………………………………………..16 12. WARRANTY…………………………………………………………………………………………………….17 13. PRODUCT FAILURE…………………………………………………………………………………………..18 14. WARRANTY EXCLUSIONS…………………………………………………………………………………..19... -
Page 3: General Safety Rules
CAUTION! Before using this electric tool, carefully read and observe the safety rules and instructions listed below. Before starting work , make sure that you know how to stop the machine in case of an emergency, the incorrect use of this machine could cause serious injure. Keep these instructions in a safe place and on hand so that they can be consulted when required. - Page 4 Do not use the trimmer if the cutting device is not secured properly or is damaged. Before starting the trimmer, make sure that the nylon wire is not touching stones or debris. Always wear suitable clothing when using the trimmer to prevent head, hand or feet injuries.
- Page 5 failure to observe these safety regulations are not only dangerous but also annuls the guarantee terms. Be careful of the wire-cutting blade, which can give deep cuts. Do not try to stop the cutting device (nylon wire) with your hands.
- Page 6 cutter line always return the machine to its normal operating position before switching on. never use replacement parts or accessories not provided or recommended by the manufacturer. always ensure that ventilation openings are kept clear of debris. Never to replace the non-metallic cutting means with metallic cutting means ...
-
Page 7: Electrical Safety Rules
keep extension cords away from moving hazardous parts to avoid damages to the cords which can lead to contact with live parts Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. - Page 8 authorized service center instead. Only use an extension cable which is suitable for outdoor work Keep it away from the cutting area,from damp,wet or oily surfaces or with sharp edges and away from heat and fuels. The mobile socket of the extension cable should be splash proof in compliance with DIN 57282 and DIN VDE 0282 regulations;...
- Page 9 worn. 2. Cuts if no suitable protective clothing is worn. 3. Health damage resulting from vibration in the hands and arms if the device is used for a long period of time or is not handled and maintained properly. GRAPHIC WARNINGS Because a trimmer is a high-speed, fast cutting power tool, special safety precaution must be observed to reduce the risk of personal injury.
-
Page 10: Your Product
INTENDED USE This machine can be used with the cutting wire as a trimmer for cutting grass and weeds of small thickness and in small quantity and with the cutting blade as a brush cutter for cutting denser vegetation. This machine must not be used for cutting or other cutting operations where the cutting tool must be lifted above the ground. -
Page 11: Product Specification
4. PRODUCT SPECIFICATION Type HCBE550 Voltage 230-240V~ Frequency 50 Hz Power 550 W Speed Max. 10000 /min Cutting width 300mm Weight 2.85kg Sound pressure level L 84.2 dB(A) :3,0dB(A) Sound power level L 92.8 dB(A) :2.04dB(A) Guaranteed sound power level... - Page 13 FUNCTION DESCRIPTION Manually operated and portable electric grass trimmer driven by electric motor 230-240V 50Hz． As the cutting device it has a double sp001 with tap automatic and metal cutting blade, which can be optionally installed. In the process of cutting, two synthetic Iines or knife with three blades rotate around the axis vertically to the cutting plane．To protect the use 5 device is equipped with safety guard which covers the cutting device．Function of the service parts is described below．...
-
Page 14: Instructions For Use
DISASSEMBLE Loosen the knob seen A2. Set the desired length A3, re-tighten the thumbwheel. ASSEMBLY OF HANDLE(PIC．3) 1. Loose the Allen screws on the handle． 2. Into of handle grip on the upper tube insert the multifunctional handle and fasten-it with a bracket and 4 Allen screws(as shown)．... -
Page 15: Trouble-Shooting
life of your machine. After each cutting operation, take apart and clean out the grass and soil from; the spool and its slot, the whole trimmer and in particular the guard. During operation, keep the air solts clean and free of grass. ... -
Page 16: Ec Declaration Of Conformity
11. DECLARATION OF CONFORMITY CE BUILDER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below : ELECTRIC STRIMMER CBE550 Model : H 20211178020-20211178719 Serial number : Complies with the provisions of the Directive « machinery » 2006/42/EG and national laws transposing it : Also complies with the following European directives : EMC Directive 2014/30/EU ROHS Directive(EU)2015/863 amending 2011/65/EU... -
Page 17: Warranty
12. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 18: Product Failure
13. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 19: Warranty Exclusions
14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
