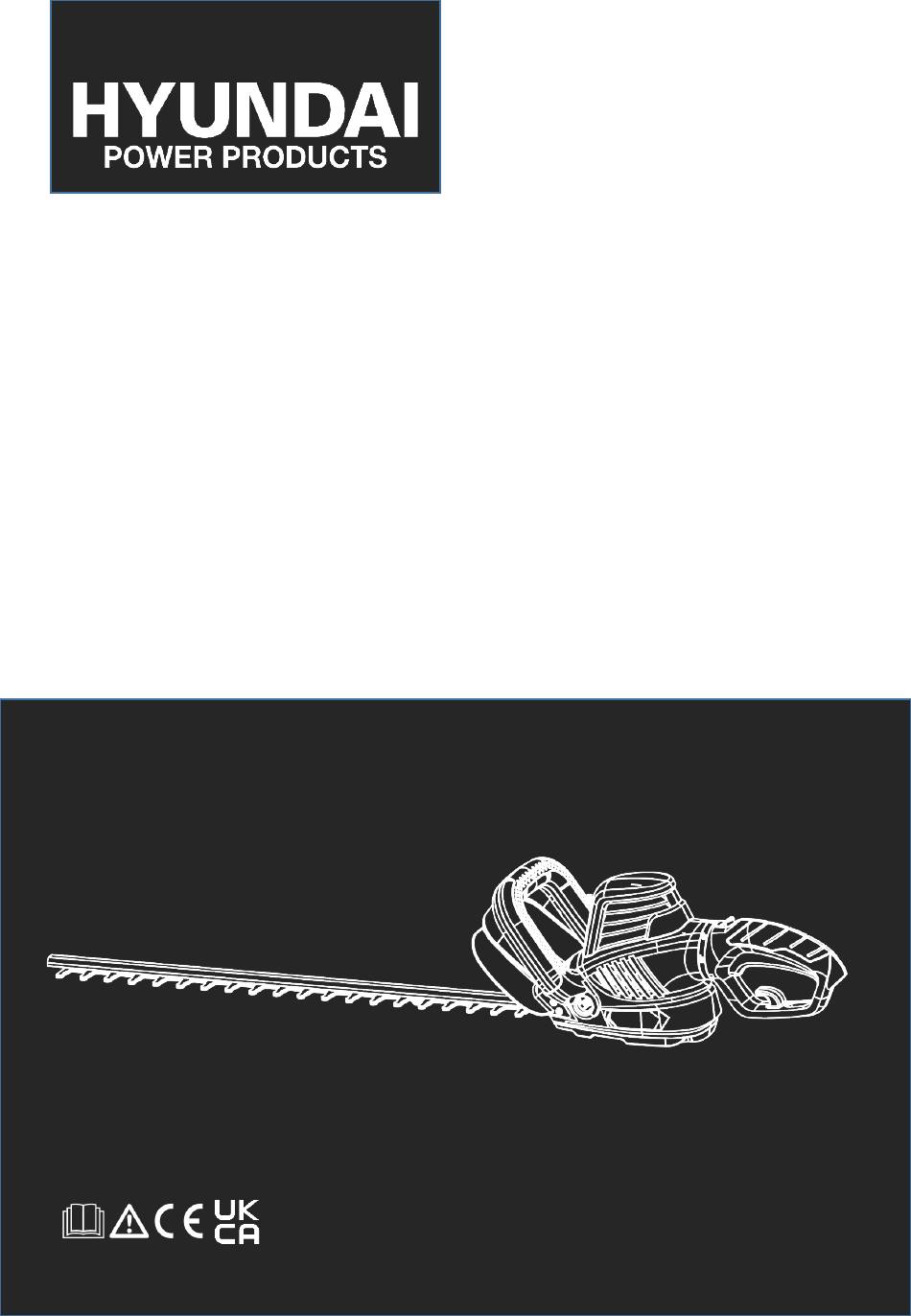

- Page 1 HEDGE TRIMMER HYHT680E Instruction Manual WARNING: Read the instructions carefully before use.
-
Page 2: Table Of Contents
Contents Useful Information…..……………………..29 Introduction……..……………………………3 Our YouTube Channel…..………………..29 Warranty…………………………………….29 Safety Information…..…………………..4-13 Manual Updates….……………………….29 Understand Your Machine.…..…………...4 Returning Your Product….……………….29 Personal Safety...…….……………………4-5 Leaving A Review….……………………...29 Inspect Your Machine…………………..5 Ordering Spare Parts.……………………..29 Work Area…….……………………………..6 During Use…….………………………………7 Product Record…..………………………...30 Batteries…….…………………………………8 Electricity…….………………...…………...8-9 Contact Us…..……………………………..31 Double Insulated Devices…..……..9 Vibrations….…………………………..10 Noise…….……………………………..10 Residual Risks…………………....10... -
Page 3: Introduction.........................................3 Useful Information
THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. -
Page 4: Safety Information
Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. -
Page 5: Inspect Your Machine
Safety Information Personal Safety (Continued) • Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. -
Page 6: Work Area
Safety Information Work Area • You must only work in daylight or with good artificial light in good visibility conditions. Do not work at night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of the area. -
Page 7: During Use
Safety Information During Use • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. • Never attempt to make any adjustments, while the machine is running. •... -
Page 8: Batteries
Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE: the electrolyte may be in a liquid or gel form. -
Page 9: Double Insulated Devices
Safety Information Electricity (Continued) • Power tools plug must match the outlet. Never modify the plug in any way. DO NOT use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. •... -
Page 10: Residual Risks
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 11: Intended Use
Safety Information Intended Use The HYHT680E is an electric hedge trimmer from HYUNDAI. The HYHT680E has a blade length of 610mm and is powered by a 680W HYUNDAI motor. This machine is a garden tool and precisely a pedestrian controlled hedge trimmer The machine is manufactured according to the latest safety requirements. -
Page 12: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. -
Page 13: Symbols On The Machine
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement. -
Page 14: Unboxing
2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 15: In The Box
In The Box *Not To Scale Hedge Trimmer Safety Guard This must be attached to the hedge trimmer before use. 4 x Screws Use these to attach the safety guard (B) to the hedge trimmer. Blade Cover Make sure you put this on the blade when transporting or storing the machine. www.hyundaipowerproducts.co.uk... -
Page 16: Features
Features Safety Guard This must be attached to the hedge trimmer before use. Screws These keep the safety guard (B) in place. Blade Safety Switch This helps prevent the trigger being pressed accidentally. Trigger This is used for starting and stopping the machine. Power Cable 10m Cable Holder This holds the cable in place while in use and prevents strain on the cable. -
Page 17: Assembly
Assembly You will need a Phillips screwdriver for assembly. Assembly Overview There are 3 steps to the assembly: STEP 1. Attach The Safety Guard STEP 2. Cable Holder On Handle STEP 3. Remove The Blade Cover STEP 1 : Attach The Safety Guard DO NOT use the hedge trimer without fitting the safety guard. -
Page 18: Cable Holder On Handle
Assembly STEP 2 : Cable Holder On Handle Make sure the machine is disconnected from power before you do this. If the machine is plugged in, you may accidentally press the trigger. This holds the cable in place while in use and prevents strain on the cable. 1. -
Page 19: Remove The Blade Cover
Assembly STEP 3 : Remove The Blade Cover 1. You must remove the blade cover (D) before use. Be careful of the blades when doing this. 2. You can put the blade cover (D) back onto the blade when you are storing or transporting the machine www.hyundaipowerproducts.co.uk... -
Page 20: Operation
Operation Rotating Handle 1. Pull the rotatable handle switch (L) back. The trigger (H) must not be pressed while doing this, it will not work. 2. Whilst the switch is still pushed back, rotate the rear handle to the position that you would like. -
Page 21: Cutting Tips
Operation Cutting Tips When operating the hedge trimmer, keep the extension cord behind the trimmer. Never drape it over the hedge being trimmed. • Do not force the hedge trimmer through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace. •... -
Page 22: Starting
Operation Starting YOU MUST read and understand the full safety instruction manual before starting the machine. 1. Before connecting to the mains supply, always check the power is off. 2. The hedge trimmer is equipped with a two-handed safety switch. In order to power the machine on, you must press both the front handle safety switch (G) and the trigger (H). -
Page 23: Cutting A Hedge
Operation Cutting A Hedge When operating the hedge trimmer, keep the extension cord behind the trimmer. Never drape it over the hedge being trimmed. 1. Cut and remove branches exceeding the cutting capacity of this product using a proper pruner before operation. 2. -
Page 24: Maintenance & Care
Maintenance & Care General Maintenance WARNING : Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. -
Page 25: Troubleshooting
Maintenance & Care Troubleshooting NOTE : All corrective actions should be carried out by suitably qualified person/s. Problem Possible Cause Possible Solution Machine will not start. Fuse in mains plug blown Check fuse in mains plug / faulty and replace is necessary. Internal wiring fault. -
Page 26: Specifications
Technical Data Specification Model HYHT680E Voltage 230V Frequency 50Hz Input Power 680W Blade Length 610mm A-Weighted Sound Pressure Level LpA 91.52dB(A) Uncertainty K 3dB(A) A-Weighted Sound Power Lever LWA 98.15dB(A) Uncertainty K 3dB(A) Declaration Of The Vibration Emission Front Handle 3.376m/s Rear Handle 2.912m/s... -
Page 27: Recycling And Disposal
Recycling & Disposal Recycling & Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 28: Declaration Of Conformity
Genpower Ltd Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: 680W Hedge Trimmer SKU Code: HYHT680E Date of Issue: 18/03/2021 Regulations and Directives of Compliance • 2006/42/EC The Machine Directive • 2014/30/EU EMC Directive • 2000/14/EC Noise Emissions •... -
Page 29: Our Youtube Channel
Go to YouTube and search ‘Hyundai Power Products’. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. -
Page 30: Product Record
Product Record Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. Date Of Purchase:……………………………………………………………………………….. -
Page 31: Contact Us
Contact Us Need Help? Talk To Our Experts Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Hyundai Support Website Go to hyundaisupport.co.uk www.hyundaipowerproducts.co.uk... - Page 32 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
