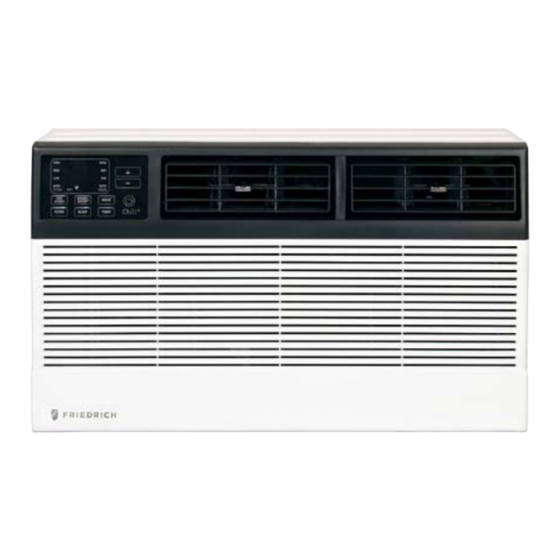

Friedrich CEW18B33A Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

RoomAir Conditioners
Chill Premiere Series Models (R-410A Refrigerant)
Unifit Series Models (R-410A Refrigerant)
1
93011400_06
Fixed chassis, cool only
CCF05A10A, CCF06A10A, CCF08A10A, CCF10A10A
CCF12A10A
Slide out chassis, cool only
CCW06B10A, CCW08B10A, CCW10B10A, CCW12B10A
CCW15B10A, CCW18B30A, CCW24B30A
Slide out chassis, heat & cool
CEW08B11A, CEW12B33A, CEW18B33A, CEW24B33A
Cool Only
UCT08A10A, UCT10A10A, UCT10A30A,
UCT10A30B,UCT12A10A, UCT12A30A, UCT14A30A,
UCT14A30B
Cool with Electric Heat
UET08A11A, UET10A33A, UET12A33A, UET14A33A
