OPERATING MANUAL
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.
Horsepower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5
Rotation Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,600 RPM
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2 Lbs.
Sound Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 dBA
Vibration Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 m/s²
Recommended Air Pressure . . . . . . . . . . . . . . . . . . . . . . . .90 PSI
Air Inlet Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Recommended Hose Size . . . . . . . . . . . . . . . . . . . . . . . . 3/8" I.D.
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . 3.5 CFM
CAT335AN
WARNING INFORMATION
•
WARNING
SPECIFICATIONS
PARTS LIST
•
Copyright © Professional Tool Products, 2022

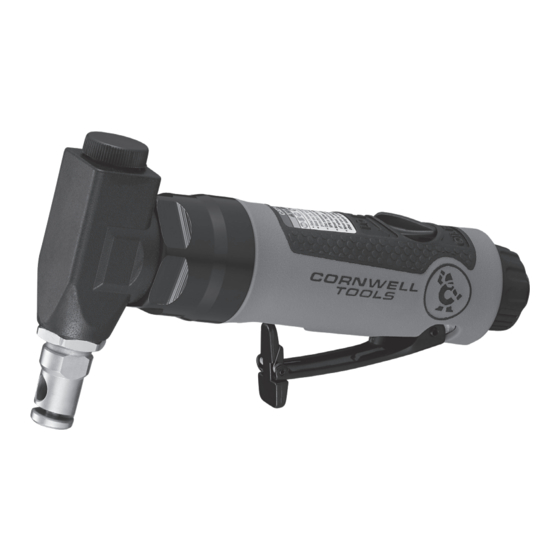

CAT335AN
Air Nibbler
WARNING
• MAX. AIR PRESSURE:
90 PSIG, 6.2 BAR
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR HEARING
PROTECTION
ALWAYS WEAR FACE
PROTECTION
ALWAYS WEAR HAND
PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
All rights reserved
12/19/2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools CAT335AN
Summary of Contents for Cornwell Tools CAT335AN
- Page 1 CAT335AN Air Nibbler OPERATING MANUAL WARNING INFORMATION PARTS LIST • • WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
- Page 2 CAT335AN Air Nibbler FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY • Tool shaft may continue to reciprocate briefly after throttle is THIS INSTRUCTION MANUAL CONTAINS IMPORTANT released. Avoid direct contact with accessories during and after SAFETY INFORMATION. use. Gloves will reduce the risk of cuts or burns.
-
Page 3: Air Supply
CAT335AN Air Nibbler TROUBLESHOOTING Air Supply Whip Hose Do Not Install Filter Quick Coupling Nipple Other factors outside the tool may cause loss of power or erratic Nipple Here action. Reduced compressor output, excessive drain on the air line, moisture or restrictions in air pipes or the use of hose connections of improper size or poor conditions may reduce air supply. -
Page 4: Warranty Coverage
CAT335AN Air Nibbler WARRANTY COVERAGE Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of ONE (1) YEAR from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper workmanship or materials. -
Page 5: Parts List
CAT335AN Air Nibbler PARTS LIST Item Part No Parts Name Item Part No Parts Name RS103001 REGULATOR SET RS30524 BEARING (608ZZ) RS288304 SNAP RING RS330AN25 WASHER RS103002 VALVE STEM SET RS33520 THREAD RING GEAR (42T) RS54004 AIR INLET RS33521 GEAR PLATE SET...
