Cornwell Tools CAT3190AHMV Operating Instructions And Warnings

Operating Instructions • Warning Information
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do
this type of work. To reduce your exposure to these chemicals: work
in a well ventilated area, and work with approved safety equipment,
such as those dust masks that are specially designed to filter out
microscopic particles.
SPECIFICATIONS
Blows per Minute: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2,900 BPM
Shank Opening: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.401"
Bore Diameter:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/4"
Stroke: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5/8"
Air Inlet: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" -18NPT
Recommended Hose Size:. . . . . . . . . . . . . . . . . . . . . . . . .3/8" I.D.
Recommended Air Pressure: . . . . . . . . . . . . . . . . . . . . . . 90 PSIG
Average Air Consumption: . . . . . . . . . . . . . . . . . . . . . . . 2.73 CFM
Length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.6"
Shipping Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.8 lbs
CAT3190AHMV
• Parts Breakdown
• Max aIr Pressure:

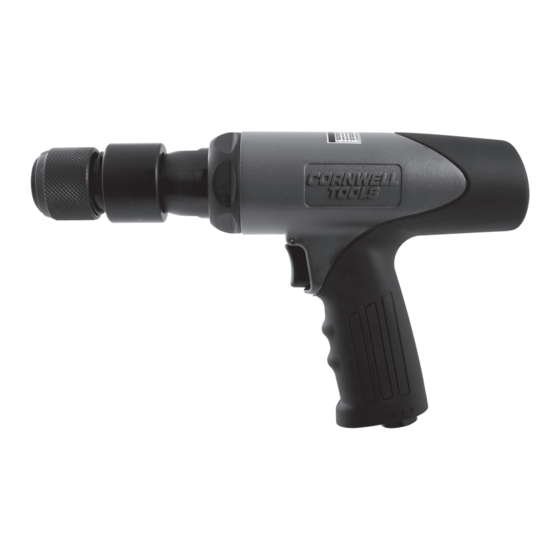

CAT3190AHMV
Super Duty
Air Hammer with
Vibration Reduction
Copyright © Professional Tool Products, 2009
1
90 PsIg, 6.2 bar
ALWAYS ReAD
INsTrucTIoNs
before usINg
POWeR TOOLS
ALWAYS WeAR
SAFeTY GOGGLeS
Wear hearINg
ProTecTIoN
AVOID ProloNgeD
exPosure To
vIbraTIoN
All rights reserved
09/30/09
