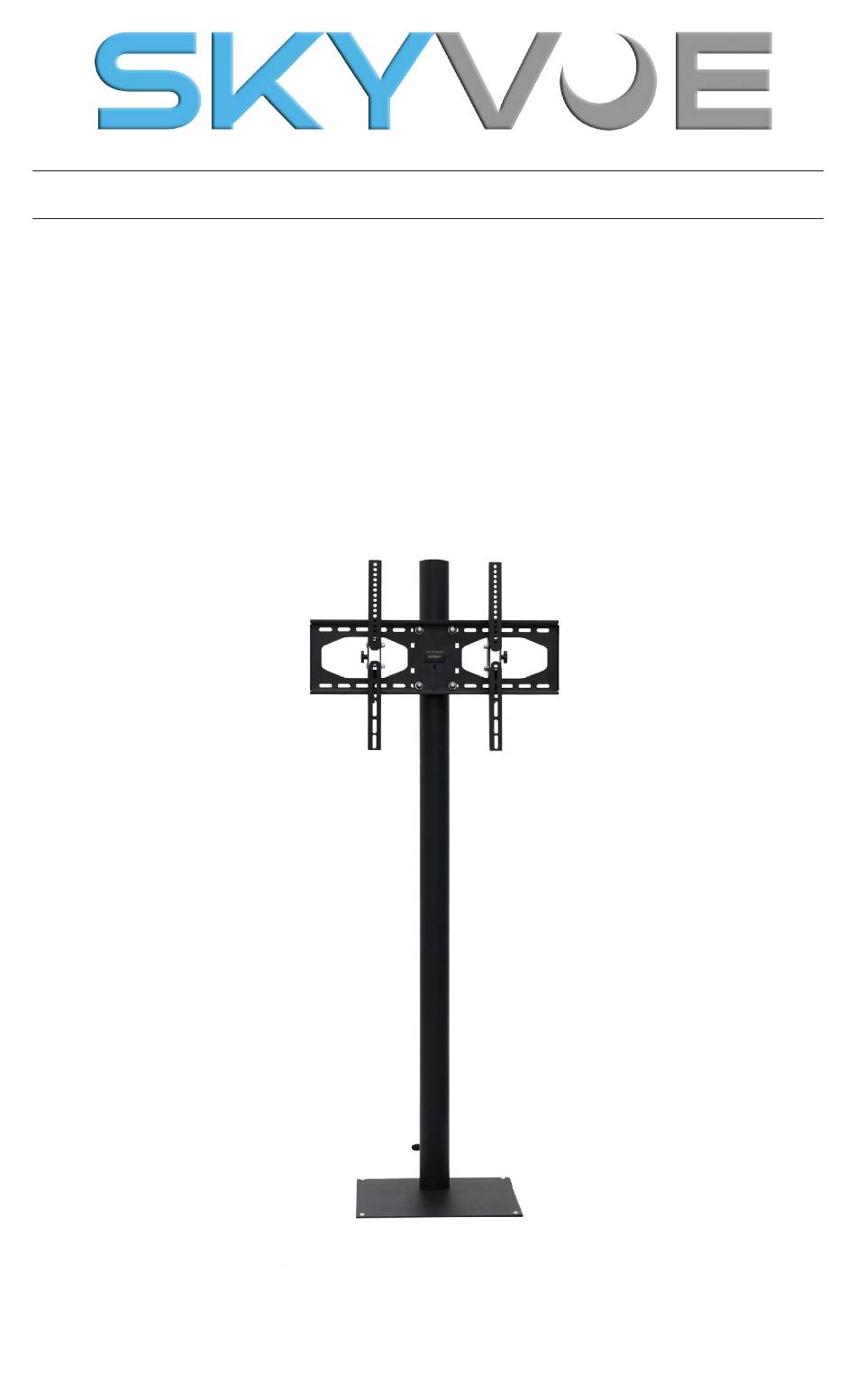

- Page 1 NXG-32 / NXG-42 / NXG-46 Deck Post & Tilt Mount Assembly Manual *This deck post is shown with the tilt mount for NXG 4250 / NXG 4650*...
-
Page 3: Table Of Contents
Table of Contents DECK POST INSTALLATION ..........5 PARTS FOR POST ASSEMBLY ........5 TILT MOUNTS ..............6 POST TO PLATE ASSEMBLY ........... 7 PLATE POSITION AND ANCHORING ....... 9 POST TILT MOUNT ASSEMBLY ........13 PARTS FOR POST TILT MOUNT ........14 TILT MOUNTS .............. -
Page 5: Deck Post Installation
Parts for Post Assembly: back front this item is found in parts box Gather the following: 1. 1- Post 2. 1- Base Plate 3. 1 - Post Lock - Handle Not Included: Anchoring hardwear for Base Plate nXG 3250 / nXG 4250 / nXG 4650 anual... -
Page 6: Tilt Mounts
Assembly Manual- Deck Post Tilt Mounts: The tilt mount portion of a portable cart is provided in a separate box labeled “PTM” and is size specific. See below for the appropriate sizes. 32” Class Televisions 42” & 46” Class Televisions Tools Required for Post Assembly: 9/16”... -
Page 7: Post To Plate Assembly
Post to Plate Assembly: Upper Cable Entry Hole Lower Cable Exit Hole Hole Post Lock - Handle Located on side Set Screw Preinstalled Bottom of Post Brass Fitting for Friction Reduction nXG 3250 / nXG 4250 / nXG 4650 anual... - Page 8 Assembly Manual- Deck Post Slide bottom of post over the sleeve that is found towards the back of the mounting plate. Locate the post lock handle hole on the side of the post. Thread the handle into the hole. Do not tighten completely until post is in the preferred viewing position.
-
Page 9: Plate Position And Anchoring
Plate Position and Anchoring your Deck Post: Base Plate with post Position the base plate with post in the spot where it is going to be mounted. Using the four holes indicated with the red ciricles, drill the holes for the hardwear you purchased to secure the base plate to the deck or patio. - Page 10 Assembly Manual- Deck Post You have now completed the assembly portion of your Deck Post Mount. You have now completed the assembly portion of your Deck Post Mount. Proceed to the box labeled: PTM-32 or PTM-42-46 to complete your installation. ®...
- Page 11 Notes: nXG 3250 / nXG 4250 / nXG 4650 anual...
-
Page 13: Post Tilt Mount Assembly
Post Tilt Mount Assembly NXG-3250 NXG-4250 / NXG-4650 *This post is shown with the tilt mount for NXG 4250 / NXG 4650* These instructions apply to all the following Models 3250 / 4250 / 4650 nXG 3250 / nXG 4250 / nXG 4650 ount anual... -
Page 14: Parts For Post Tilt Mount
Assembly Manual- Post Tilt Mount Parts for Tilt Mount Assembly: these items are found in parts box 32” Class 1. Previously assembled post: Deck Post, In-ground Post, or Portable Cart 2. 2- U-Bolts - (4) Flat Washers, (4) Lock Washers, (4) Powder Coated Nuts 3. -
Page 15: Tilt Mounts
Tilt Mounts: The tilt mount portion of a portable cart is provided in a separate box labeled “PTM” and is size specific. See below for the appropriate sizes. 32” Class Televisions 42” & 46” Class Televisions PTM Boxes will contain the following items: 2- Mounting Arms 2- M6 Carriage Bolts 1- Mounting Plate... -
Page 16: U-Bolts And Mounting Plate Assembly
Assembly Manual- Post Tilt Mount U-Bolts and Mounting Plate Assembly: U-Bolt Post Saddle Top View U-Bolts should be hooked around the post and through the holes on the U-Bolt Saddles. These should be positioned near the upper cable entry hole. With U-Bolts and saddles in place, slide mounting plate over the U-bolt ends. - Page 17 U-Bolts and Mounting Plate Assembly Cont.: 1. With U-bolts threaded through the mounting plates, place stainless steel flat washers over the bolt ends. 2. Place stainless steel lock washers over bolt ends. 3. Thread black powder coated nuts over bolt ends and hand tighten. See figure 3a for suggested mounting plate placement.
-
Page 18: Tilt Mount Assembly
Assembly Manual- Post Tilt Mount Tilt Mount Assembly: Gather the following: Tilt Control Knob M6 Bolts Lock Washer ABS Washer 1. Slide the M6 bolt through the hole on the Control Arm 2. Place the ABS washer on the thread side of the bolt. 3. - Page 19 Lay blanket down on flat sturdy surface. Run hand over sur- face to make sure there are no sharp object or protrusions, when the television is laying down. Lay television down, viewing side down on blanket. nXG 3250 / nXG 4250 / nXG 4650 ount anual...
- Page 20 Assembly Manual- Post Tilt Mount Remove and set aside the 4 screws and washers as indicated with the red circles. Align Holes Secure Screws oth kNoBs Need to face the sides of the televisioN Align holes of the mounting arms with the holes on the back of the television.
- Page 21 With the help from a friend, lift the television and attach the hooks on the mounting arms to the plate on the tilt mount. Tighten knobs on arms once the tilt is set correctly for the television. Once the television is hung on the plate. Be sure to tighten the position set screw on the bottom of the mounting arm to secure the television in place.
