Summary of Contents for skyvoe NXG-32

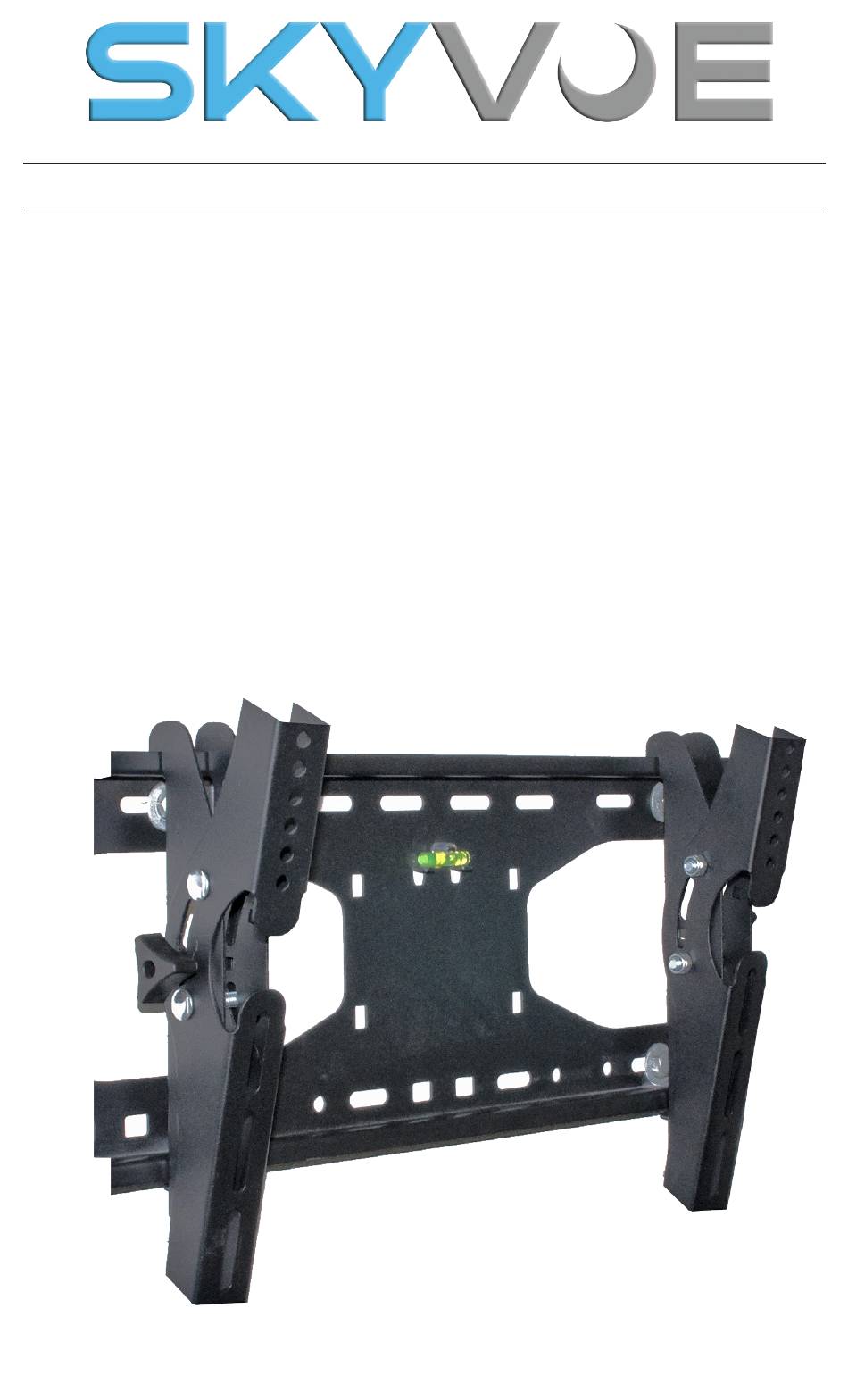

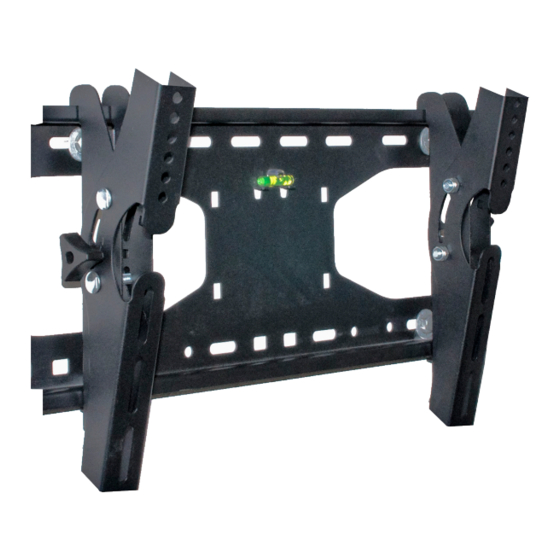

- Page 1 NXG-32 Tilt Mount Installation Manual...
-
Page 3: Tools Required For Installation
Included in the tilt mount kit: 2- Mounting Arms 2- Star Washers 1- Mounting Plate 4- 5/16”x 2 ½” Lag Screws 2- Tilt Control Knobs 4- 5/16” Lag Shields 2- M6 Carriage Bolts 4- 5/16” Flat Washers 2- Flat Washers Tools Required for Installation: Masonry Wood... - Page 4 Installation Manual - Wall Tilt Mount Gather the following: Tilt Control Knob M6 Bolts Lock Washer ABS Washer 1. Slide the M6 bolt through the hole on the Control Arm 2. Place the ABS washer on the thread side of the bolt. 3.
- Page 5 Warning: Do not plug speaker bar into A/C outlet until connections to the tele- vision have been plugged in. This will severely damage the speaker bar if not followed completely. Lay blanket down on flat sturdy surface. Run hand over sur- face to make sure there are no sharp object or protrusions, when the television is laying...
- Page 6 Installation Manual - Wall Tilt Mount Remove and set aside the 4 screws and washers as indicated with the red circles. Align Holes Secure Screws oth kNoBs Need to face the sides of the televisioN Align holes of the mounting arms with the holes on the back of the television.
- Page 7 For Anchoring Into Masonry Wood For Masonry: Set height, level, and mark drill locations on wall. With masonry bit, drill 1/2” pilot holes and hammer in lag bolt shields. Hold the plate to the wall. Make sure the plate is level. Using the 4 supplied lag bolts and washers secure plate to the wall.
- Page 8 Installation Manual - Wall Tilt Mount With the help of a friend lift the television and attach the hooks on the mounting arms to the plate on the tilt mount. Tighten knobs on arms once the tilt is set correctly for the television. Once the television is hung on the plate.
- Page 9 Congratulations you have successfully installed your tilt mount. If you have any questions feel free to contact our technical support team (877) 475-9883 option 2. nXG 32 nstallatIon anual...
- Page 10 Notes: ® All Rights Reserved. 2017 SkyVue...
